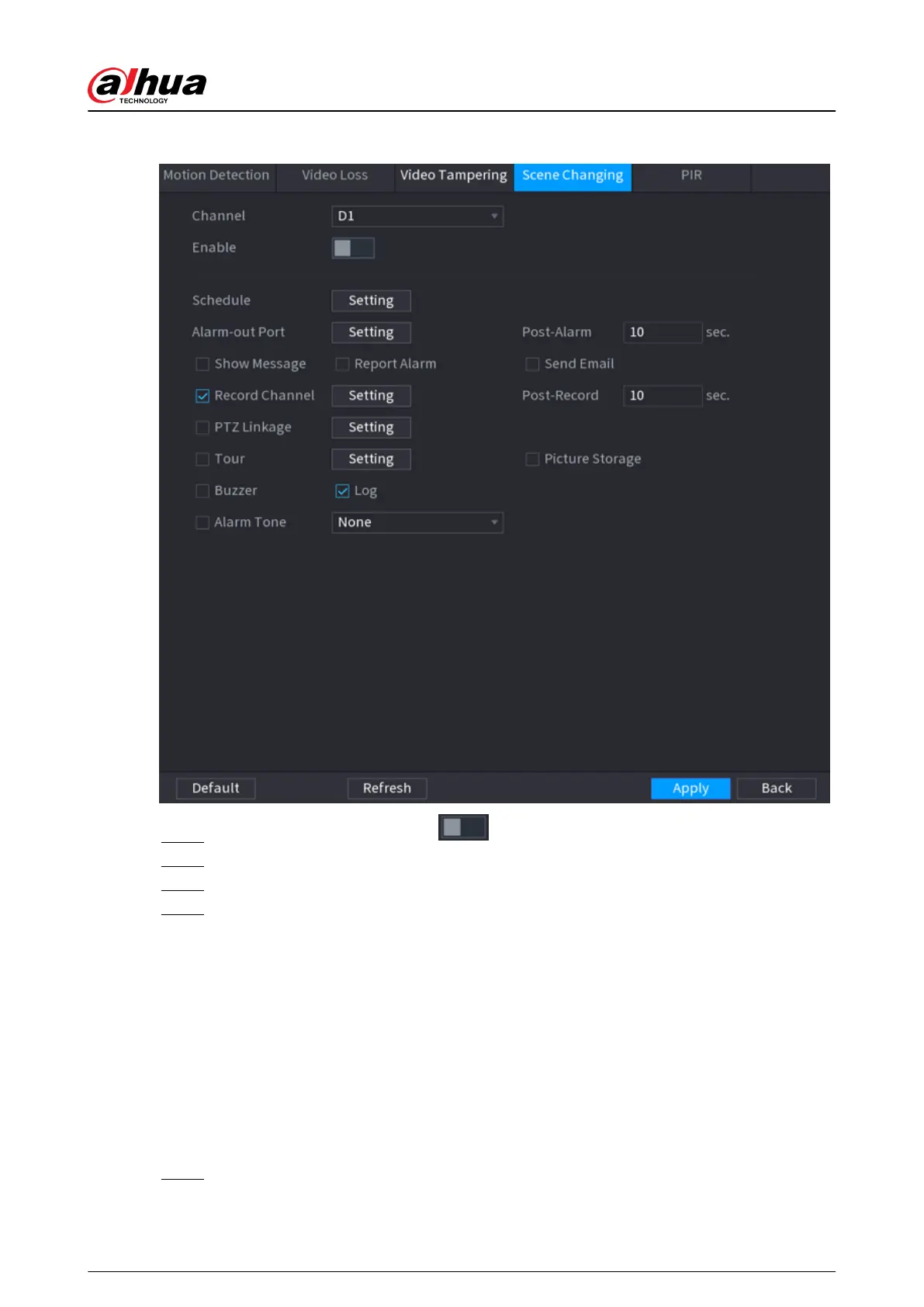

Figure 5-191 Scene changing
Step 2 Select a channel and then click to enable the function.
Step 3 Click Setting next to Schedule to conîš‚gure the alarm schedule.
Step 4 Conîš‚gure alarm linkage. For details, see Network Video Recorder_User's Manual.
Step 5 Click Apply.
5.10.5.5 PIR Alarm
Background Information
PIR function helps enhancing the accuracy and validity of motion detect. It can îš‚lter the
meaningless alarms that are activated by the objects such as falling leaves and îš…ies. The detection
range by PIR is smaller than the îš‚eld angle.
PIR function is enabled by default if it is supported by the cameras. Enabling PIR function will get
the motion detection to be enabled automatically to generate motion detection alarms.
Procedure
Step 1 Select Main Menu > ALARM > Video Detection > PIR.
User's Manual
306
