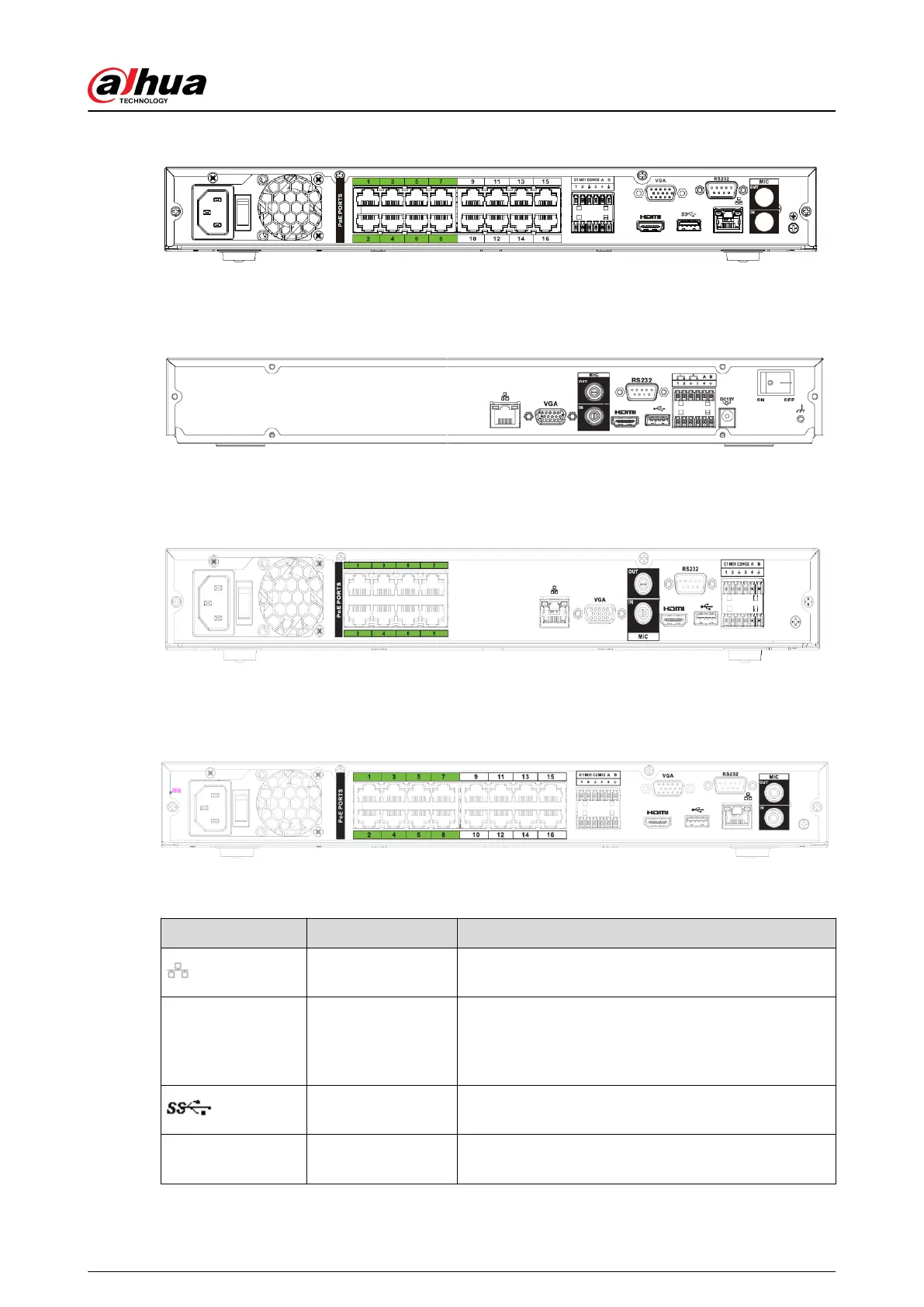

Figure 2-41 Rear panel
The NVR52-EI series rear panel is shown as below.
Figure 2-42 Rear panel
The NVR52-8P-EI series rear panel is shown as below.
Figure 2-43 Rear panel
The NVR52-16P-EI series rear panel is shown as below.
Figure 2-44 Rear panel
Table 2-18 Ports
Icon
Port Name Function
Network port
10/100/1000 Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Denition
Media Page
High denition audio and video signal output port. It
transmits uncompressed high denition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
USB port
Connect to mouse, USB storage device, USB burner
and more.
RS-232 RS-232 debug COM
It is for general COM debug to congure IP address or
transfer transparent COM data.
User's Manual
25
