288 1.3 <DTA104A61 / DTA104A62 / DTA104A53> External Control Adaptor for Outdoor Unit (Must be Installed on Indoor Units)
Adaptor

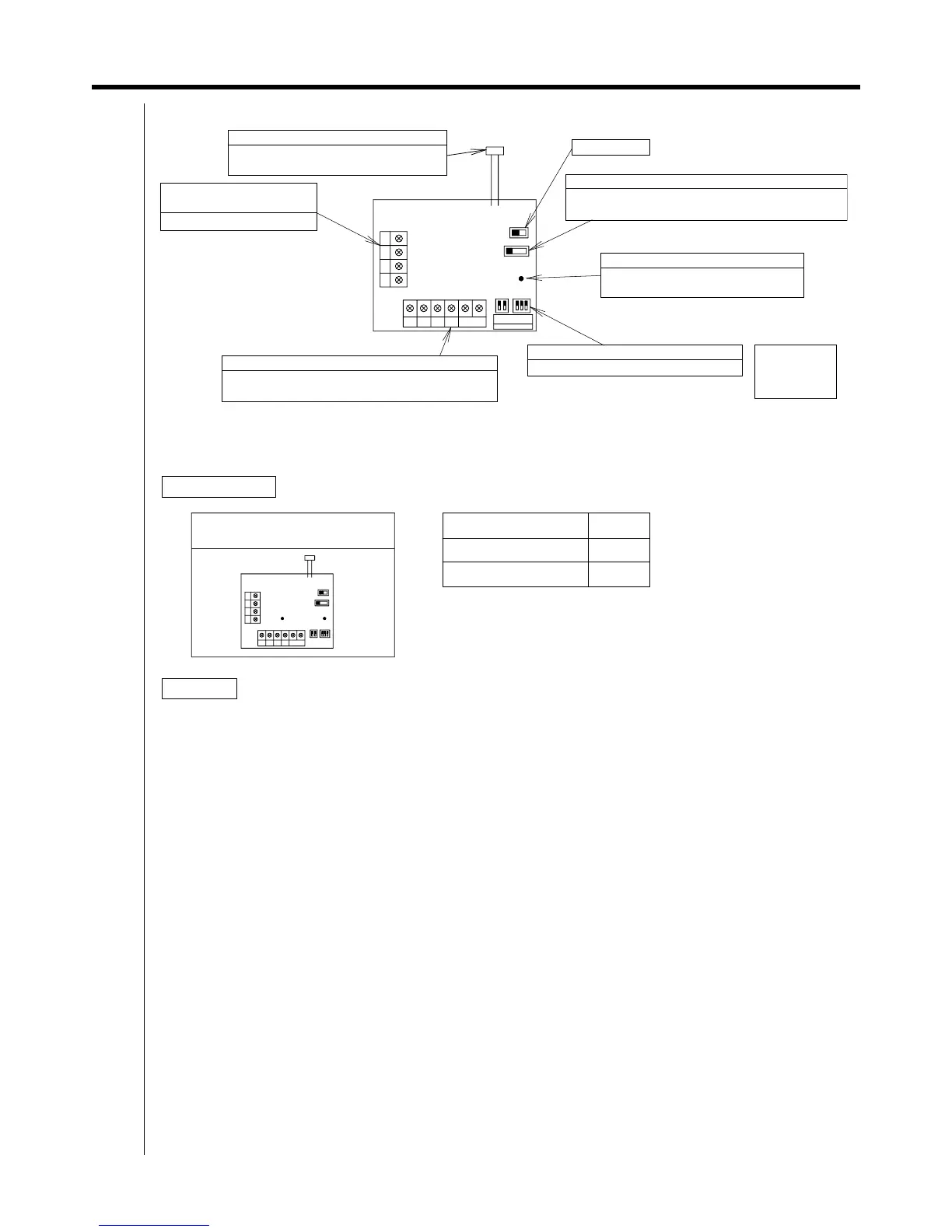

1.3.2 Part Name and Functions
1.3.3 Installation
C : 1PA63164D
Power supply connector (D1, D2)
Don
,
t move it.
Function switch (SS1)(Factory set:On)
Microcomputer normal monitor (HAP:GRN)
Address setting switch (DS1, 2)
Demand, low-noise input terminal block (X1M)
Connects control input from electrical appendices host
computer monitor panel, demand controller, timer, etc..
Sets COOL/HEAT address or demand address.
For details.
See the wiring
diagram (rear
surface).
Fickers when the microcomputer is
operating normally.
The contents of the address setting switch set the
COOL/HEAT address, demand address, or both addresses.
Terminal block for transmission
(F1, F2)
See wiring method.
F1
SS2
SS1
123CL
·
N
·
O
F2
P3
P4
To adaptor power supply connector
on indoor unit or BS unit.
FXC(Q) KRP1B96
FXF(Q) KRP1D98
FXH(Q) KRP1C93
FXA(Q) KRP4A93
FXD(Q) KRP1B101
.........................................................................
.........................................................................
.........................................................................
.........................................................................
.......................................................................
Accessories
NOTES
Check the following accessories are included in the kit before the installation.
●
The kit type (DTA104A61·51 type, DTA104A62·52 type, DTA104A53 type) varies according to
air conditioner model.
●
The installation box for adaptor PC board are required with the following air conditioner models.
External control adaptor for
outdoor unit
PC board support × 4
× 3
× 8
× 1
Clamp
Installation manual
To Next Page
