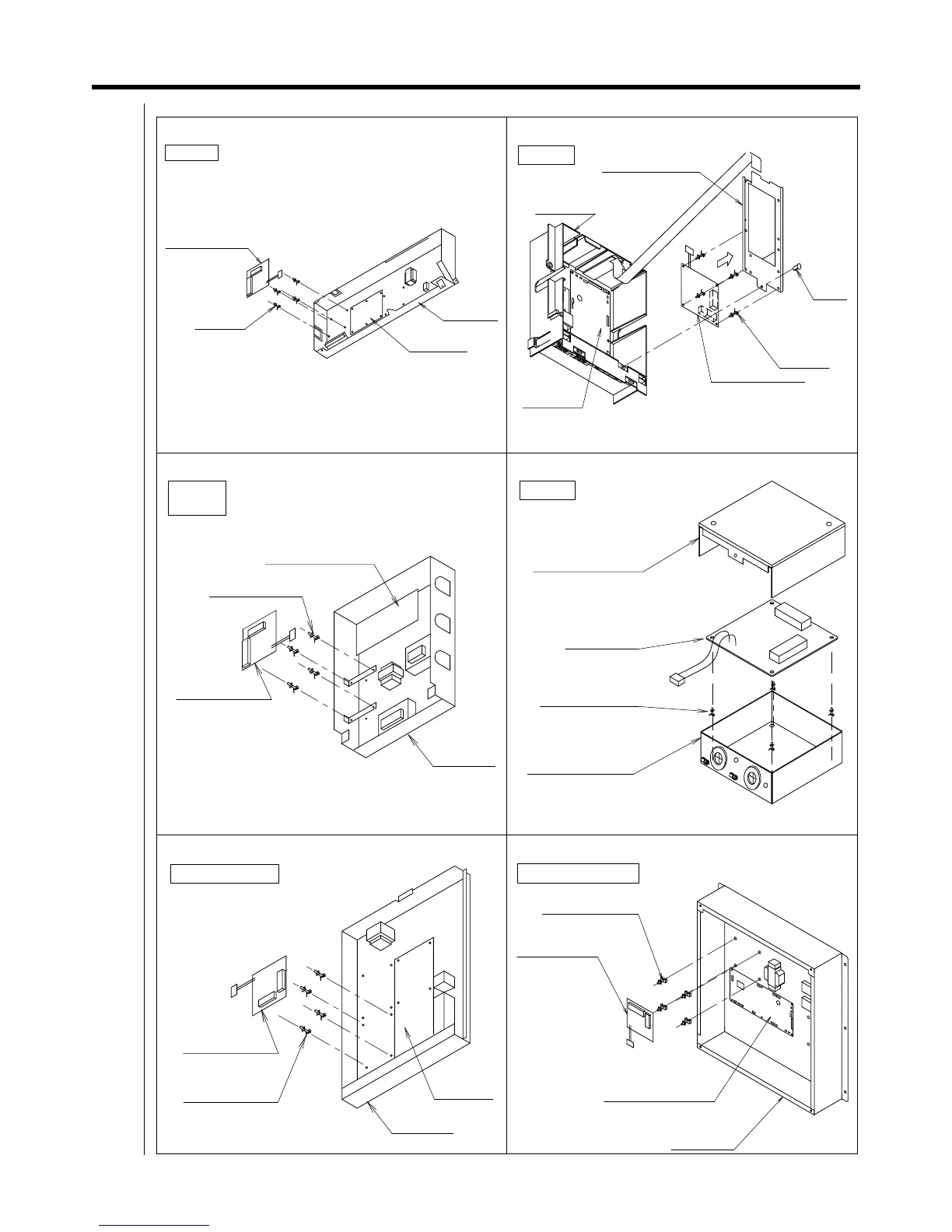

1.3 <DTA104A61 / DTA104A62 / DTA104A53> External Control Adaptor for Outdoor Unit (Must be Installed on Indoor Units) 289
Adaptor
Ceiling Mounted Cassette Corner Type Ceiling Mounted Cassette Type (Double-Flow)
Ceiling Mounted Built-In Type Slim Ceiling Mounted Duct Type
Ceiling Mounted Duct Type
Adaptor
FXK(Q)
(DTA104A61 · 51)
Indoor unit
PC board
Control box
PC board
support
Installation box for
adaptor PC board
(Option KRP1B96)
Control box
Screw
Adaptor
(DTA104A61 · 51)
PC board
support
Indoor unit
PC board
FXC(Q)
NOTE : Installation box for adaptor PC board is required
to install the adaptor.
FXS(Q)
FXYB
Adaptor
(DTA104A61 · 51)
PC board support
Indoor unit PC board
Control box
FXD(Q)
Adaptor
(DTA104A53)
Lid of installation box
(Option KRP1B101)
PC board support
(Option KRP1B101)
Installation box for
adaptor PC board
NOTE : Installation box for adaptor PC board is required to instal
l
the adaptor.
FXM(Q)40 - 125
Adaptor
(DTA104A61 · 51)
PC board support
Indoor unit
PC board
Control box
FXM(Q)200 · 250
Adaptor
(DTA104A61 · 51)
PC board support
Indoor unit PC board
Control box
