290 1.3 <DTA104A61 / DTA104A62 / DTA104A53> External Control Adaptor for Outdoor Unit (Must be Installed on Indoor Units)
Adaptor
C : 1PA63164D

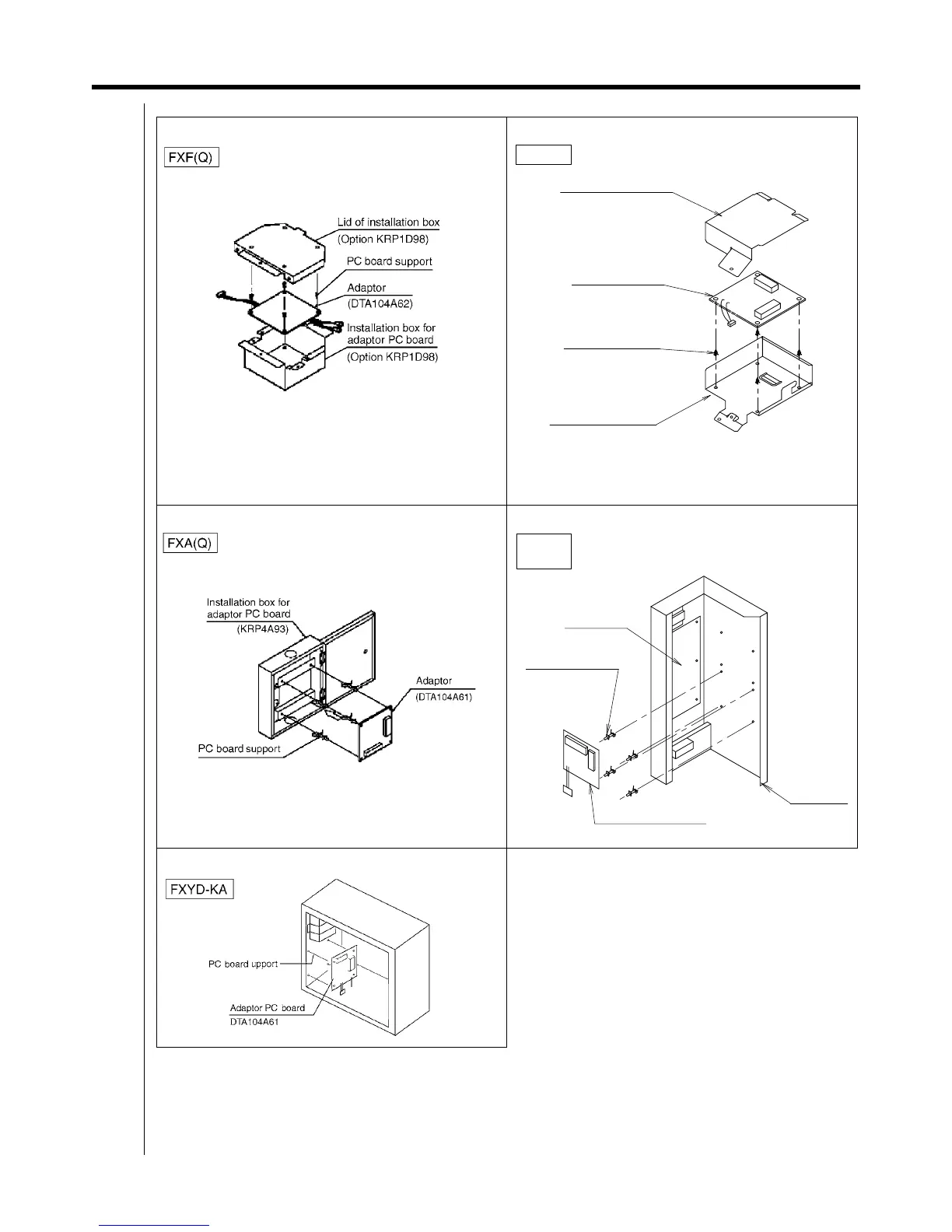

Ceiling Mounted Cassette Type (Multi-Flow)
Note:
Installation box for adaptor PC board is required to install
the adaptor.
Ceiling Suspended Type
Wall Mounted Type Floor Standing Type
Ceiling Mounted Duct Type
FXH(Q)
Lid of installation box
KRP1C93
(Optional accessory)
KRP1C93
(Optional accessory)
Adaptor
(DTA104A62 · 52)
Installation box for
adaptor PC board
PC board support
NOTE : Installation box for adaptor PC board is required
to instsll the adaptor.
FXL(Q)
FXN(Q)
Indoor unit
of PC board
PC board support
Control box
Adaptor
(DTA104A61 · 51)
