306 1.5 Dio Unit (DEC102A51)
Adaptor
DEC102A51 DEC102A51
DEC102A51 DEC102A51
40 40
325
40
40
80
Fix the DEC102A51
firmly with the installation
screws (M4)
140
(To Remove Front Panel: )
"Electric Wiring Connection", "Wiring Specification" and "Initial Setting" should be performed with
the front panel removed. The front panel can be removed by detaching 2 front panel screws shown in the
figure above and sliding it lightly to the upper side. Upon completion of all wiring connections and setting
operations, close the front panel as it was and screw it firmly.

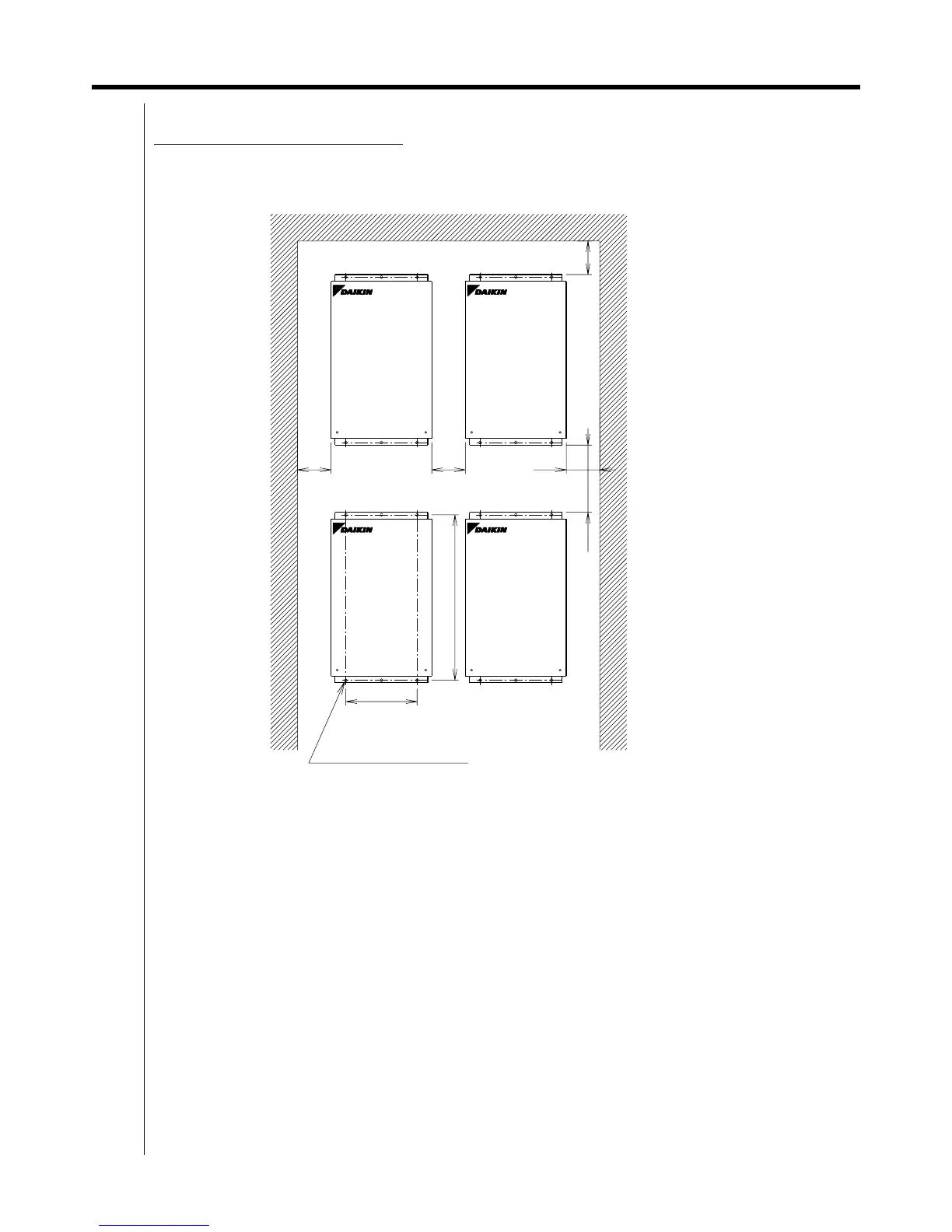

In case where several devices are set up and installation inside the power board is carried out, each
equipment installation space and space between the wall surface and this equipment should be left at
least as shown below.
Restrictions in Continuous Installation
To Next Page
