 WARNING
LIFTING HEAVY LOAD
Not following the safe lifting instructions can result in death or serious injury and damage to the equipment.
l Follow local safety regulations on lifting.
l Use a lifting device that is in proper working condition and appropriate for the weight of the load.
l Test lift the load to verify the proper center of gravity. Reposition the lifting point if not level.
l Do not walk under, or place any part of your body under a suspended load.
 WARNING
SWINGING HAZARD DURING LIFTING
The swing effect can cause serious injury and damage to the equipment. It occurs when lifting the product into a vertical position,
just before the product reaches vertical position, when the center of gravity of the product surpasses the floor support point.
l Make sure that the lifting ropes are properly attached.
l Secure the lifting area.
l Lift the product slowly and carefully.
1. Remove the package from the drive.
2. If the drive is delivered horizontally, lift it to an upright position.
a. Put the lifting hooks in the 2 front lifting loops on the top of the cabinet.
The minimum lifting angle is 60°.
b. Lift the drive to an upright position.

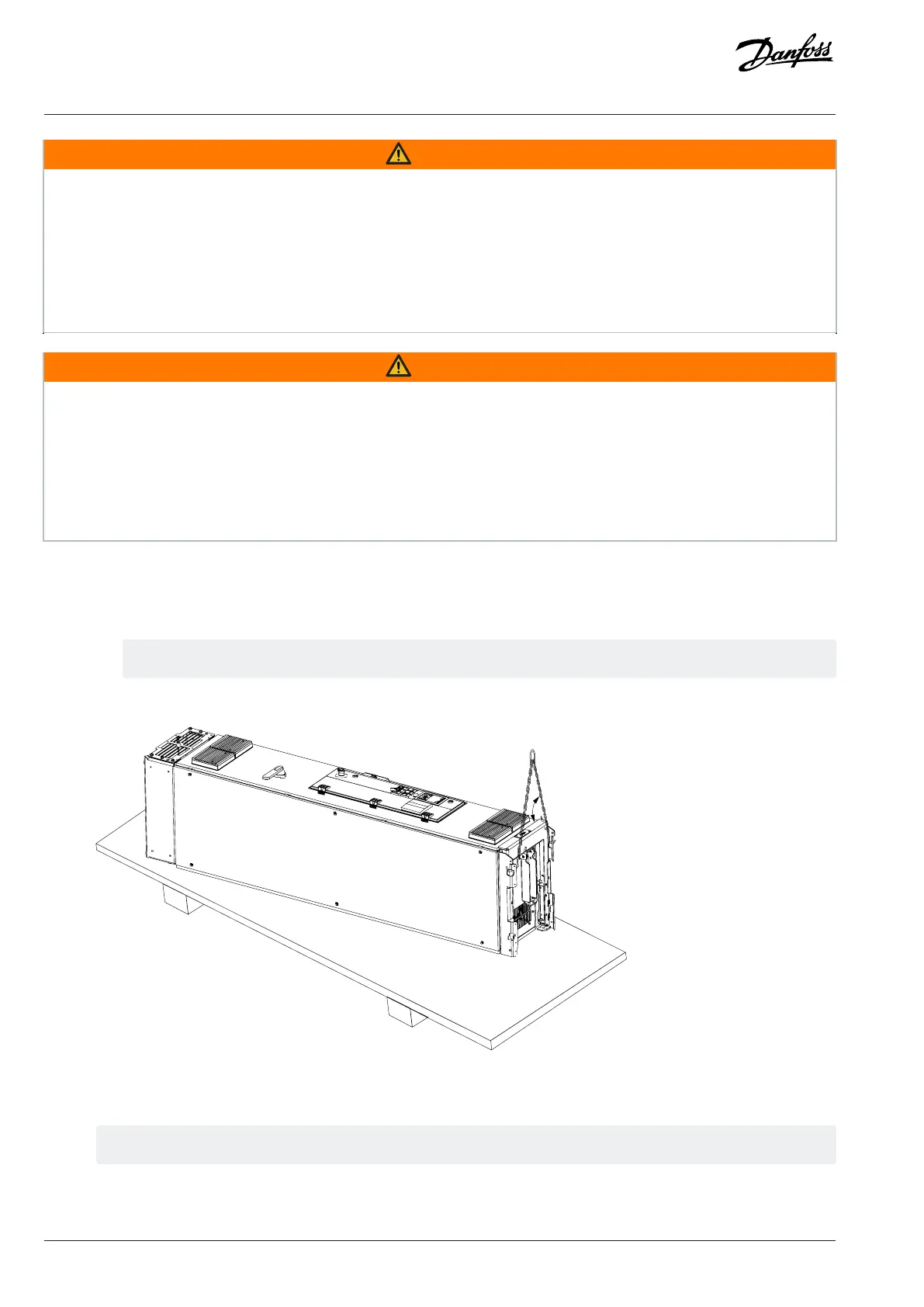

e30bj441.12
>60°
Figure 10: Lifting the Enclosed Drive to an Upright Position
3. Put the lifting hooks in the 4 lifting loops on the top of the cabinet.
The minimum lifting angle is 60°.
