Design Guide | iC7-Automation Air-cooled Enclosed Drives Electrical Installation
6.5
Prerequisites for Cable Installation
l Before starting, make sure that none of the components of the AC drive are live. Read all safety precautions in this guide and other
documents available for this product.
l Make sure that the motor cables are sufficiently far from other cables.
l The motor cables must across other cables at an angle of 90°.
l If possible, do not route the motor cables in long parallel lines with other cables.
l If the motor cables are in parallel with other cables, obey the minimum distances (see
Table 11).
l The distances are also valid between the motor cables and the signal cables of other systems.
l The maximum length of shielded motor cables is 150m (492ft). If the used motor cables are longer, contact the vendor for more
information.
l Check the maximum cable length of the filters.
l Only use symmetrical and shielded motor cables.
l Check the insulation resistance of cables if necessary.
Table 11: Minimum Distances from Motor Cables to Other Cables
Distance to other cables [m (ft)] Length of the shielded cable [m (ft)]
0.3 (1.0) ≤ 50 (164)
1.0 (3.3) ≤ 150 (492)
2
3
1
4
5
6
7
8
9
11
13
10 10
14
16
12
R- R+
15

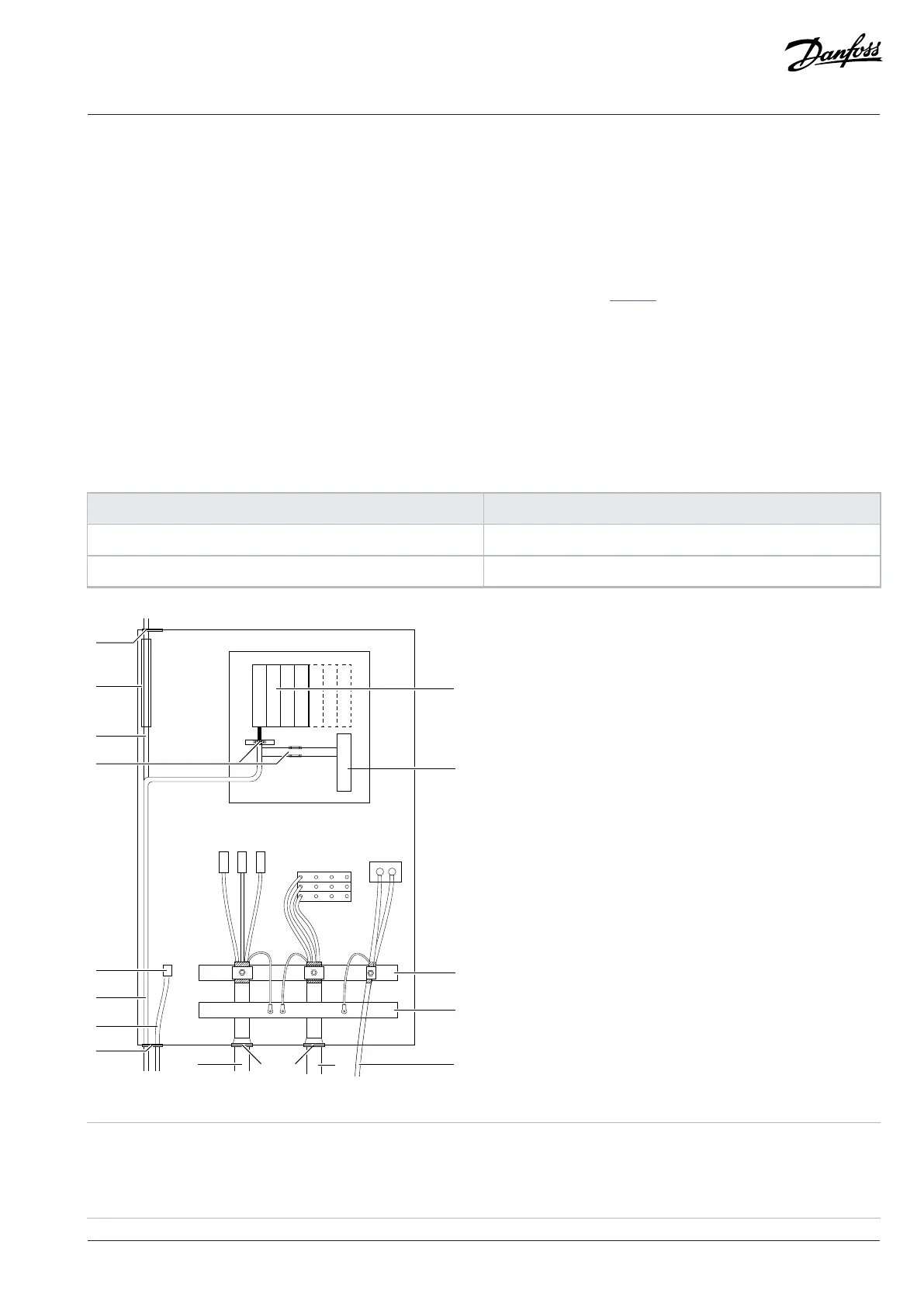

Figure 23: Cabling Principle
1 Control cable grommet 2 Cable installation tubes, 2 pcs, diameter 32 mm (1.3 in)
3 Control cables from the top 4 Strain relief and cable grounding
5 Auxiliary power terminals 6 Control cables from the bottom
Danfoss Drives Oy © 2024.09 AJ389643274589en-000101 / 172F6409A | 41
