4.1 The Air-cooled Enclosed Drives
The enclosed drives come in 6-pulse, low-harmonic, and regenerative variants. The control compartment on the cabinet door gives easy
access to the control. The air-cooled enclosed drives have high power density because of efficient cooling solutions.
The integrated service table is used for maintenance.
The protection rating of the products is IP21 or IP54. The enclosed drives can withstand a wide range of ambient temperatures and
altitudes.
4.2 Interior Views of the Products
4.2.1 Interior View of the Cabinet, FE9
9
10
B
A
e30bl813.10
11
1
2
3
4
5
6
7
8

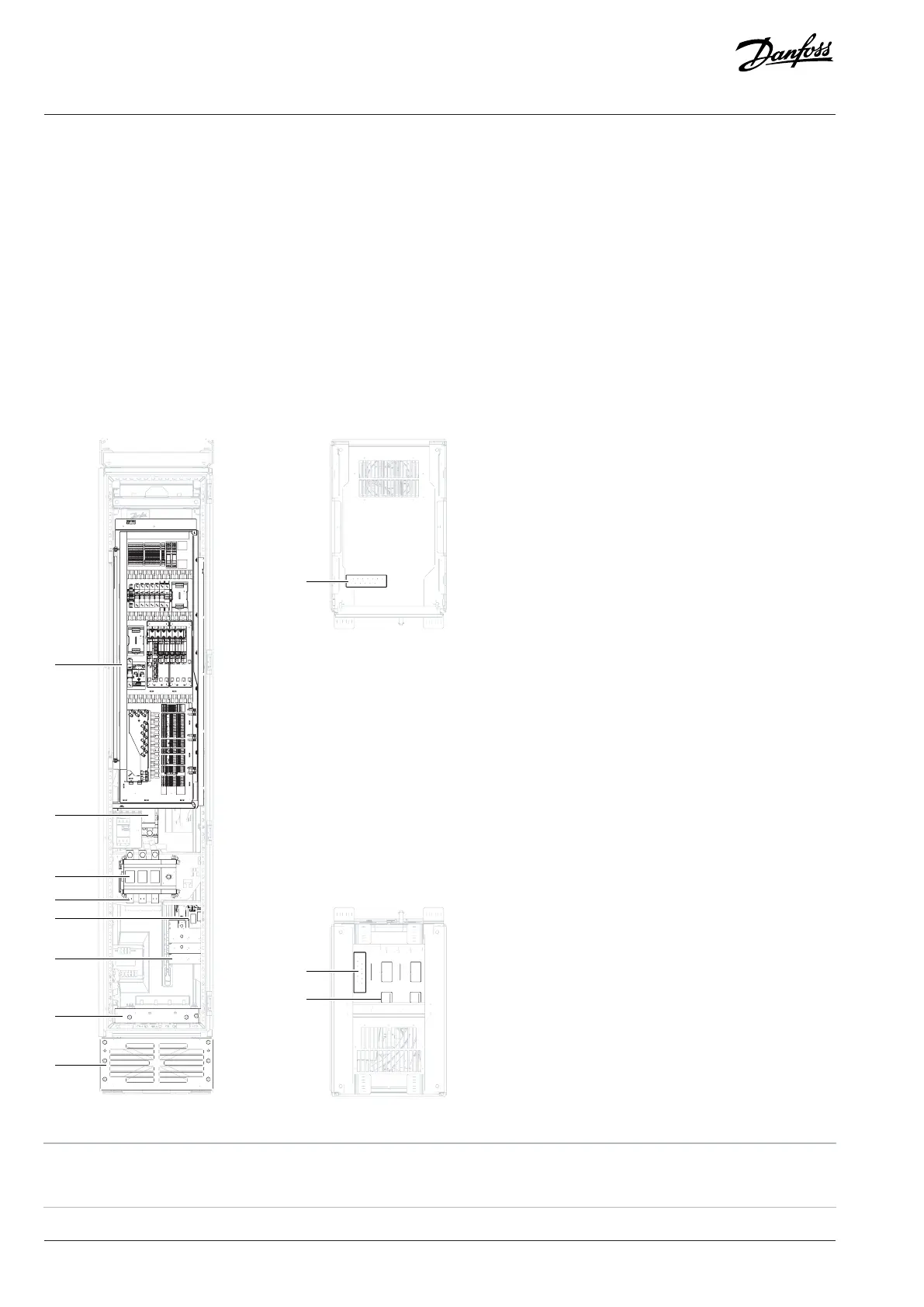

Figure 1: Interior View of FE9
1 Control compartment 2 Contactor
3 Main switch (optional) 4 Mains terminals
