5.6.3 Cooling Options
The enclosed drives have two cooling options, the back-channel cooling (+OABC) and the cooling air output flange (+OAOF). In the
cooling air output flange, the front and rear plates of the plinth are interchangeable, so the air intake can be in the front or at the back.
e30bj467.11

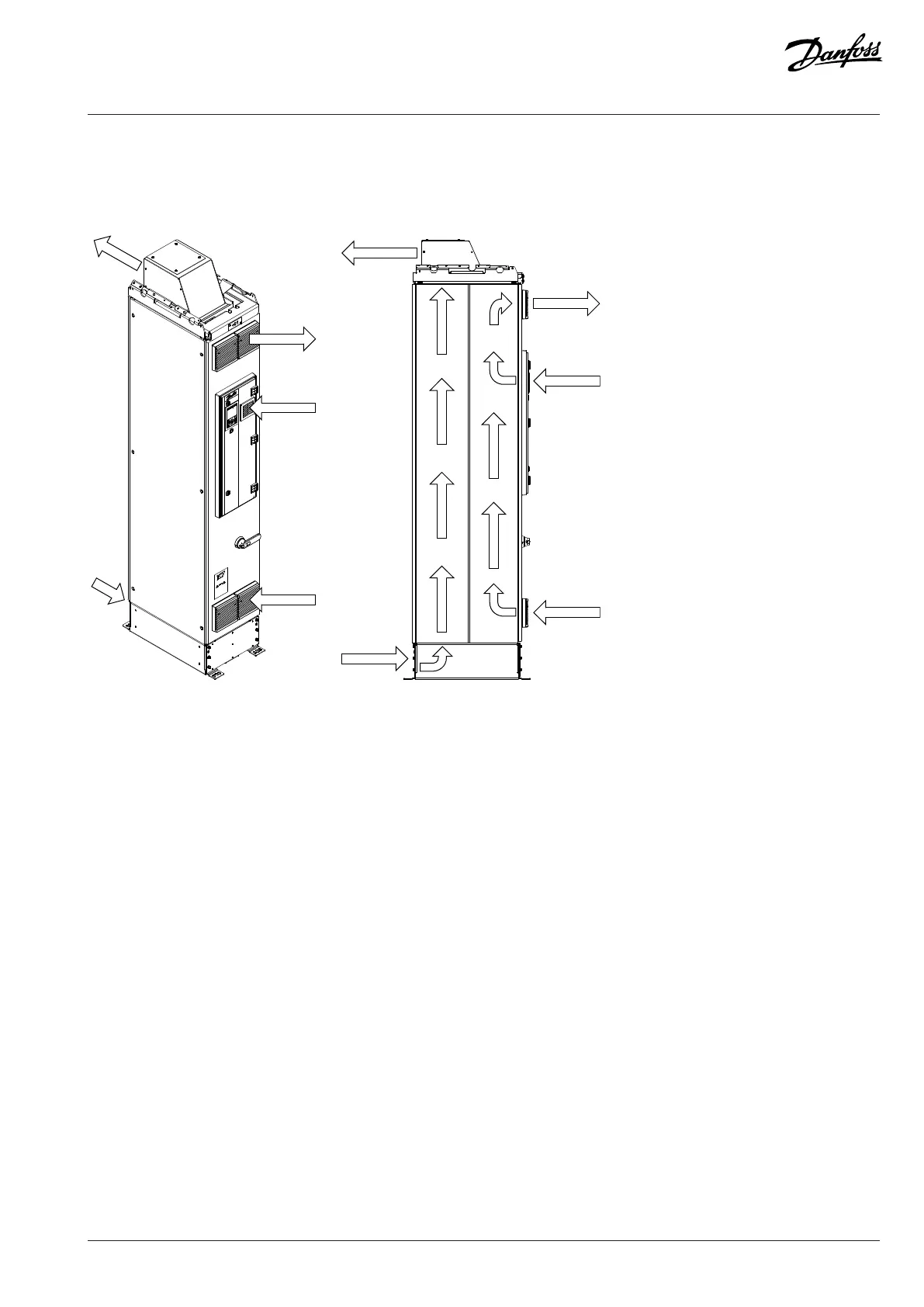

Figure 16: Back-channel Cooling (+OABC), Intake Back, Output Back
