9.2.4 Dimensions for Default Cooling, FE9
400
(15.75)
200
(7.87)
225
(8.86)
126.5
(4.98)
100.5
(3.96)
207
(8.15)
71.3
(2.81)
e30bj528.12
1

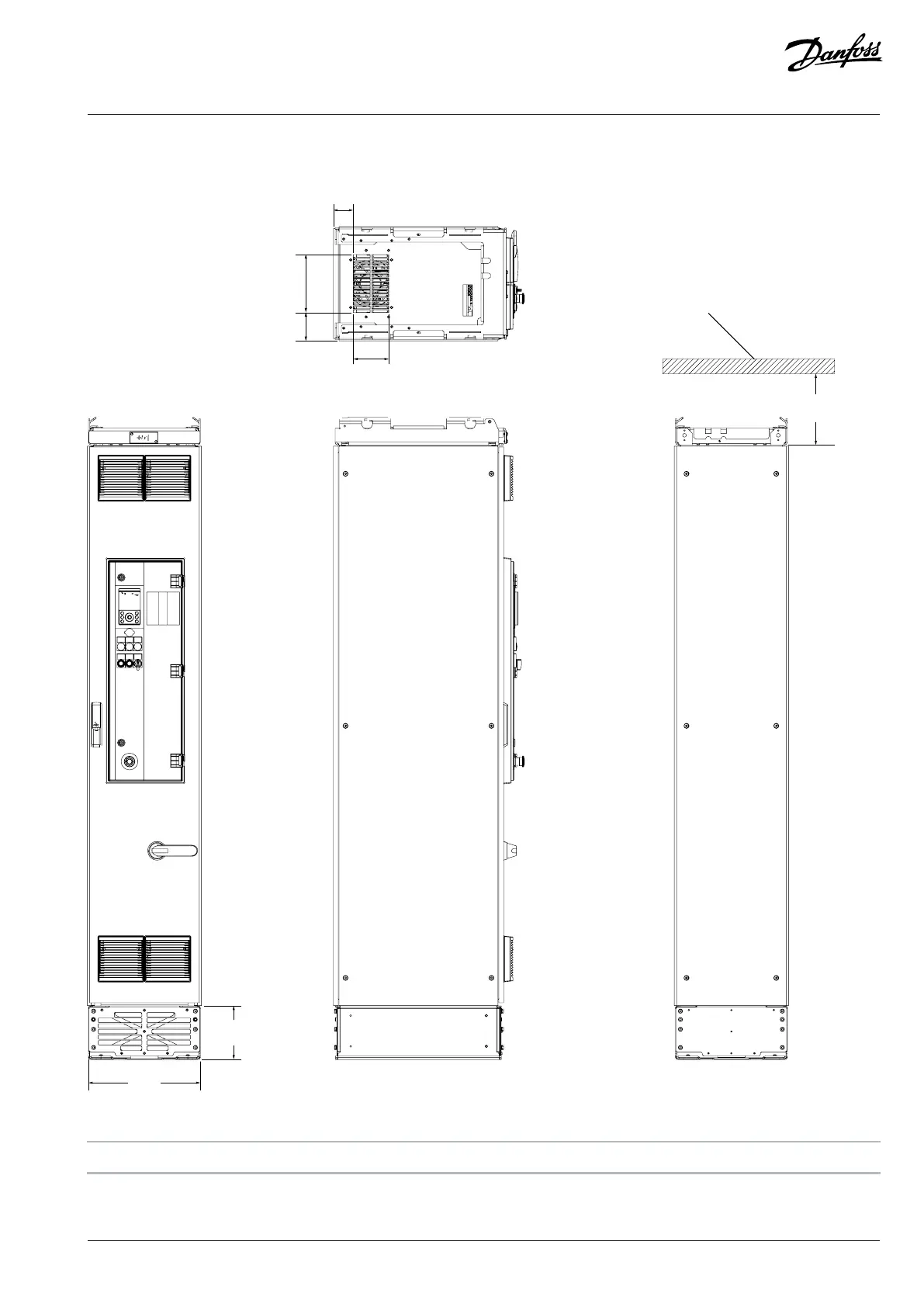

Figure 55: Dimensions for Default Cooling, FE9, in mm (in)
1 Roof
