9.2.9 Dimensions for Back-channel Cooling Option, AE10, AE11, IE10, IE11
e30bk078.10
Ø 200
(7.87)
200
(7.87)
2322
(91.41)
2450
(96.45)
103
(4.05)
W4
W
W5 W6 W7
Ø165
(64.96)
Ø 4.5
(0.17)
W3W2W1
53
(2.08)

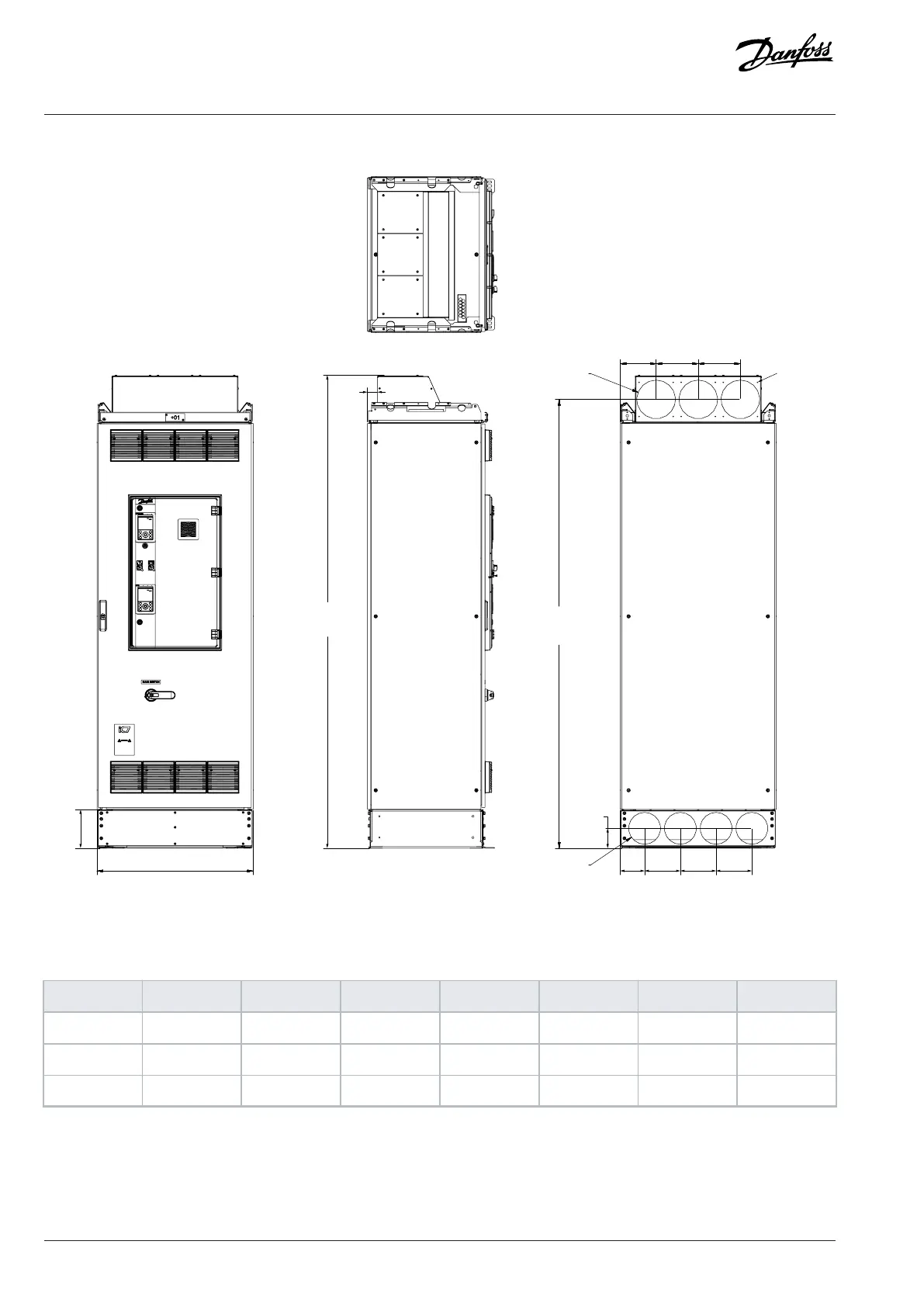

Figure 60: Dimensions for Back-channel Cooling (+OABC), AE10, AE11, IE10, and IE11, in mm (in)
Table 35: Dimensions in mm (in)
W W1 W2 W3 W4 W5 W6 W7
408 (16.1) 204 (8.0) – – 117 (4.6) 174 (6.9) – –
608 (23.9) 192 (7.6) 225 (8.9) – 123 (4.8) 180 (7.1) 180 (7.1) –
808 (31.8) 186 (7.3) 218 (8.6) 218 (8.6) 126 (5.0) 185 (7.3) 185 (7.3) 185 (7.3)
