9.2.11 Dimensions for the Cooling Air Output Flange Option, FE10
e30bj533.10
200
(7.87)
2441
(96.10)
Ø 200
(7.87)
171
(6.73)
Ø 4.5
(0.17)
W1
W
W2

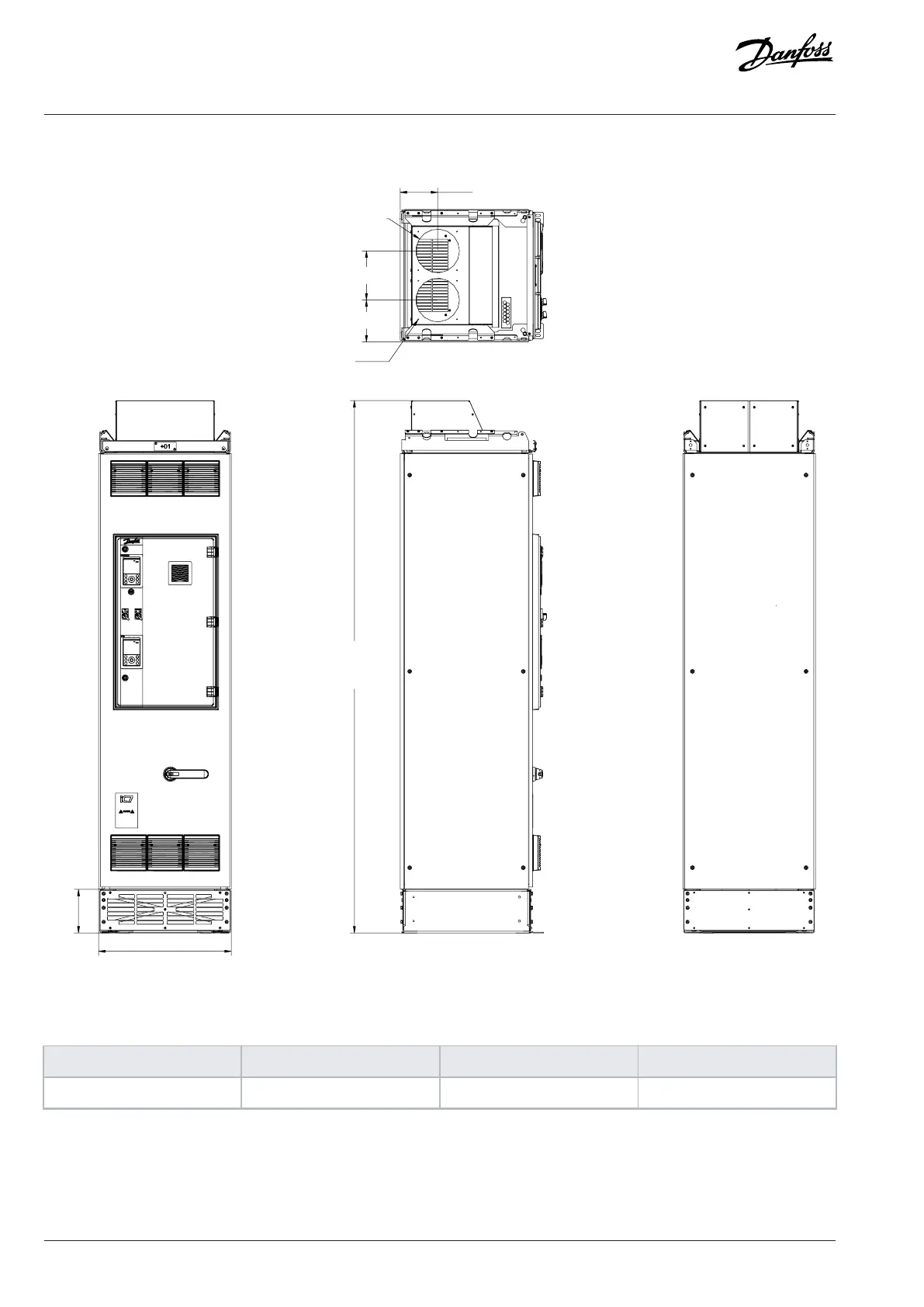

Figure 62: Dimensions for the Cooling Air Output Flange (+OAOF), FE10, in mm (in)
Table 37: Dimensions in mm (in)
W W1 W2 W3
608 (23.9) 192 (7.6) 225 (8.9) –
