9.2.10 Dimensions for the Cooling Air Output Flange Option, FE9
e30bj530.10
2441
(96.10)
200
(7.87)
W
171
(6.73)
W1
Ø 200
(7.87)
Ø 4.5
(0.17)

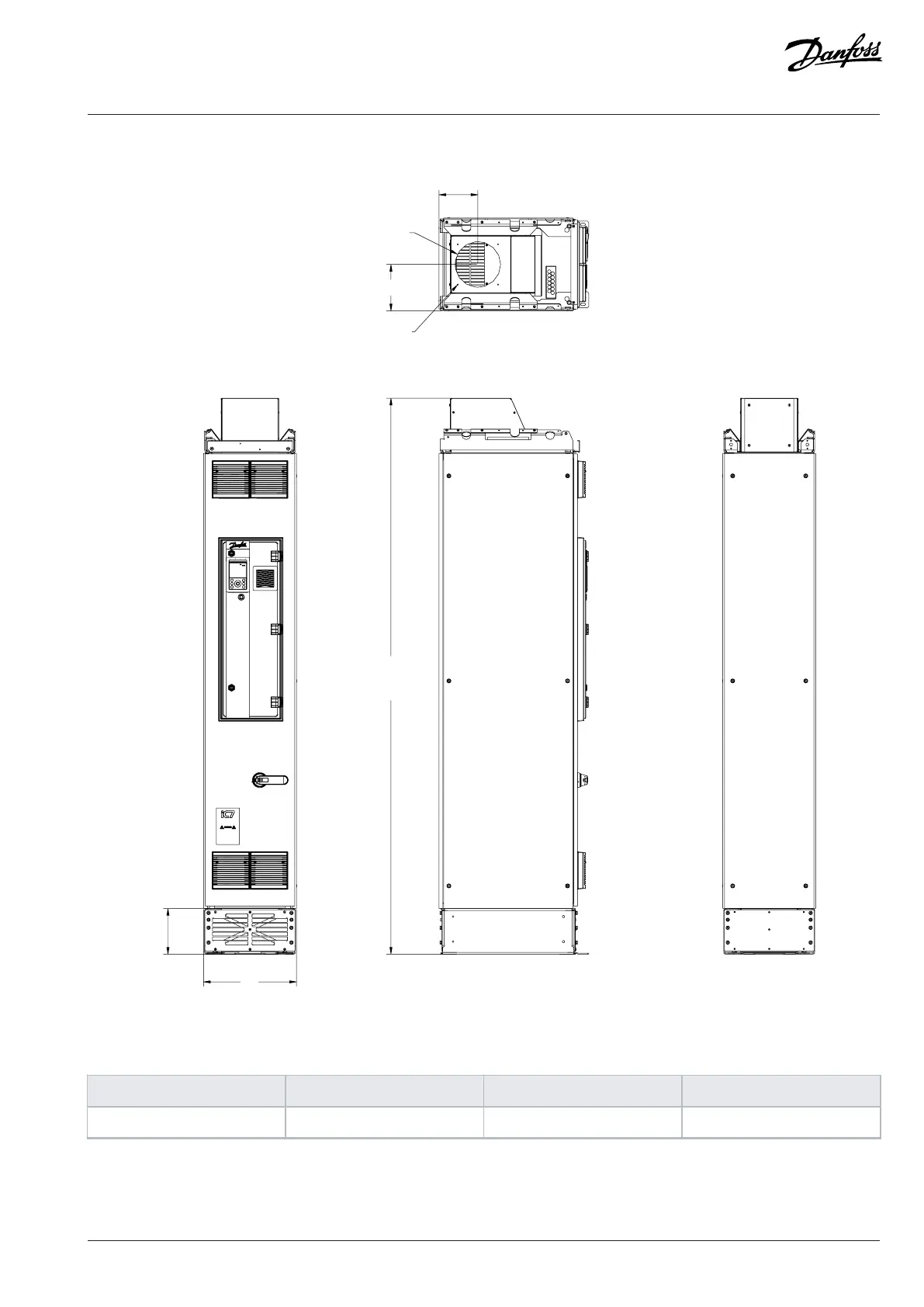

Figure 61: Dimensions for the Cooling Air Output Flange (+OAOF), FE9, in mm (in)
Table 36: Dimensions in mm (in)
W W1 W2 W3
408 (16.1) 204 (8.0) – –
