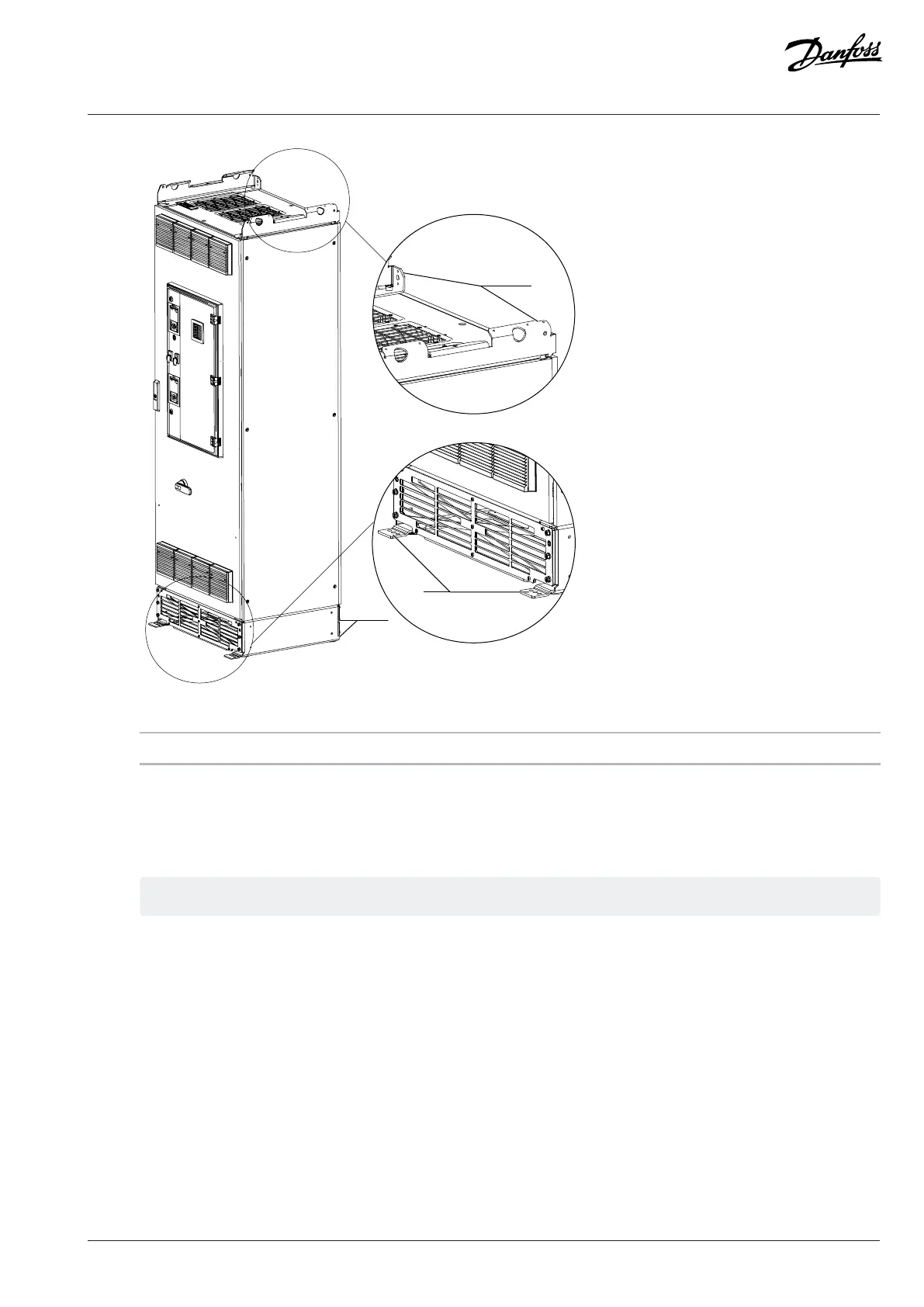

Figure 12: Installing the Enclosed Drive, FE9, FE10
1 Mounting holes at the top 2 Mounting holes at the bottom
5.4 Installing the Enclosed Drives Back to Back
The enclosed drives can be installed back to back with other enclosed drives.
1. When installing enclosed drives back to back, leave a minimum of 100 mm (3.94 in) space between them.
Use a spacer between the enclosed drives, for example a steel tube.
