Table 7: Air Flow of Different Fans of the Cabinet (continued)
Cabinet
Main cooling channel [m
3
/hr (cfm)] Auxiliary cooling channel [m
3
/hr (cfm)]
2 x AE10, 2 x IE10 5520 (3246) 2530 (1489)
2 x AE11, 2 x IE11 5520 (3246) 2745 (1615)
5.6.2 Default Cooling
Airflow in the default cooling of the enclosed drives is intake in the front, output at the top. Make sure that there is sufficient free space
above the cabinet. The minimum space includes the lifting bars on top of the cabinet. Also make sure that there are no obstacles that
can stop the airflow.
Table 8: Minimum Space above the Cabinet
Drive Minimum space above the cabinet [mm (in)]
FE9, FE10 225 (8.9)
AE10, AE11, IE10, IE11 200 (7.9)
e30bj466.11

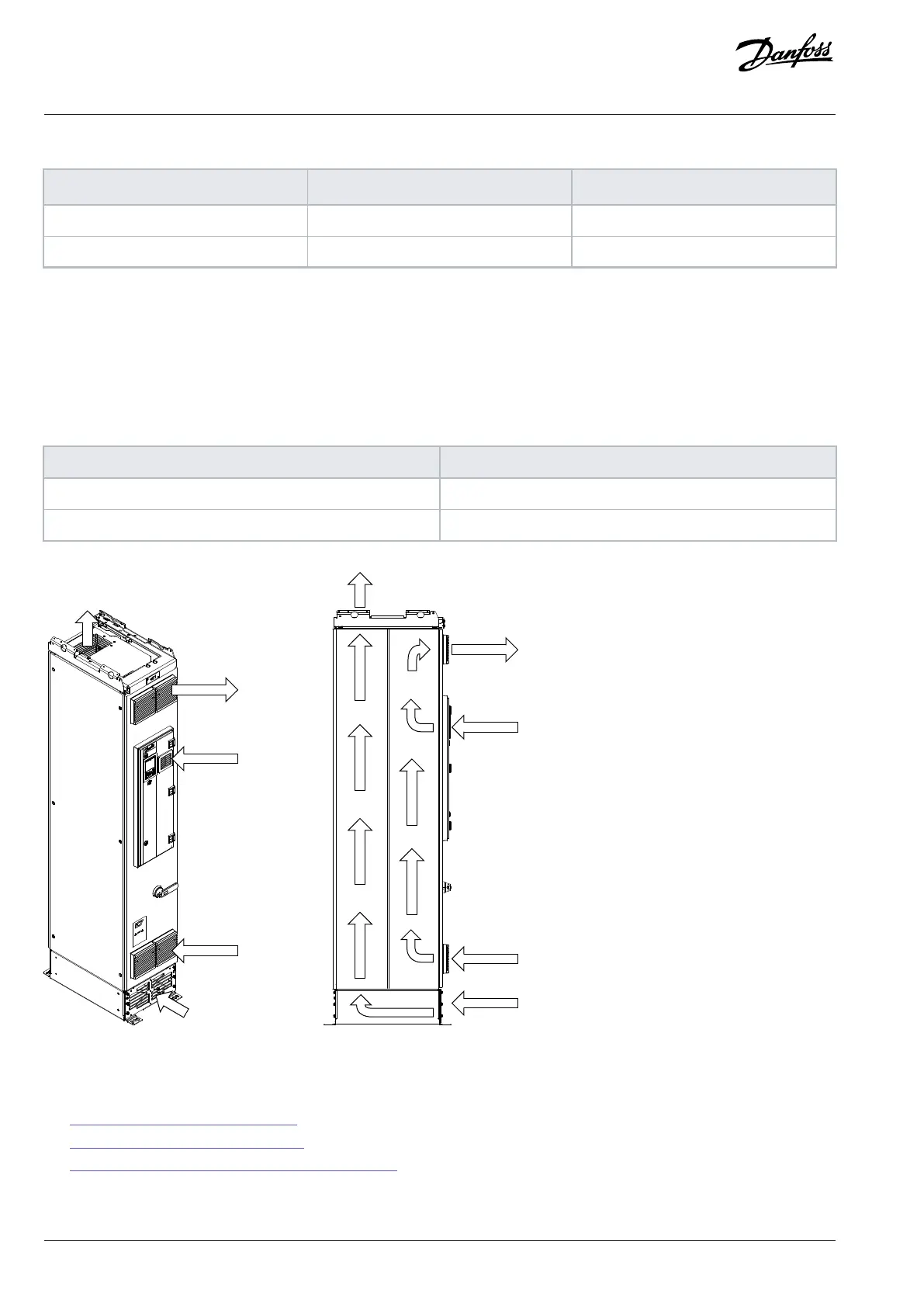

Figure 15: Airflow in Default Cooling of the Enclosed Drives
See the dimensions of the default cooling:
l
9.2.4 Dimensions for Default Cooling, FE9
l 9.2.5 Dimensions for Default Cooling, FE10
l 9.2.6 Dimensions for Default Cooling, AE10, AE11, IE10, IE11
