9.2.12 Dimensions for the Cooling Air Output Flange Option, AE10, AE11, IE10, IE11
e30bk079.10
200
(7.87)
2441
(96.10)
Ø 200
(7.87)
171
(6.73)
Ø 4.5
(0.17)
W1
W
W2
W3

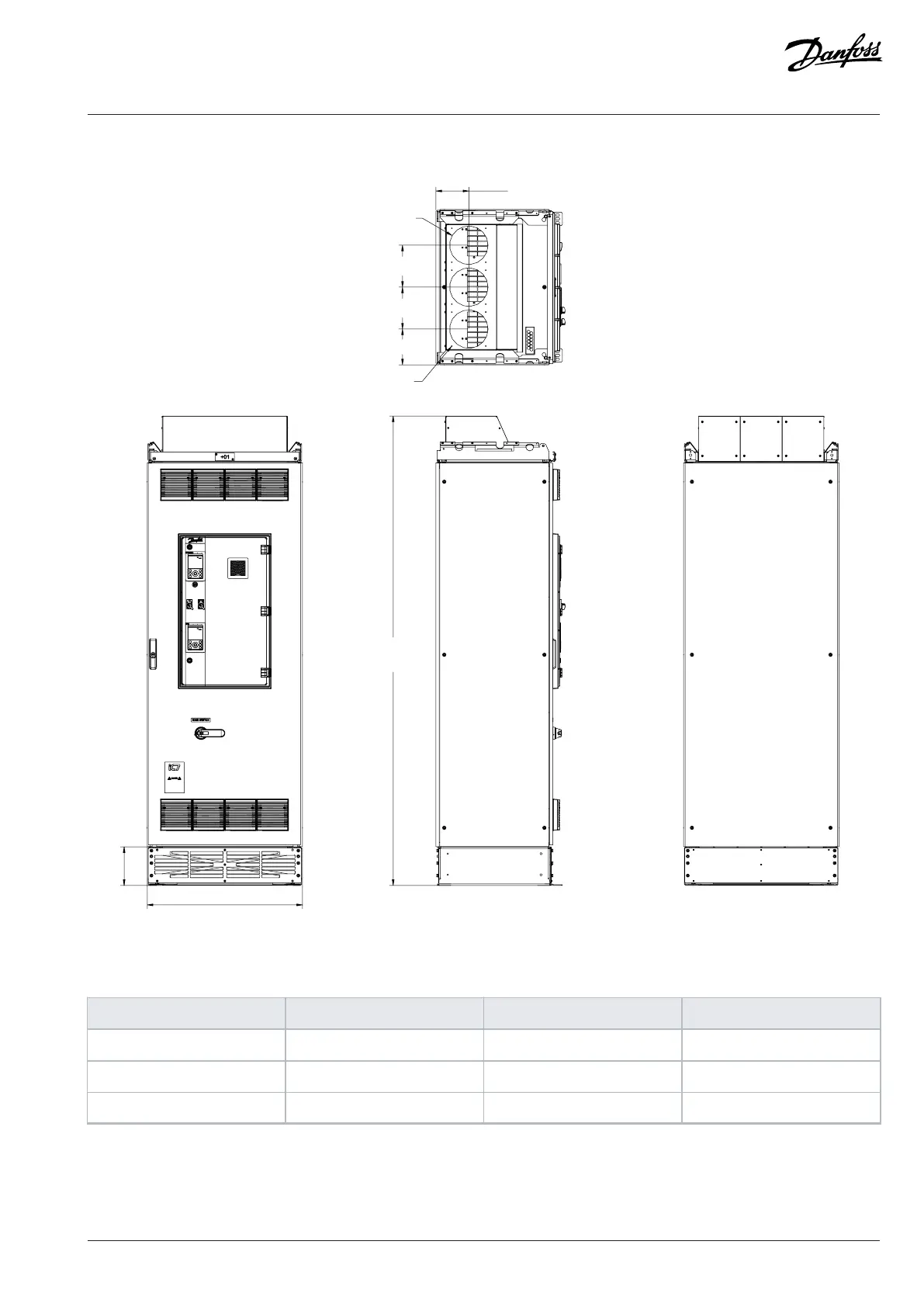

Figure 63: Dimensions for the Cooling Air Output Flange Option (+OAOF), AE10, AE11, IE10, and IE11, in mm (in)
Table 38: Dimensions in mm (in)
W W1 W2 W3
408 (16.1) 204 (8.0) – –
608 (23.9) 192 (7.6) 225 (8.9) –
808 (31.8) 186 (7.3) 218 (8.6) 218 (8.6)
Danfoss Drives Oy © 2024.09 AJ389643274589en-000101 / 172F6409A | 89
