Design Guide | iC7-Automation Air-cooled Enclosed Drives Electrical Installation
7. To make a 360° connection, expose the shield of the cables. Use a cable tie to attach the knitted metal mesh tube.
A B C
2
4
3
1
2
4
3
5
1
2
4
3
5
1
6
7
e30bj583.11

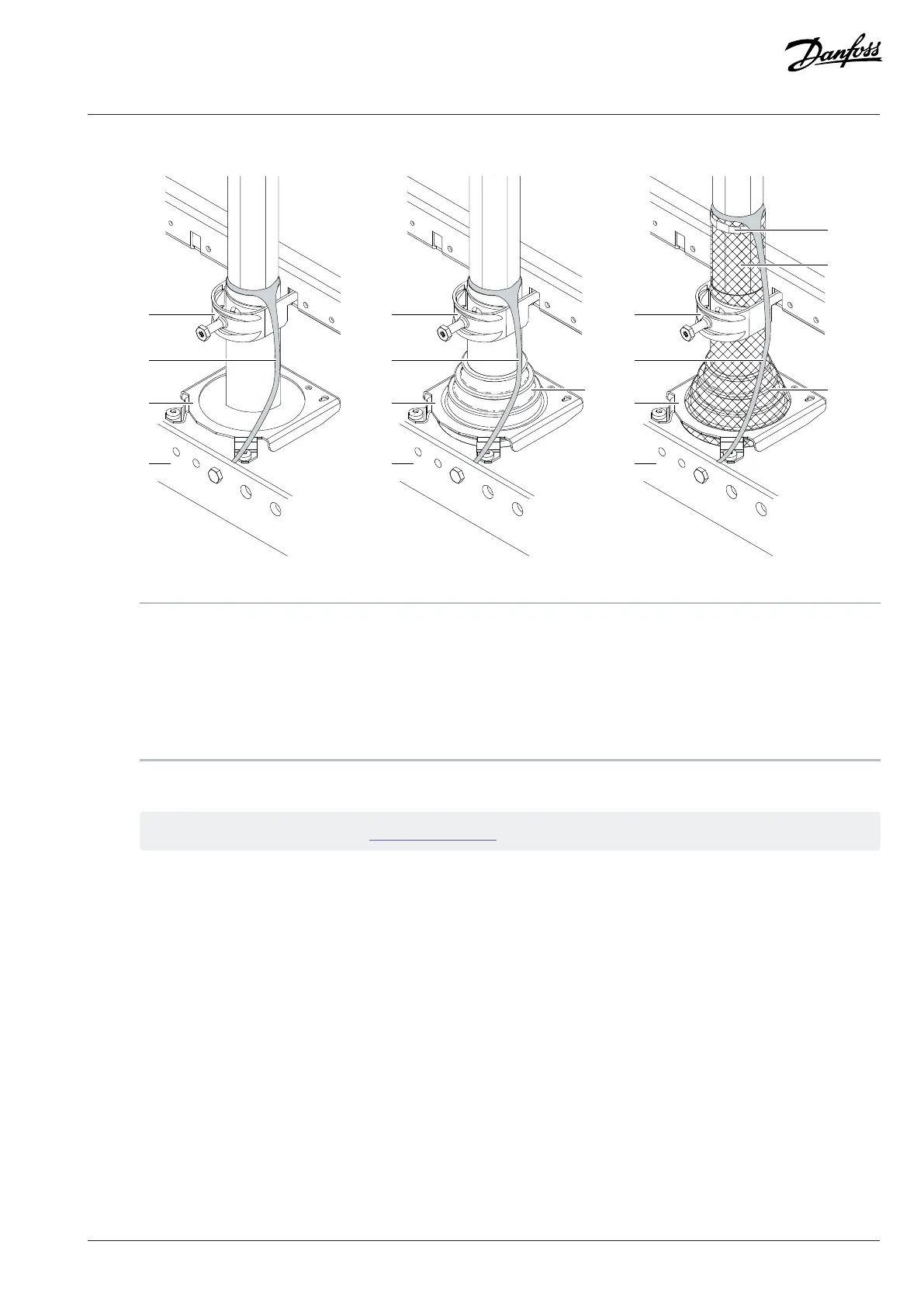

Figure 25: Cabling Methods (IEC)
1 PE busbar 2 Grommet holder
3 Cable shield 4 Cable clamp
5 Grommet 6 Knitted metal mesh tube
7 Cable tie A IP21
B IP54 C EMC 360° (IP54 and knitted metal mesh tube)
8. Connect the mains cables to the terminals L1, L2, and L3, and the motor cables to the terminals U, V, and W.
See the correct tightening torques in 9.1 Tightening Torques.
9. Connect the grounding conductors to the PE busbar.
Danfoss Drives Oy © 2024.09 AJ389643274589en-000101 / 172F6409A | 43
