Design Guide | iC7-Automation Air-cooled Enclosed Drives Control and Option Installation
1
2
3
4
5
6
7
8
9
11
13
14
15
16
17
10
12
e30bk046.11

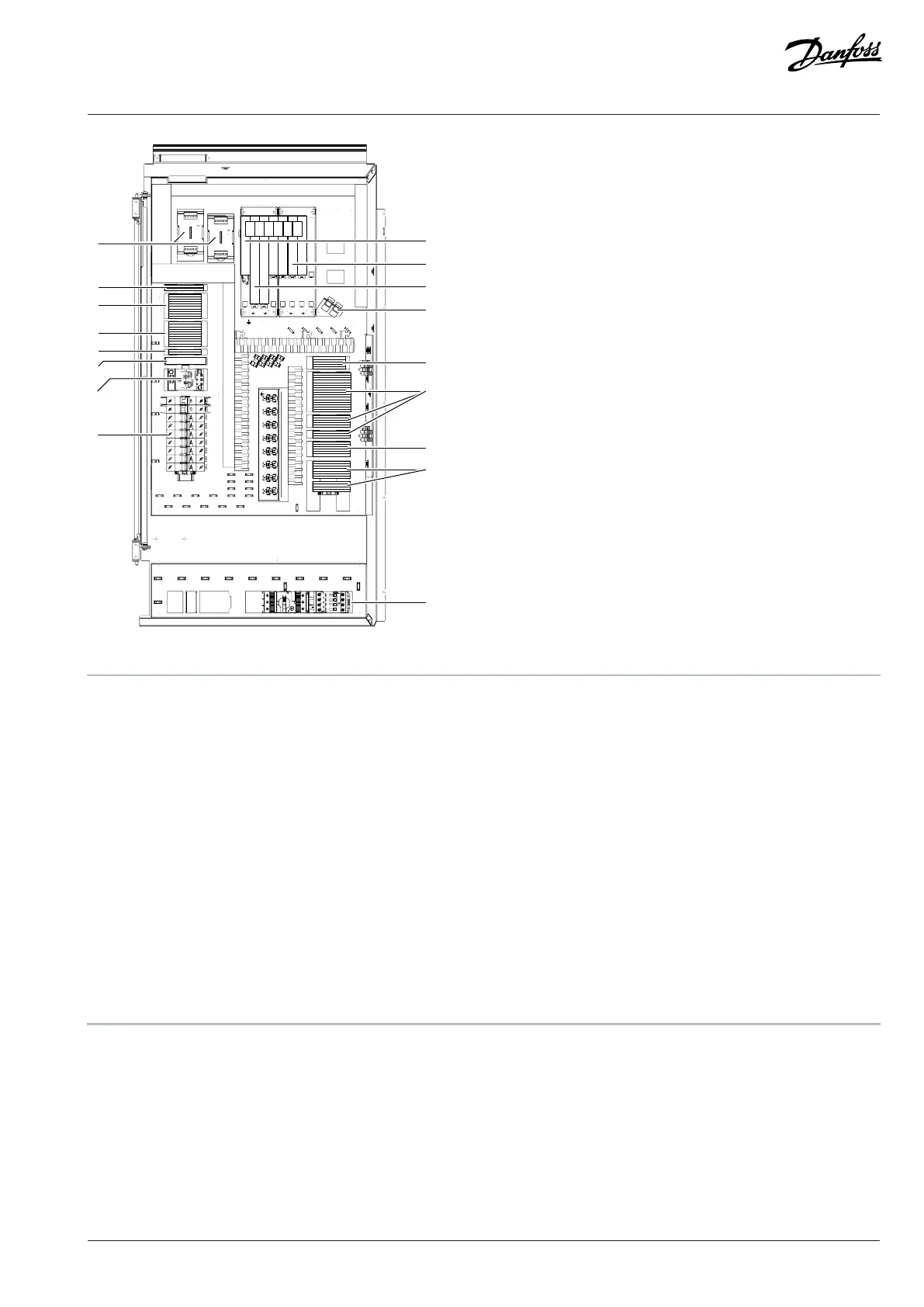

Figure 33: Elements inside the Control Compartment, FE10
1 24 V DC power supply (TB7, TB7.1) 2 Grounding terminals, -PE
3 Mains contactor terminals (+GACO), -XD0 4 Auxiliary AC supply terminals (+IHAS), or auxiliary AC
voltage transformer terminals (+IHAT), -XD1
5 Terminals for the cabinet heater option (+IBCH), -XD4 6 Auxiliary relay (+IBCH, +IAMH), -QAM
7 230 V AC socket (CEE 7/3, +IGS0), or 115 V AC socket (US,
+IGS1), or 230 V AC socket (UK, +IGS2), -XD10
8 Circuit breakers
9 Option Extender OC7F2 10 Option slots
11 I/O and Relay Option OC7C1 12 Ethernet ports for fieldbus X1 and X2
13 24 V DC terminals, -XD3 14 Spring-type terminals, -XD2.1, -XD2.2, -XD2.3
15 Door device terminals, -XDJ 16 Terminals for I/O and relay options
17 Motor fan supply or control supply (+ICF1...+ICF4), -FCK, -
QA9
