1 Control cable grommets 2 Tubes
1
2
3
e30bj522.10

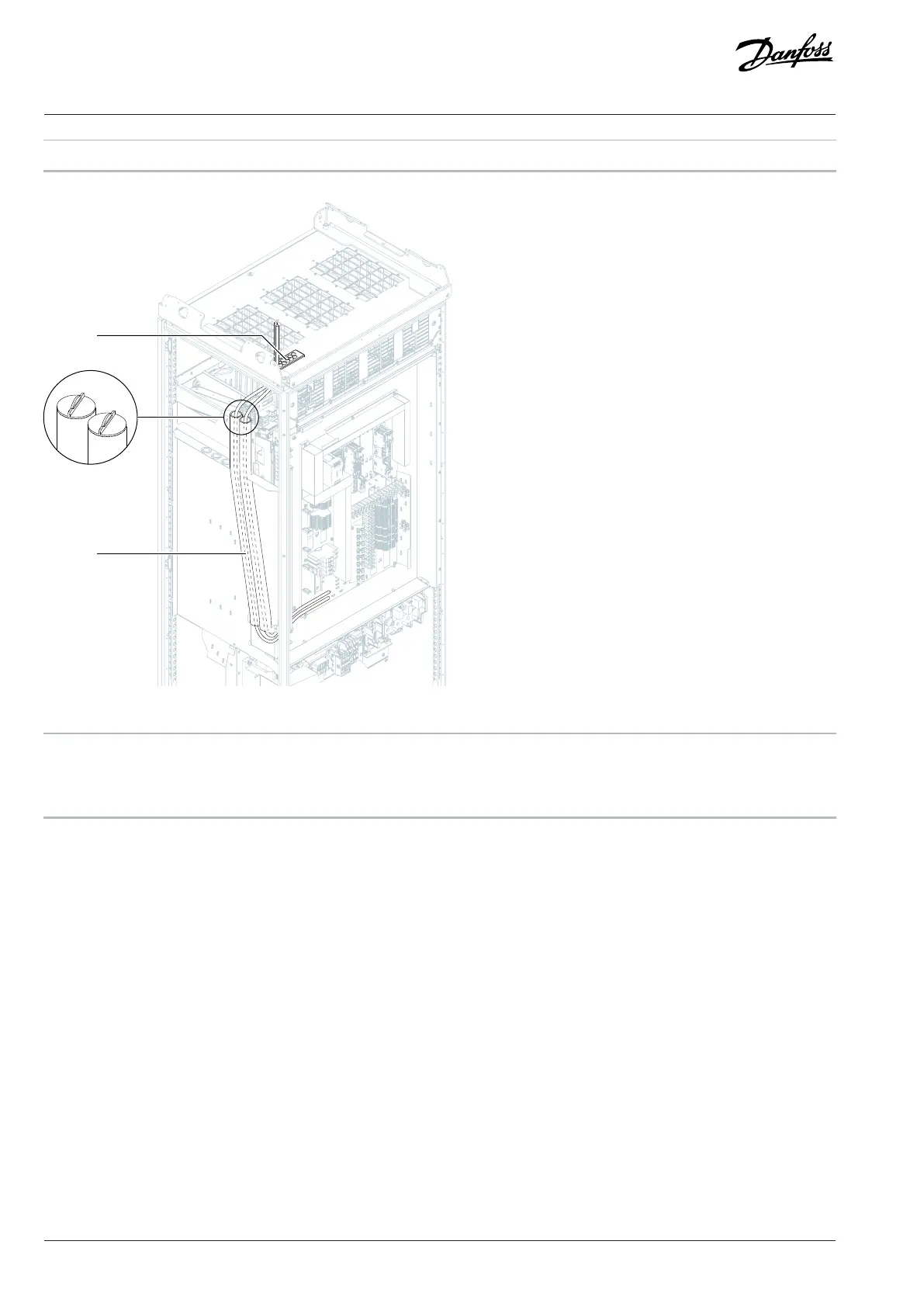

Figure 41: Routing of Control Cables from the Top, AE10/11, IE10/11
1 Control cable grommets 2 Two corks, to be removed when routing control cables
from the top
3 Tubes, internal diameter 32 mm (1.3 in)
