Enter/Exit Programming Mode

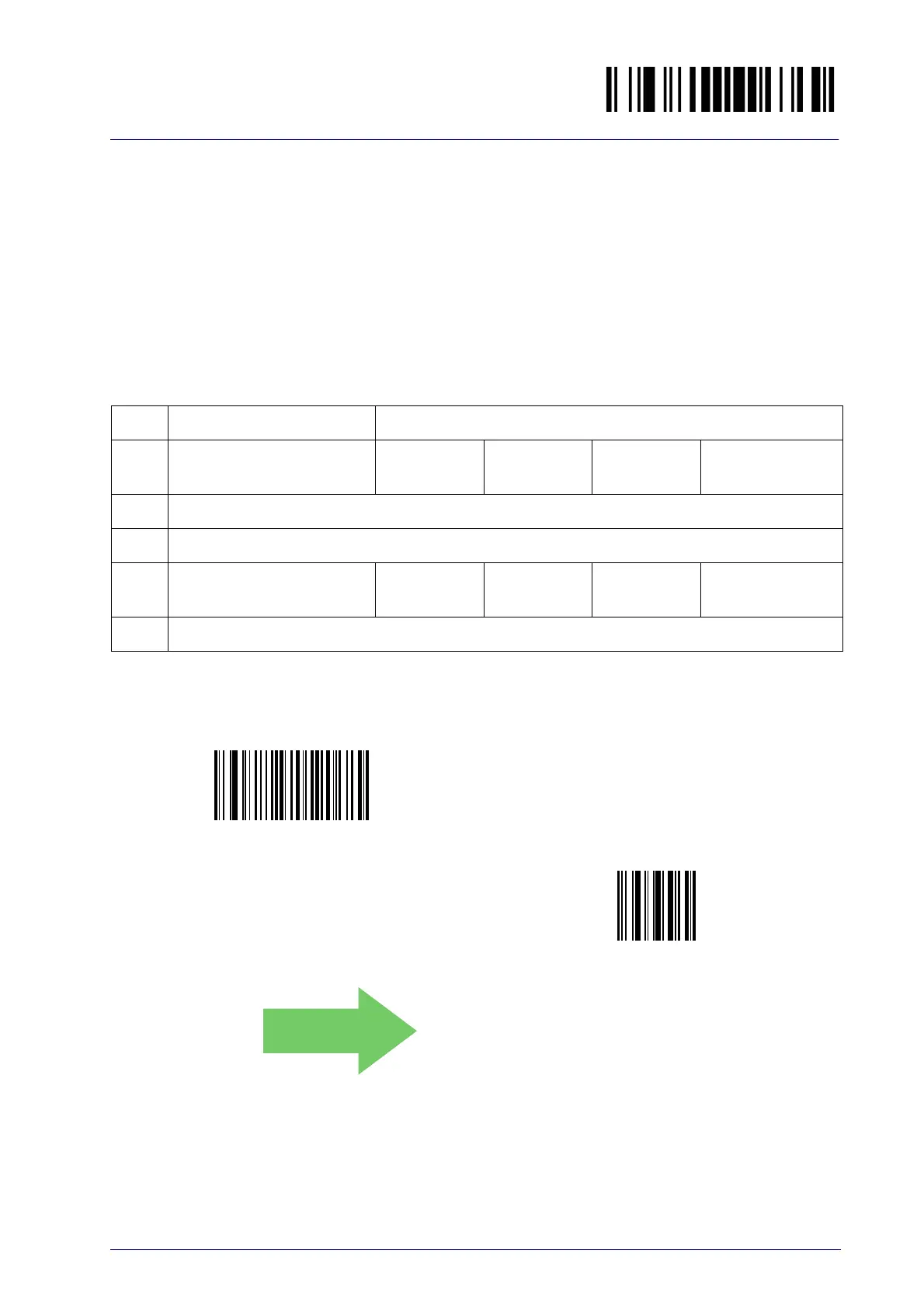

Product Reference Guide 135
Standard 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for Standard 2 of 5 Length
Control. Length 2 is the maximum label length if in Variable Length Mode,
or the second fixed length if in Fixed Length Mode. Length includes the bar
code’s check and da
ta characters.
The length can be set from 1 to 50 char
acters. A setting of 0 specifies to
ignore this length (only one fixed length).
Table 11 provides examples for setting Length 2. See page 267 for detailed
instructions on setting this feature.
Table 11. Standard 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading zeroes)
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CS2L2
Select Standard 2 of 5 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in Appen-
dix D, Keypad representing your de
sired character(s).
End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code t
o abort
and not save the entry string. You can then start
again at the beginning.
~
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
