Enter/Exit Programming Mode
138
PowerScan™ PD9330/PBT9300/PM9300
Industrial 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Industrial 2 of 5
Length Control. Length 1 is the minimum label length if in Variable Length
Mode, or the first fixed length if in Fixed Length Mode. Length includes the
bar code’s data charac
ters only. The length can be set from 0 to 50 charac-
ters.
Table 12 provides some examples for setting Length 1. See page 266 if you
want detailed instructions
on setting this feature.

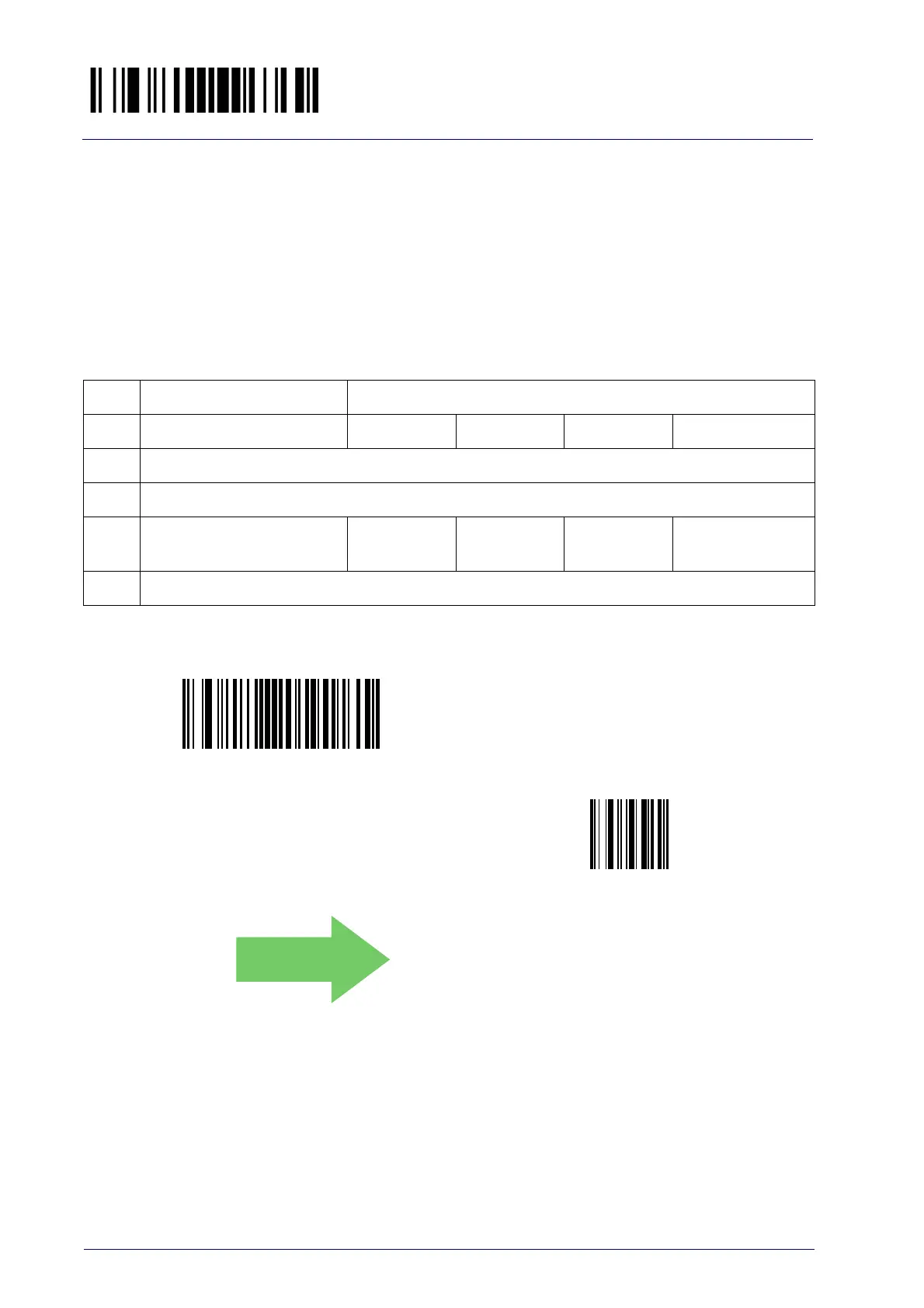

Table 12. Industrial 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Industrial 2 of 5 Set Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in Appen-
dix D, Keypad representing your desired character(s).
E
nd by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL
bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
01 = Length 1 is 1 Character
To Next Page
