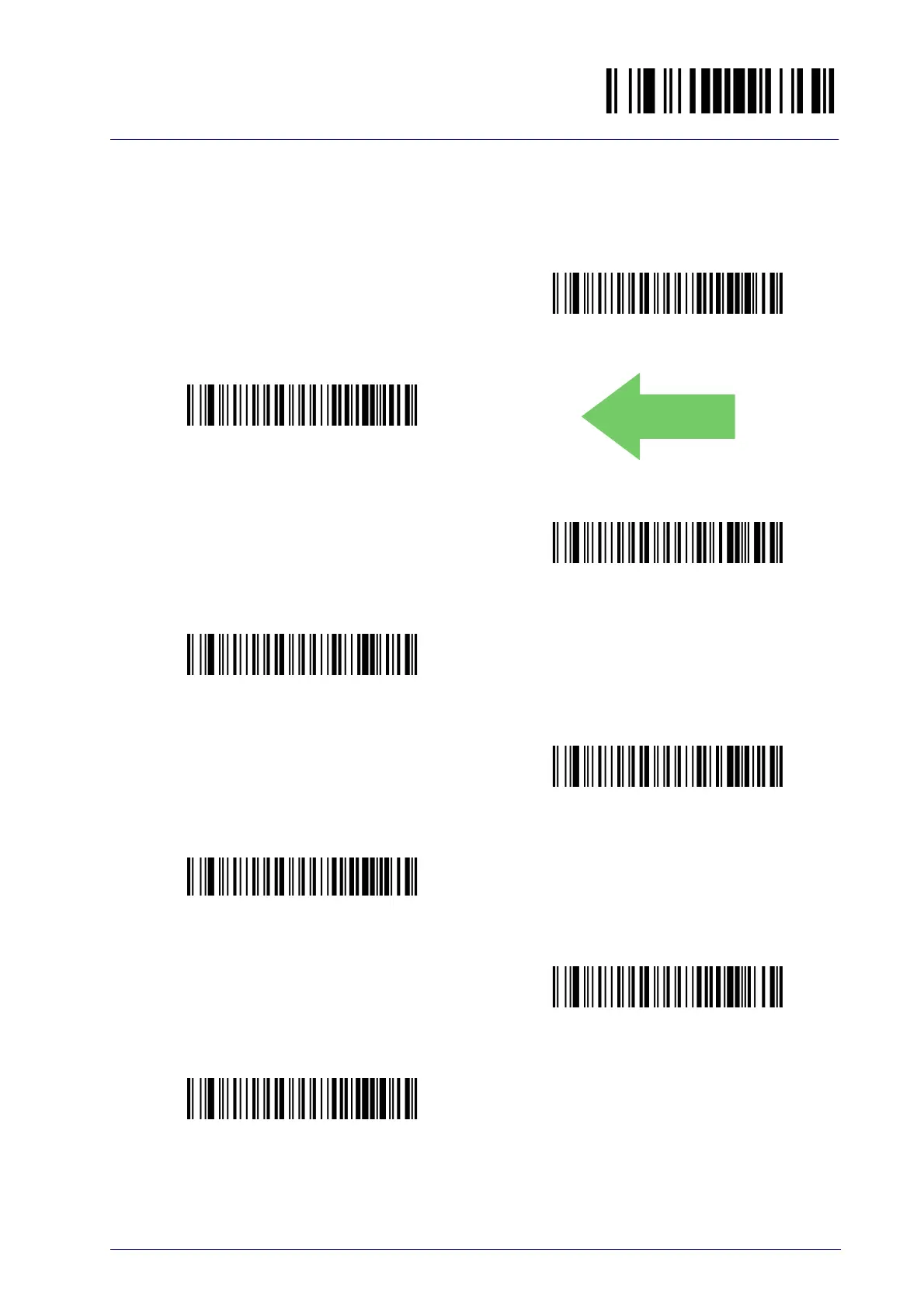

Enter/Exit Programming Mode
Product Reference Guide
199
Beep Duration
This feature cont
rols the duration of radio-spec
ific beep indications
.
$CBTBD06(CR)
Beep Duration = 60 msec
$CBTBD08
(CR)
Beep Duration = 80 msec
DEF
A
UL
T
$CBTBD0A(
CR)
Beep Duration = 100 msec
$CBTBD0C(
CR)
Beep Duration = 120 msec
$CBTBD0E(
CR)
Beep Duration = 140 msec
$CBTBD10
(CR)
Beep Duration = 160 msec
$CBTBD12(CR)
Beep Duration = 180 msec
$CBTBD14(
CR)
Beep Duration = 200 msec
208
210
Table of Contents
Table of Contents
3
Introduction
11
About this Manual
11
Overview
11
Manual Conventions
12
References
12
Technical Support
12
Datalogic Website Support
12
Reseller Technical Support
12
Telephone Technical Support
12
About the Reader
13
PM8300 Compatible Mode
13
The Bc9Xx0™ Base Station/Charger
14
Battery Safety
15
Programming the Reader
16
Configuration Methods
16
Setup
17
Unpacking
17
Setting up the Reader
17
Connecting the Cable (Corded Versions)
18
Configuring the Base Station
19
Mounting the Bc9Xx0 Cradle
19
Mounting Brackets
19
Permanent Mounting
20
Mounting for Portable Use
21
System Connections
22
Connecting and Disconnecting the Interface Cable
23
Bc9Xx0 Configuration
24
Interface Selection
24
Setting the Interface
24
Customizing Configuration Settings
27
Configure Interface Settings
27
Global Interface Features
27
Configuring Other Features
27
Software Version Transmission
27
Resetting the Product Configuration to Defaults
28
Set Date and Time
28
Linking the Reader
29
Link Datalogic RF Devices to Base
29
Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode
29
Linking to a Bluetooth Adapter in Serial Port Profile (Master) Mode
29
Linking to a Bluetooth Adapter in HID Mode
30
Power off
30
Configuration Using Bar Codes
31
Configuration Parameters
31
Global Interface Features
33
Host Commands - Obey/Ignore
33
Rs-232 Only Interface
35
Baud Rate
36
Stop Bits
37
Parity
37
Handshaking Control
38
RS-232/USB-Com Interfaces
39
Intercharacter Delay
40
Beep on ASCII BEL
40
Beep on Not on File
41
ACK NAK Options
41
ACK Character
42
NAK Character
42
ACK NAK Timeout Value
43
ACK NAK Retry Count
43
ACK NAK Error Handling
44
Indicate Transmission Failure
44
Disable Character
45
Enable Character
45
Keyboard EMULATION Settings
47
Country Mode
48
Send Control Characters
51
Wedge Quiet Interval
52
Intercode Delay
52
Caps Lock State
53
Numlock
53
USB Keyboard Speed
54
USB Keyboard Numeric Keypad
55
USB-OEM Interface
57
USB-OEM Device Usage
58
Interface Options
58
Data Format
59
Global Prefix/Suffix (Header/Terminator)
60
Global AIM ID
61
Set AIM ID Individually for GS1-128
63
Label ID
64
Label ID: Pre-Loaded Sets
64
Individually Set Label ID
65
Label ID Control
65
Label ID Symbology Selection
66
Advanced Formatting: User Label Edit
71
Case Conversion
71
Character Conversion
71
Reading Parameters
73
Double Read Timeout
74
Good Read: When to Indicate
76
Led and Beeper Indicators
76
Power on Alert
76
Good Read Beep Frequency
77
Good Read Beep Type
77
Good Read Beep Length
78
Good Read Beep Volume
79
Good Read LED Duration
80
Scan Mode
81
Scanning Features
81
Flash on Time
82
Scanning Active Time
82
Aiming Pointer
83
Flash off Time
83
Green Spot Duration
84
Symbologies
85
Disable All Symbologies
86
Code Ean/Upc
87
Coupon Control
87
Upc-A
88
UPC-A Check Character Transmission
88
UPC-A Enable/Disable
88
Expand UPC-A to EAN-13
89
UPC-A Number System Character Transmission
89
In-Store Minimum Reads
90
Upc-E
91
UPC-E Check Character Transmission
91
UPC-E Enable/Disable
91
Expand UPC-E to EAN-13
92
Expand UPC-E to UPC-A
92
UPC-E Number System Character Transmission
93
UPC-E Minimum Read
93
Gtin Formatting
94
Ean 13 (Jan 13)
94
EAN 13 Enable/Disable
94
EAN 13 Check Character Transmission
95
EAN-13 Flag 1 Character
95
EAN-13 ISBN Conversion
95
Issn
96
EAN 13 Minimum Reads
96
ISSN Enable/Disable
96
Ean 8
97
EAN 8 Check Character Transmission
97
EAN 8 Enable/Disable
97
EAN 8 Minimum Reads
98
EAN 8 to EAN 13
98
Upc/Ean Global Settings
99
UPC/EAN Decoding Level
99
UPC/EAN Price Weight Check
100
UPC-A Minimum Reads
101
UPC/EAN Quiet Zones
101
Add-Ons
102
Optional Add-Ons
102
Optional Add-On Timer
103
P2 Add-Ons Minimum Reads
104
P5 Add-Ons Minimum Reads
104
Code 39
105
Code 39 Check Character Calculation
105
Code 39 Enable/Disable
105
Code 39 Check Character Transmission
106
Code 39 Full ASCII
107
Code 39 Start/Stop Character Transmission
107
Code 39 Minimum Reads
108
Code 39 Quiet Zones
108
Code 39 Decoding Levels
109
Code 39 Length Control
109
Code 39 Set Length 1
110
Code 39 Set Length 2
111
Code 39 Interdigit Ratio
112
Code 32 (Ital Pharmaceutical Code)
113
Code 32 Check Character Transmission
113
Code 32 Enable/Disable
113
Code 32 Feature Setting Exceptions
113
Code 32 Start/Stop Character Transmission
114
Code 39 Cip (French Pharmaceutical)
114
Code 39 CIP Enable/Disable
114
Code 128
115
Code 128 Enable/Disable
115
Expand Code 128 to Code 39
115
Code 128 Check Character Transmission
116
Code 128 Function Character Transmission
116
Code 128 Quiet Zones
117
Code 128 Sub-Code Exchange Transmission
117
Code 128 Minimum Reads
118
Code 128 Decoding Level
119
Code 128 Length Control
120
Code 128 Set Length 1
120
Code 128 Set Length 2
121
Gs1-128
122
GS1-128 Enable
122
Code Isbt 128
123
ISBT 128 Concatenation
123
ISBT 128 Force Concatenation
123
ISBT 128 Advanced Concatenation Options
124
ISBT 128 Concatenation Mode
124
ISBT 128 Dynamic Concatenation Timeout
124
Interleaved 2 of 5 (I 2 of 5)
125
I 2 of 5 Check Character Calculation
125
I 2 of 5 Enable/Disable
125
I 2 of 5 Check Character Transmission
126
I 2 of 5 Minimum Reads
127
I 2 of 5 Decoding Level
128
I 2 of 5 Length Control
129
I 2 of 5 Set Length 1
130
I 2 of 5 Set Length 2
131
I 2 of 5 Zero Pattern
132
Interleaved 2 of 5 Cip Hr
133
Interleaved 2 of 5 CIP HR Enable/Disable
133
Datalogic 2 of 5
134
Datalogic 2 of 5 Check Character Calculation
134
Datalogic 2 of 5 Enable/Disable
134
Datalogic 2 of 5 Check Character Transmission
135
Datalogic 2 of 5 Minimum Reads
135
Datalogic 2 of 5 Decoding Level
136
Datalogic 2 of 5 Length Control
136
Datalogic 2 of 5 Set Length 1
137
Datalogic 2 of 5 Set Length 2
138
Datalogic 2 of 5 Interdigit Ratio
139
Datalogic 2 of 5 Interdigit Maximum Ratio
140
Follett 2 of 5 (Only Standard Optic Models)
140
Follett 2 of 5 Enable/Disable
140
Standard 2 of 5
141
Standard 2 of 5 Check Character Calculation
141
Standard 2 of 5 Enable/Disable
141
Standard 2 of 5 Check Character Transmission
142
Standard 2 of 5 Minimum Reads
142
Standard 2 of 5 Decoding Level
143
Standard 2 of 5 Length Control
143
Standard 2 of 5 Set Length 1
144
Standard 2 of 5 Set Length 2
145
Industrial 2 of 5 (Only Standard Optic Models)
146
Industrial 2 of 5 Check Character Calculation
146
Industrial 2 of 5 Enable/Disable
146
Industrial 2 of 5 Check Character Transmission
147
Industrial 2 of 5 Length Control
147
Industrial 2 of 5 Set Length 1
148
Industrial 2 of 5 Set Length 2
149
Industrial 2 of 5 Minimum Reads
150
Code Iata (Only Standard Optic Models)
151
IATA Check Character Transmission
151
IATA Enable/Disable
151
Codabar
152
Codabar Check Character Calculation
152
Codabar Enable/Disable
152
Codabar Check Character Transmission
153
Codabar Start/Stop Character Transmission
153
Codabar Start/Stop Character Match
154
Codabar Start/Stop Character Set
154
Codabar Quiet Zones
155
Codabar Minimum Reads
156
Codabar Decoding Level
157
Codabar Length Control
157
Codabar Set Length 1
158
Codabar Set Length 2
159
Codabar Interdigit Ratio
160
Abc Codabar
161
ABC Codabar Concatenation Mode
161
ABC Codabar Enable/Disable
161
ABC Codabar Dynamic Concatenation Timeout
162
ABC Codabar Force Concatenation
162
Code 11 (Only Standard Optic Models)
163
Code 11 Check Character Calculation
163
Code 11 Enable/Disable
163
Code 11 Check Character Transmission
164
Code 11 Minimum Reads
164
Code 11 Length Control
165
Code 11 Set Length 1
165
Code 11 Set Length 2
166
Code 11 Interdigit Ratio
167
Code 11 Decoding Level
168
Gs1 Databar™ Omnidirectional
169
GS1 Databar™ Omnidirectional Enable/Disable
169
GS1 Databar™ Omnidirectional GS1-128 Emulation
169
GS1 Databar™ Omnidirectional Minimum Reads
170
Gs1 Databar™ Expanded
171
GS1 Databar™ Expanded Enable/Disable
171
GS1 Databar™ Expanded GS1-128 Emulation
171
GS1 Databar™ Expanded Length Control
172
GS1 Databar™ Expanded Minimum Reads
172
GS1 Databar™ Expanded Set Length 1
173
GS1 Databar™ Expanded Set Length 2
174
Gs1 Databar™ Limited
175
GS1 Databar™ Limited Enable/Disable
175
GS1 Databar™ Limited GS1-128 Emulation
175
GS1 Databar™ Limited Minimum Reads
176
Code 93
177
Code 93 Check Character Calculation
177
Code 93 Enable/Disable
177
Code 93 Check Character Transmission
178
Code 93 Length Control
178
Code 93 Set Length 1
179
Code 93 Set Length 2
180
Code 93 Decoding Level
181
Code 93 Minimum Reads
181
Code 93 Quiet Zones
182
Codablock F
183
Codablock F AIM Check
183
Codablock F EAN Enable/Disable
183
Codablock F Enable/Disable
183
Codablock F Length Control
184
Codablock F Set Length 1
184
Codablock F Set Length 2
185
Code 4
186
Code 4 Check Character Transmission
186
Code 4 Enable/Disable
186
Code 4 Hex to Decimal Conversion
186
Code 5
187
Code 5 Check Character Transmission
187
Code 5 Enable/Disable
187
Code 5 Hex to Decimal Conversion
187
Code 4 and Code 5 Common Configuration Items
188
Code 4 and 5 Deconding Level
188
Code 4 and Code 5 Minimum Reads
189
Bc412
190
BC412 Check Character Calculation
190
BC412 Enable/Disable
190
BC412 Minimum Reads
191
BC412 Decoding Level
192
BC412 Length Control
192
BC412 Set Length 1
193
BC412 Set Length 2
194
Msi
195
MSI Check Character Calculation
195
MSI Enable/Disable
195
MSI Check Character Transmission
196
MSI Length Control
196
MSI Set Length 1
197
MSI Set Length 2
198
MSI Decoding Level
199
MSI Minimum Reads
199
Plessey (Only Standard Optic Models)
200
Plessey Check Character Calculation
200
Plessey Enable/Disable
200
Plessey Check Character Transmission
201
Plessey Length Control
201
Plessey Set Length 1
202
Plessey Set Length 2
203
Plessey Decoding Level
204
Plessey Minimum Reads
204
Wireless Features
205
Pm9500-Only Features
206
Default Chapter
208
Wireless Beeper Features
208
Beep Frequency
208
Good Transmission Beep
208
Beep Duration
209
Beep Volume
210
Disconnect Beep
210
Docking Beep
211
Leash Alarm
211
Automatic Configuration Update
213
Configuration Updates
213
Copy Configuration to Base Station
213
Copy Configuration to Scanner
213
Batch Features
214
Batch Mode
214
Send Batch
214
Erase Batch Memory
215
RF Batch Mode Transmit Delay
215
Direct Radio Autolink
216
Rf Address Stamping
216
Source Radio Address Transmission
216
Source Radio Address Delimiter Character
217
Current Date
218
Current Time
218
Real Time Clock (Rtc) Configuration
218
Date Tx Format
219
Time Tx Format
219
Date-Time Separator
220
Date-Time Transmission Order
221
Power off
222
Powerdown Timeout
222
BLUETOOTH SECURITY FEATURES Starting
223
Bluetooth Security Mode
224
Bluetooth PIN Code
224
Select PIN Code Length
224
Set PIN Code
225
PBT9300-Only Features
223
Bluetooth Security Features
223
Other Bluetooth Features
226
Reconnect Attempt Interval
226
Bluetooth HID Variable PIN Code
227
Bluetooth HID Alt Mode
228
Bluetooth Max Client
228
Bluetooth Friendly Name
229
Bluetooth Reconnect Attempt Mode
230
HID Country Mode
230
PM9300-Only Features
233
STAR Radio Protocol Timeout
233
STAR Radio Transmit Mode
234
Radio Sleep
234
Changing System Speed
235
Frequency Agility
236
Compatibility with PM8300
236
Compatibility Mode
236
Display and Keyboard Features
237
Display Operating Mode
237
Display off Timeout
238
Backlight Enable
238
Display Contrast
239
Font Size
239
Enable/Disable Buttons
240
Bluetooth HID Send Unknown ASCII Char
240
Arrow Keys Mode (4-Key Models Only)
242
Arrow up String (4-Key Models Only)
242
Arrow down String (4-Key Models Only)
243
Power Class
243
Configure Actions for Function Keys
244
Configure Actions for F1
245
Configure Actions for F2
245
Configure Actions for F3 (16-Key Models Only)
246
Configure Actions for F4 (16-Key Models Only)
247
Configure Actions for Shift (16-Key Models Only)
247
Define Strings
248
Set String Header
249
Set String ID
249
Set String Terminator
250
Changing from Normal to Compatible Mode
250
Additional Features for 16-Key Models
251
Display Time Stamping Mode
251
Last Code Shown Timeout
251
Changing from Compatible Mode Back to Normal
251
Mode Selection
252
Quantity Field
252
Base Address Stamping
252
Base Address Delimiter Character
252
Quantity/Code Send Mode
253
Quantity/Code Separator
253
Master Header/Terminator ( Prefix/Suffix)
253
Cradle Address
253
Interkey Timeout
254
Slave Minimum Address
254
Slave Maximum Address
254
Append Code
255
Network Working Mode
255
Network Warning Message
255
Echo
256
Keypress Sound
256
Transmission Warning Message
256
Network Baud Rate
256
SHIFT Enable/Disable
257
SHIFT Key Association
257
Lower Case
258
Set F1 Label
258
Set F2 Label
258
Set F3 Label
259
Set F4 Label
259
Barcode/Key Different Data Format
260
Set Barcode Header
260
Set Barcode Terminator
260
Set Key Sequence Header
261
Set Key Sequence ID
261
Set Key Sequence Terminator
261
References
263
Parameters
264
Only
264
RS-232/USB COM Parameters
266
Keyboard Interface
273
Wedge Quiet Interval
273
Intercharacter Delay
274
Intercode Delay
275
Symbologies
276
Decoding Safety
276
Set Length
276
Data Editing
278
Global Prefix/Suffix
279
Global AIM ID
279
Label ID
281
Character Conversion
285
Reading Parameters
286
Good Read LED Duration
286
Scanning Features
287
Scan Mode
287
Wireless Features
289
Automatic Configuration Update
289
RF Address Stamping
289
Bluetooth-Only Features
291
Message Formatting
293
Cursor Control
294
Font Selection
294
Clearing Display
294
LED and Beeper Control
295
Setting RTC
295
Technical Specifications
297
Imager Labeling
302
Standard Cable Pinouts
303
LED and Beeper Indications
304
Base Station Indications (Cordless Models ONLY)
305
Sample Bar Codes
307
Standard Defaults
311
Keypad
323
Scancode Tables
325
Control Character Emulation
325
Single Press and Release Keys
325
Interface Type PC at PS/2, USB-Keyboard
326
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode
328
Ascii Chart
331
Other manuals for Datalogic PD9330
Quick Reference Guide
44 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic PD9330 and is the answer not in the manual?
Ask a question
Datalogic PD9330 Specifications
General
Brand
Datalogic
Model
PD9330
Category
Barcode Reader
Language
English
Related product manuals
Datalogic PowerScan PD9530
362 pages
Datalogic PowerScan PD9130
362 pages
Datalogic PowerScan PD9600
411 pages
Datalogic PowerScan PD953X
360 pages
Datalogic PowerScan PD9531-AR
362 pages
Datalogic PowerScan PD9630-SR
360 pages
Datalogic PowerScan PD9630-HP
360 pages
Datalogic PowerScan PD96 Series
360 pages
Datalogic PowerScan PD8300
3 pages
Datalogic Powerscan PD7100
392 pages
Datalogic PowerScan PD8530
160 pages
Datalogic PowerScan Series
411 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
