PowerScan™ PD9330/PBT9300/PM9300

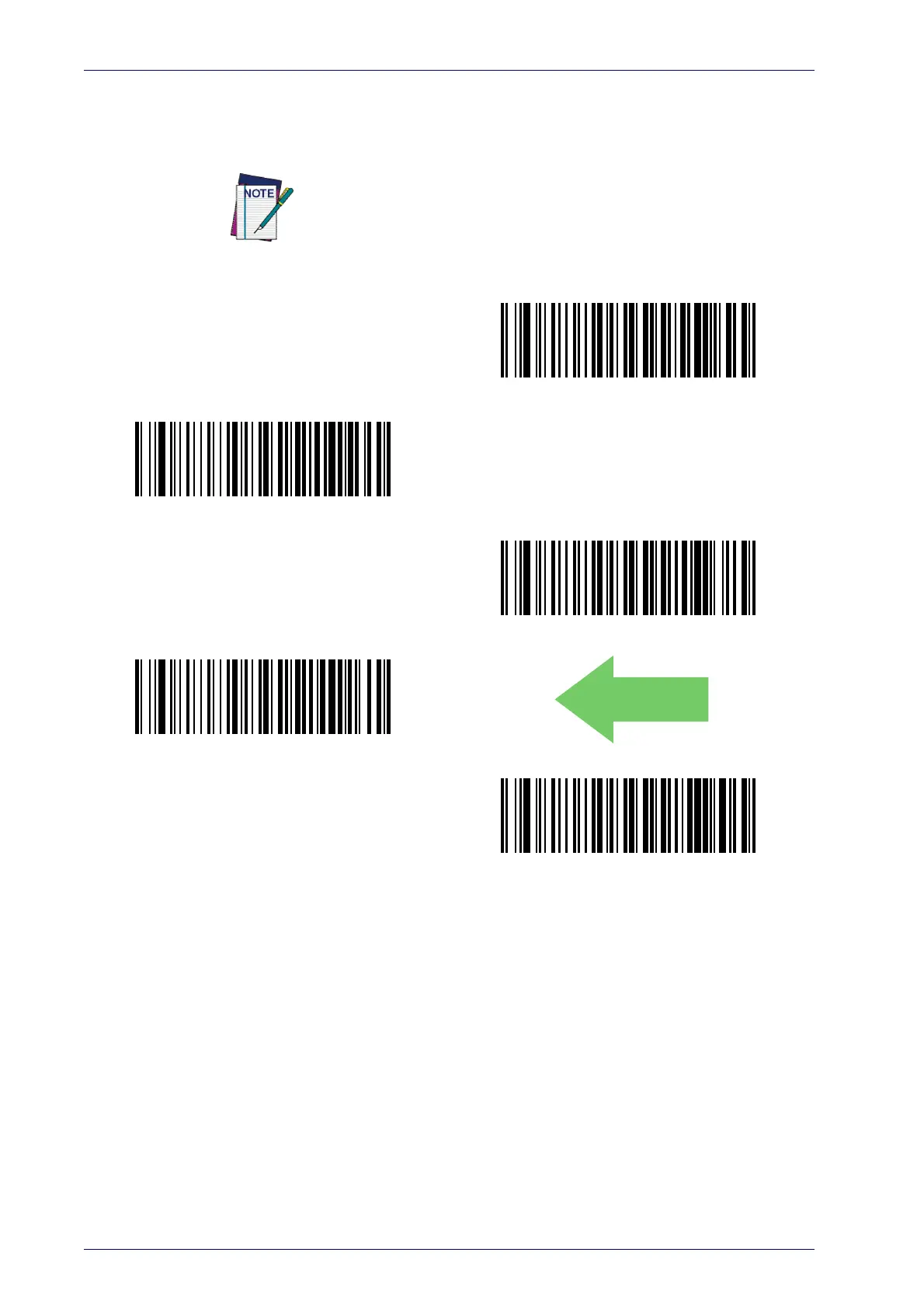

Code 93 Quiet Zones
This setting has no effect for AR models.
Enables/disables quiet zones for Code 93.
Code 93 Quiet Zones = No Quiet Zones
Code 93 Quiet Zones = Quiet Zones on
one side
Code 93 Quiet Zones = Quiet Zones on two sides
Code 93 Quiet Zon
es = Auto
DEF
A
UL
T
Code 93 Quiet Zones = Virtual Qui
et Zones on two sides
This feature is
available only on the TD1130 model.
