Setup
8
PowerScan™ PD9330/PBT9300/PM9300

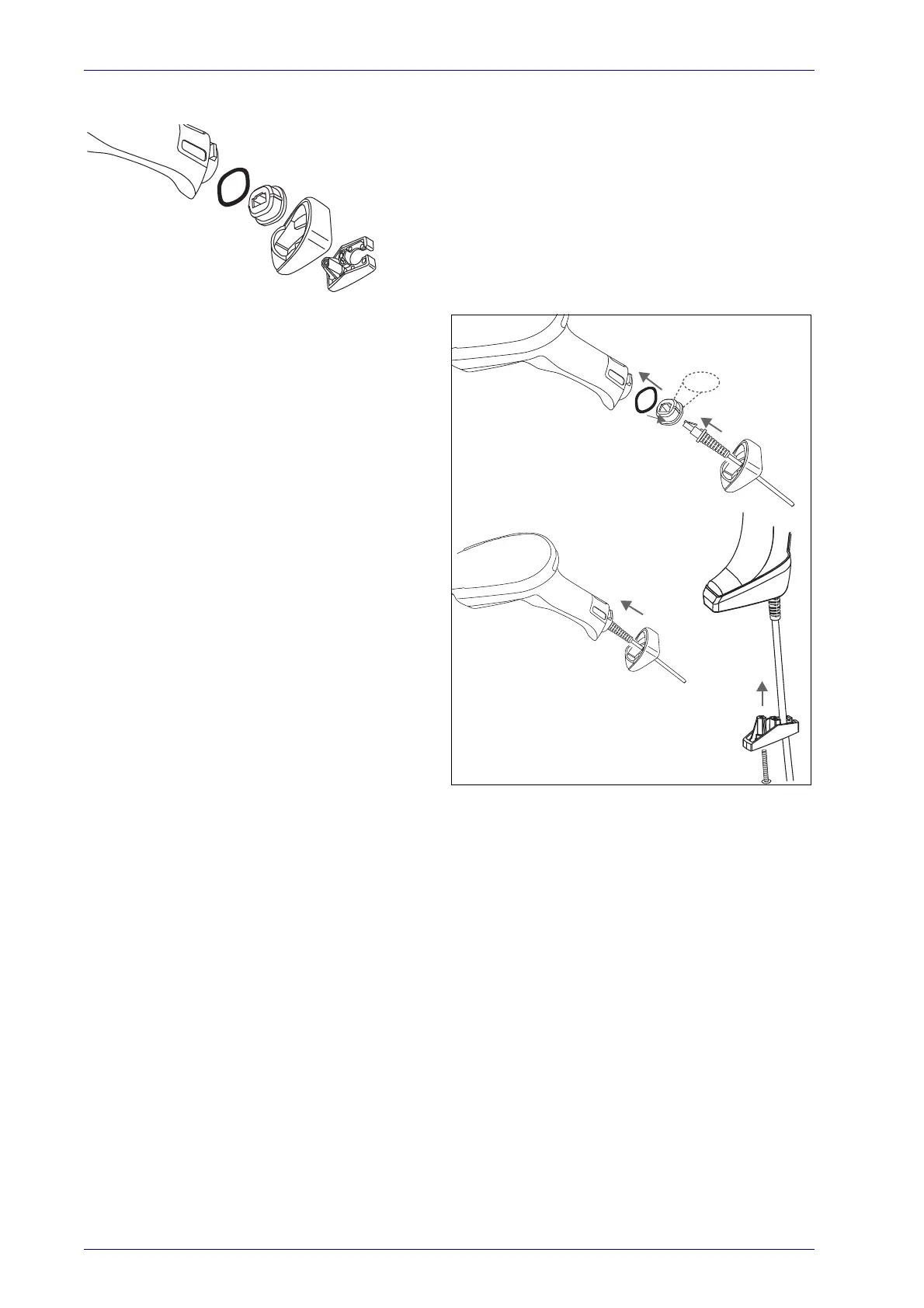

Connecting the Cable (Corded versions)
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder
1. Slip the cable through the Cover.
2. Push the Rubber Gasket onto the Cable
Ho
lder.
3. Push the Cable Holder and gasket into
the
handle. Ensure that the “Front”
marking on the Cable Holder is facing
out, with the arrow pointing towards the
front of the scanner.
4. Insert the end of the cable into the
so
cket of the Cable Holder.
5. Push the Cover along the cable towards
t
he reader, and hook it over the yellow
“tooth” on the back of the handle.
6. Insert the cable through the Connector
Ho
lder, and push it up into the Cover.
7. Insert and tighten the sc
rew to affix the
cable assembly to the reader handle.
