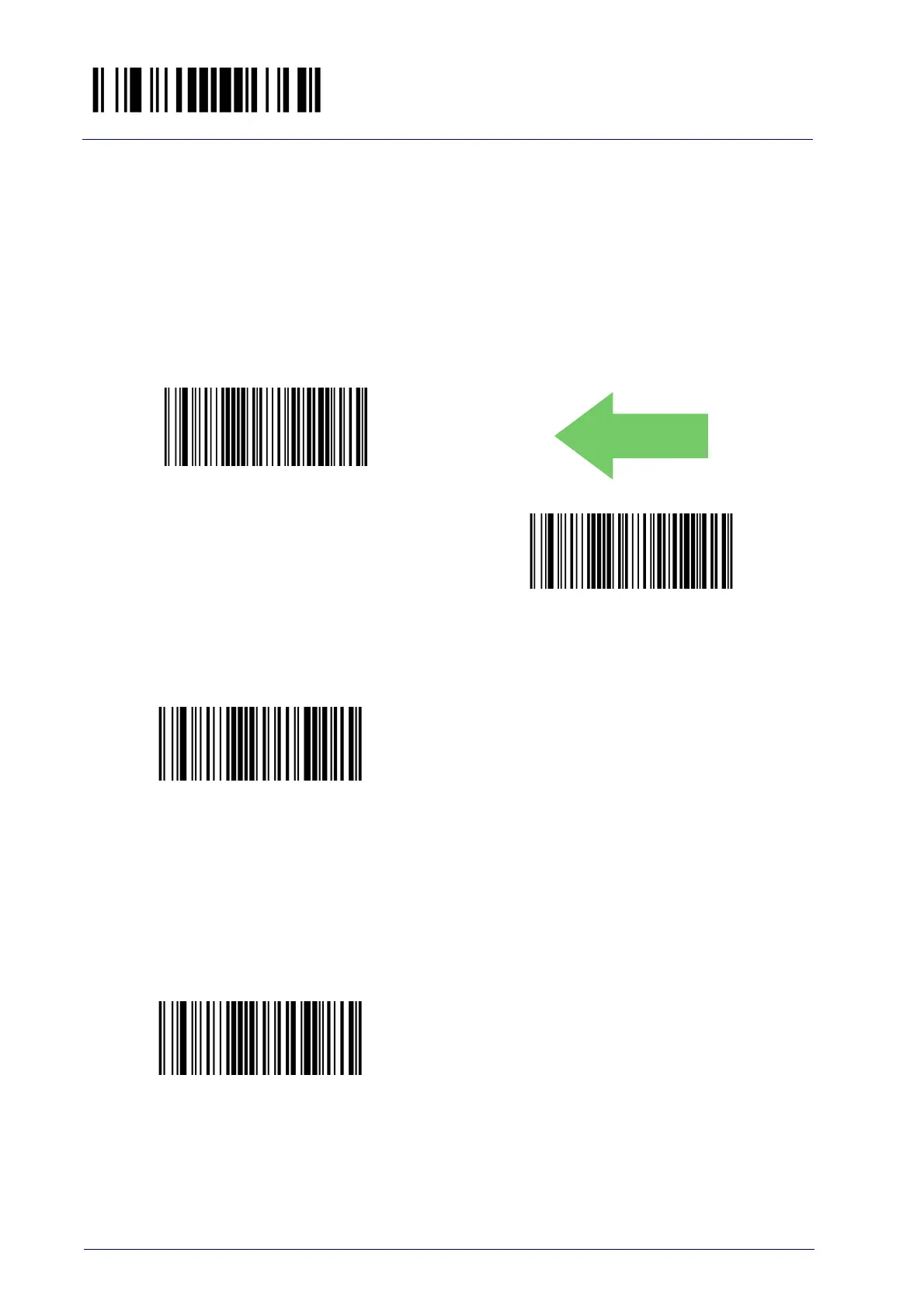

Enter/Exit Programming Mode
250 PowerScan™ PD9330/PBT9300/PM9300
Barcode/Key Different Data Format
If this parameter is enabled, barcode and keyboard entered data can be for-
matted separately. More specifically: if this parameter is disabled, barcode
and keyboard data will share the same Header
and Terminator defined using
“Set Barcode Header” and “Set Barcode Terminator” below. If this parameter
is enabled, keyboard entered data are treated differently, as their format
must be programmed through the parameters "Set String Header", "Set
String Terminator", "Set Key Sequence Header" and "Set Key Sequence Ter-
minator".
$CPWDF00\r
Disable
DEFAULT
$CPWDF01\r
Enable
Set Barcode Header
Sets the header for barcode and keyboard composed strings.
$CPWBH
Set barcode header
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followe
d by 32 digits from the Alphanumeric charac-
ters in
Appendix D, Keypad . The digits must be the
hexadecimal ASCII representation of the desired charac-
ters.
If less than the expected string of 16 characters are
sele
cted, scan the ENTER/EXIT bar code to terminate the
string. If the first 2 digits are 0, the feature is disabled.
End by scanning the ENTER/EXIT bar code twice.
Set Barcode Terminator
Sets the terminator for barcode and keyboard composed strings.
$CPWBT
Set barcode terminator
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followe
d by 32 digits from the Alphanumeric charac-
ters in
Appendix D, Keypad . The digits must be the
hexadecimal ASCII representation of the desired charac-
ters.
If less than the expected string of 16 characters are
selected,
scan the ENTER/EXIT bar code to terminate the
string. If the first 2 digits are 0, the feature is disabled.
End by scanning the ENTER/EXIT bar code twice.
