CAUTION
You can reuse any previously created custom curve on any terminal(s). However, the configuration settings are the
same across all the other I/O terminals. If you alter the settings for the curve this will apply to all other I/O terminals
where the curve has been used.

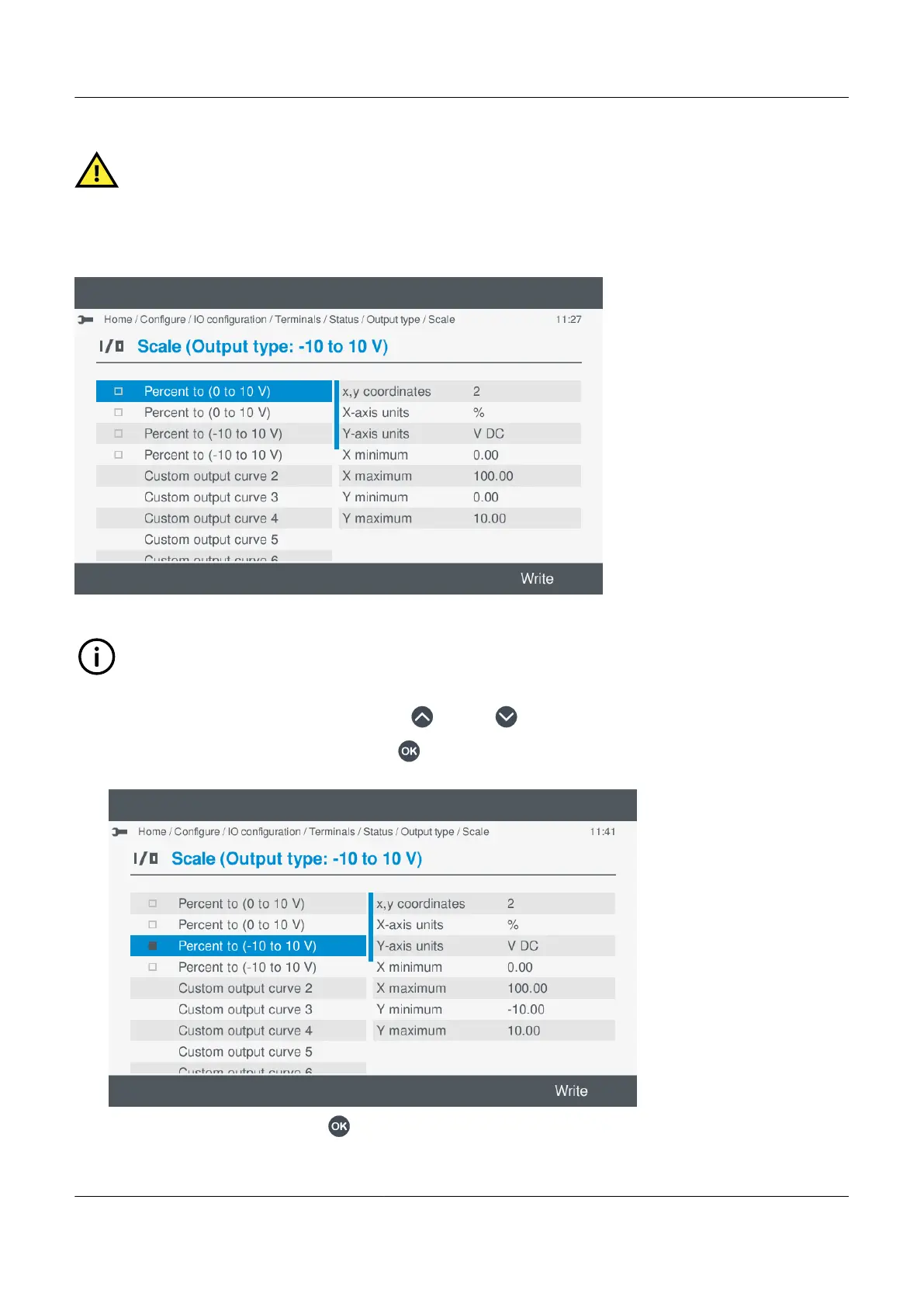

Select a pre-configured curve
INFO
If available, you can select a pre-configured curve, for example (-100 to 100 %) to (-10 to 10 V). Details for the
curve are shown on the right and you cannot modify a predefined curve.
1. Highlight the pre-configured curve, by pressing Up or Down .
2. Select the pre-configured curve, by pressing OK .
• The selected curve is shown with a solid box.
•
• To remove the selection, press OK again.
PPM 300 Operator's manual 4189340910 UK
