668 Clearing Jams
FILE LOCATION: C:\Users\fxstdpc-
admin\Desktop\0630_UG??\Mioga_AIO_UG_FM\Mioga_AIO_UG_FM\section30.fm
DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY
7

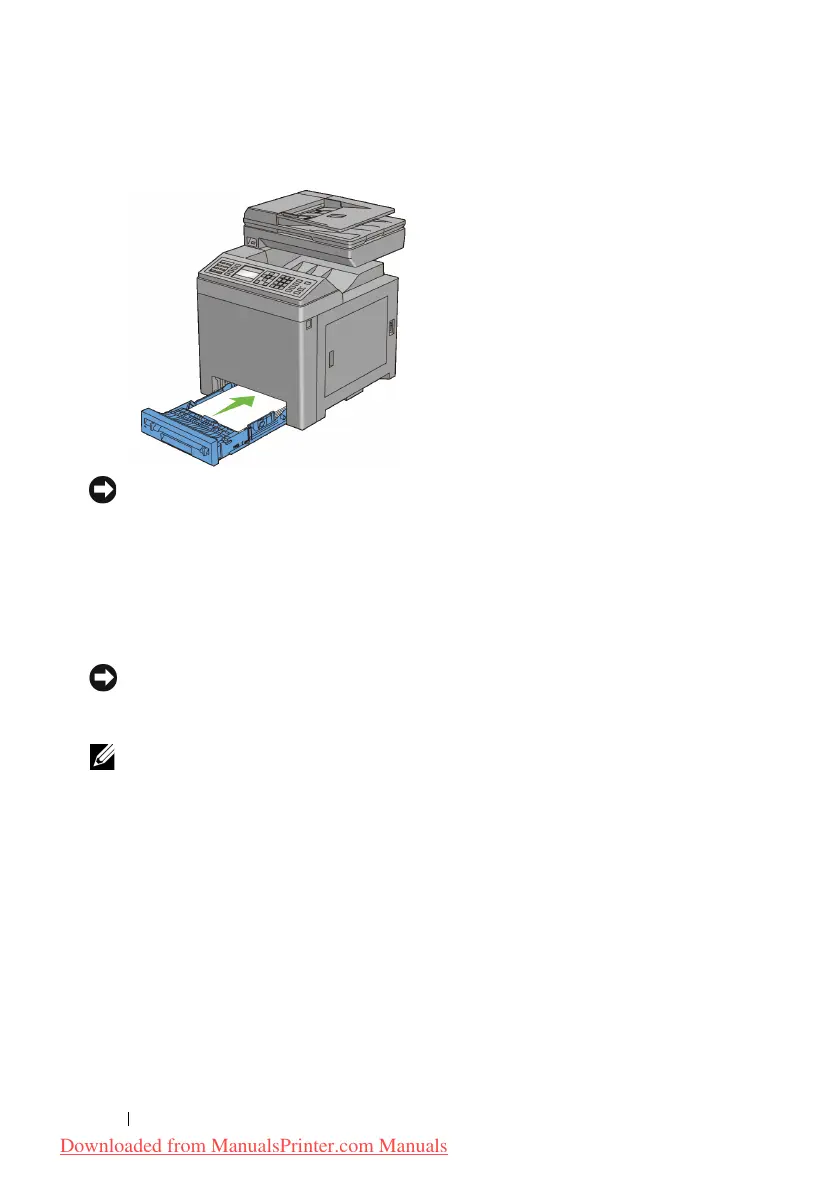

Insert the standard 250-sheet tray into the printer, and push until it stops.
NOTICE: Do not use excessive force on the tray. Doing so could damage the tray
or the inside of the printer.
Clearing Paper Jams From the Standard 250-
Sheet Tray
NOTICE: Protect the drums of the Print Head Device (PHD) against bright light.
If the front cover remains open for more than three minutes, print quality may
deteriorate.
NOTE: To resolve the error displayed on the operator panel, you must clear all
print media from the print media path.
1
Pull the standard 250-sheet tray out of the printer carefully. Hold the tray
with both hands, lift the front slightly, and remove it from the printer.
