Troubleshooting Guide 711
FILE LOCATION: C:\Users\fxstdpc-
admin\Desktop\0630_UG??\Mioga_AIO_UG_FM\Mioga_AIO_UG_FM\section31.fm
DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY

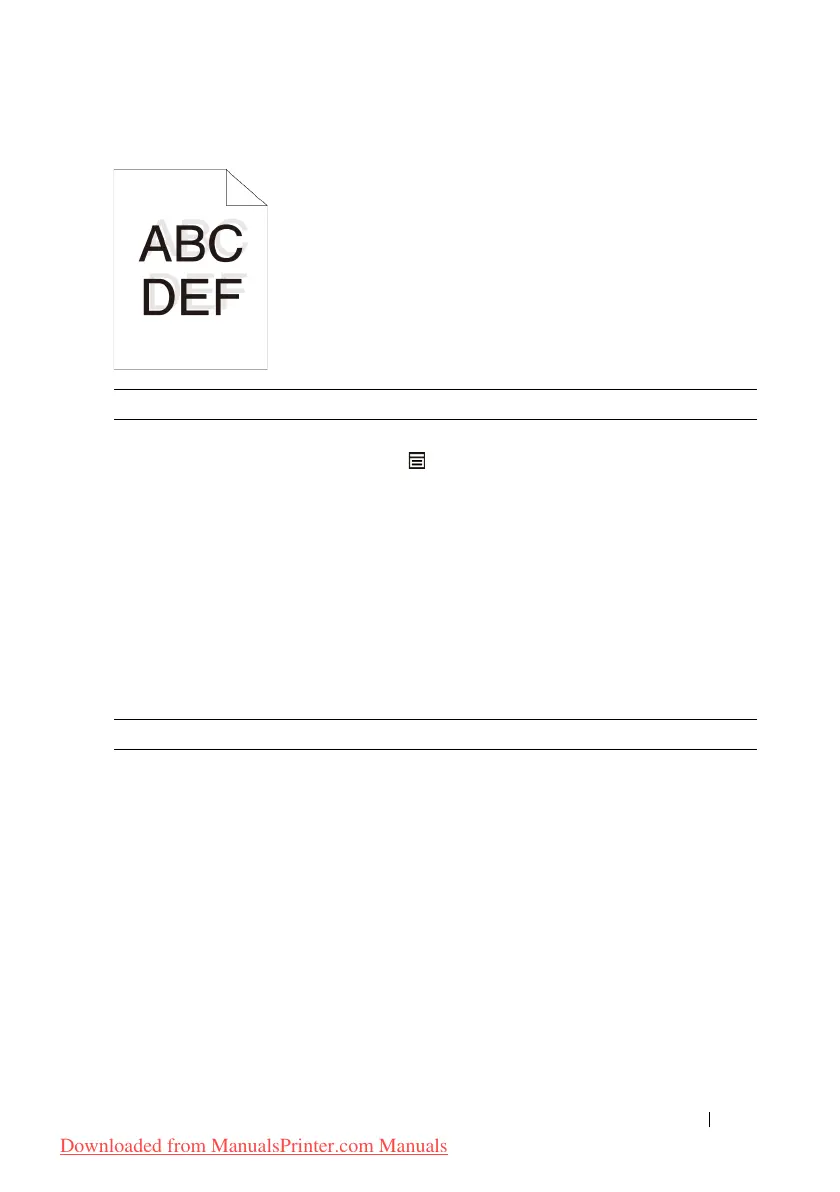

Action Yes No
1 Execute auto color registration adjustment.
a
On the operator panel, press the (
Menu
)
button and select
System Setup
Admin Menu
Maintenance
Color
Reg Adjustment
Auto Correct
Yes
.
OR
a
Launch the Tool Box, and click
Color
Registration Adjustment
on the
Printer
Maintenance
tab.
b
Click the
Start
button under
Auto Correct
.
Does this solve your problem?
The task is
complete.
Go to action 2.
2 Do you have a spare PHD unit? Go to action 3a. Go to action 3b.
3a Replace the PHD unit if you have a spare unit.
a
Replace the PHD unit. See "
Replacing the
Print Head Device (PHD) Unit"
and
"Installing a PHD Unit."
b
Launch the Tool Box, and click
Color
Registration Adjustment
on the
Printer
Maintenance
tab.
c
Click the Start button under
Print Color Regi
Chart
.
The Color Regi Configuration Chart is
printed.
Does this solve your problem?
The task is
complete.
Contact Dell.
