Event Filter Settings
The PEF Event Filters Settings screen, shown in Figure 33 displays the supported pre-configured
event filters, along with settings associated with the event filters. These associated settings are:
• Whether the filter is enabled or disabled.
• The policy number associated with the filter (required only if alerts are enabled).
• A chassis action that occurs if the filter event occurs.
• Whether alerts are enabled or disabled if the filter event occurs.
The settings associated with a particular filter can be edited. Select the radio button next to a filter
and then clicking the Edit button.

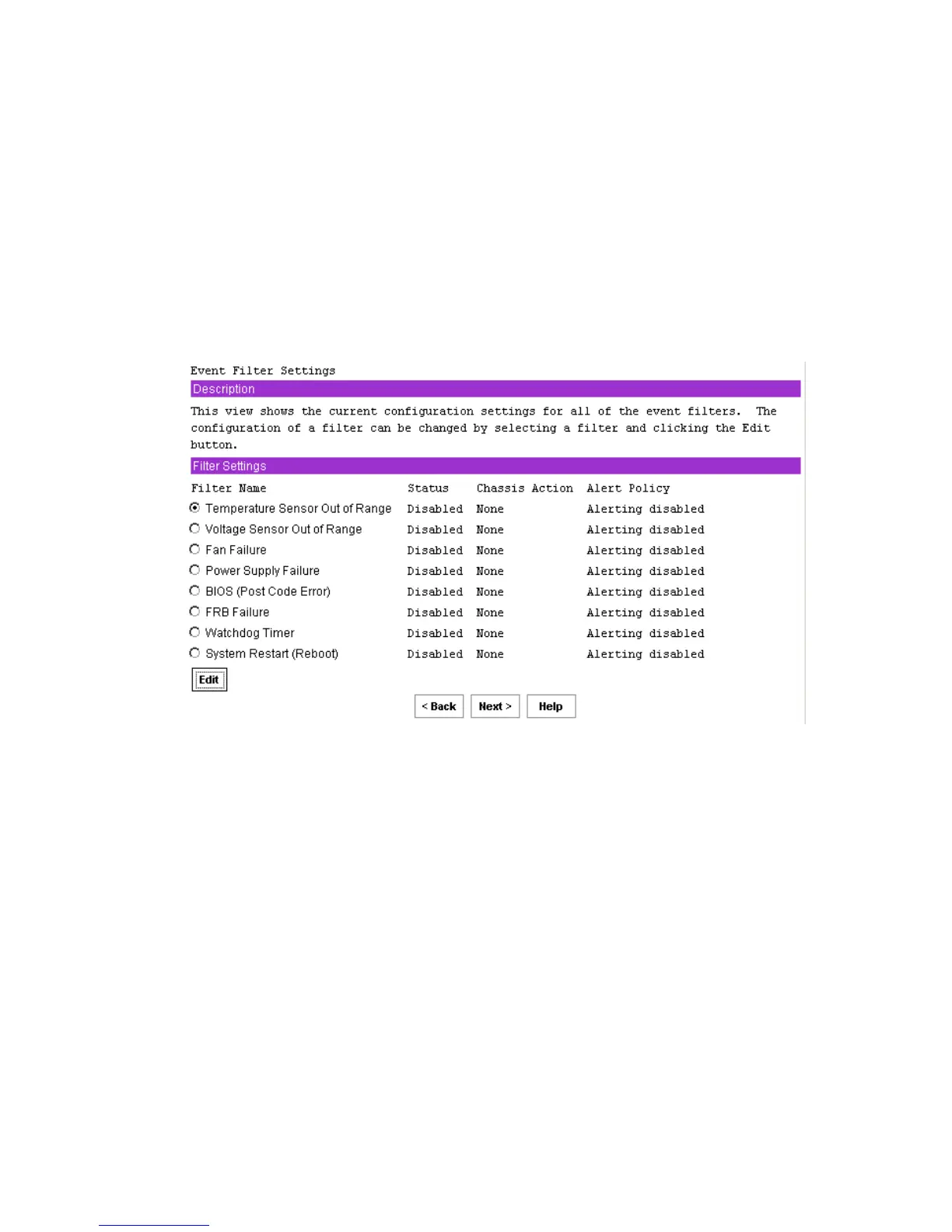

Figure 33. Event Filter Settings
If you click in one of the radio buttons and then click Edit, the Edit Event Filter Settings screen is
displayed for the selected event filter. After completing this screen, click Next to move to the next
screen to continue this subtask.
