Dell 3250 - External Chassis Features; Chassis Front; Figure 2. Server System Front with Bezel Installed; Figure 3. Server System Front with Bezel Removed

25
External Chassis Features
System controls and indicators are located in several places on the chassis as follows:
• Chassis front:
 Front panel: Front panel switches and LEDs
 Peripheral bay: Hard drive LEDs
 Power bay: Power Module LEDs and Power Supply LEDs
• Chassis rear panel: System ID LEDs and LAN port LEDs
Each of these areas is discussed below.
Chassis Front
The following figure shows the front of the chassis with the snap-on bezel in place. The bezel must
be removed to access the front panel switches, power supplies, SCSI drives and DVD-CDRW
devices.

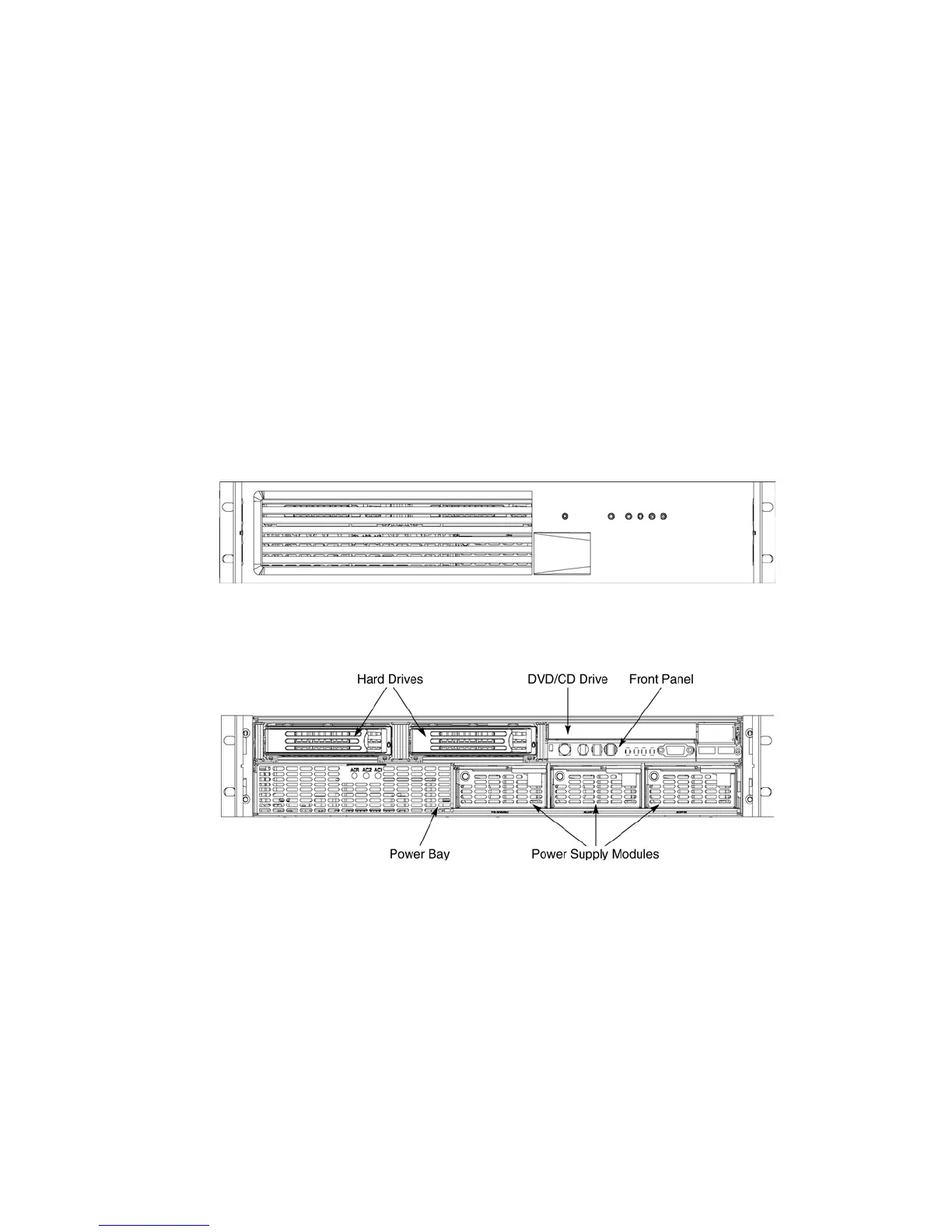

Figure 2. Server System Front with Bezel Installed
Figure 3. Server System Front with Bezel Removed
