Viewing Events in the SEL
When the SEL Viewer is opened (see Figure 45), the first page of events is loaded from the log and
displayed. To view the remaining events you are provided with a series of buttons along the bottom
of the screen. You can use the <Tab> key to access the screen buttons.
Acronym Description
RID Record ID
RT Record Type
TS Time Stamp
GID Generator ID
ER Event Message Format Revision
ST Sensor Type
SN Sensor Number
EDIR Event Dir and Event Type
ED1 Event Data 1
ED2 Event Data 2
ED3 Event Data 3
MID Manufacturer ID
1
OEM OEM defined
2

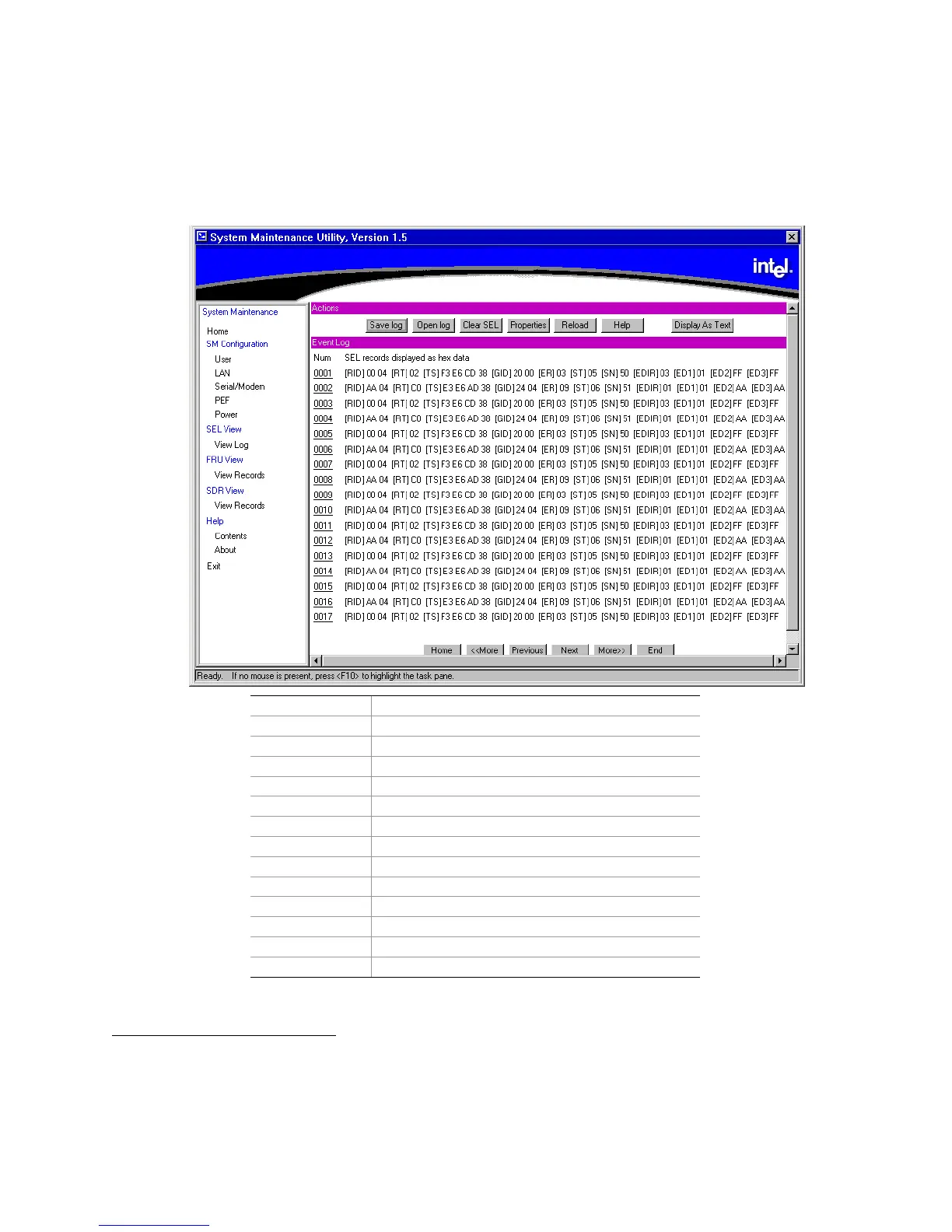

Figure 45. SEL Viewer, Hex Display Mode
1
Used when displaying OEM SEL Records Type C0h-DFh
2
Used when displaying OEM SEL Records Type C0h-DFh and E0h-FFh
