LAN Alert Configuration
The LAN Alert Configuration screen is displayed when you click Next from the LAN Channel
Configuration screen. The LAN Alert Configuration screen shows all configured destination IP
addresses for LAN alerts and their associated settings. If no IP addresses are configured as alert
destinations, the Edit and Delete buttons are disabled.

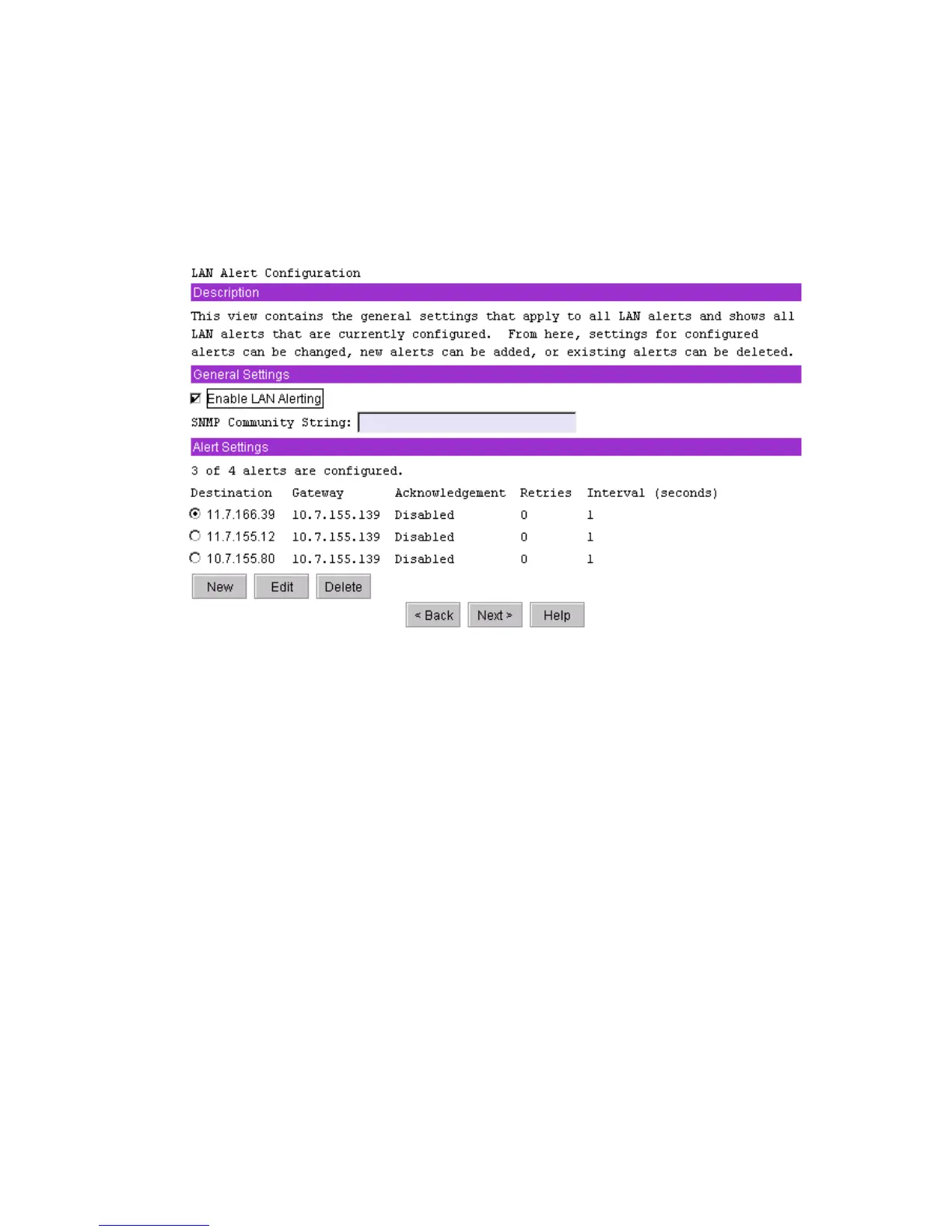

Figure 27. LAN Alert Configuration
After completing this screen, click Next to move to the next screen to continue this subtask.
Enable LAN Alerting
This check box is used to enable or disable alerts on the LAN channel.
SNMP Community String
This edit box is used to enter a string for Platform Event Traps (PETs). This field can optionally be
used for a vendor-specific string that is used to provide the network name identity of the system
that generated the event. This string is restricted to a maximum of 18 bytes and it is typically set to
public. This string can be null.
