Dell 3250 - AC Power Input; Figure 77. AC Power Input Connector

208
Signal Name Pin Ultra320 SCSI Connector Pin Signal Name
+RST 25 59 -RST
+MSG 26 60 -MSG
+SEL 27 61 -SEL
+C/D 28 62 -C/D
+REQ 29 63 -REQ
+I/O 30 64 -I/O
+DB(8) 31 65 -DB(8)
+DB(9) 32 66 -DB(9)
+DB(10) 33 67 -DB(10)
+DB(11) 34 68 -DB(11)
AC Power Input
Two IEC320-C14 15A receptacles are provided at the rear of the server. See Figure 77. It is
recommended to use an appropriately sized power cord and AC main. An external AC cord
retention feature is supported by the chassis but is not supplied.

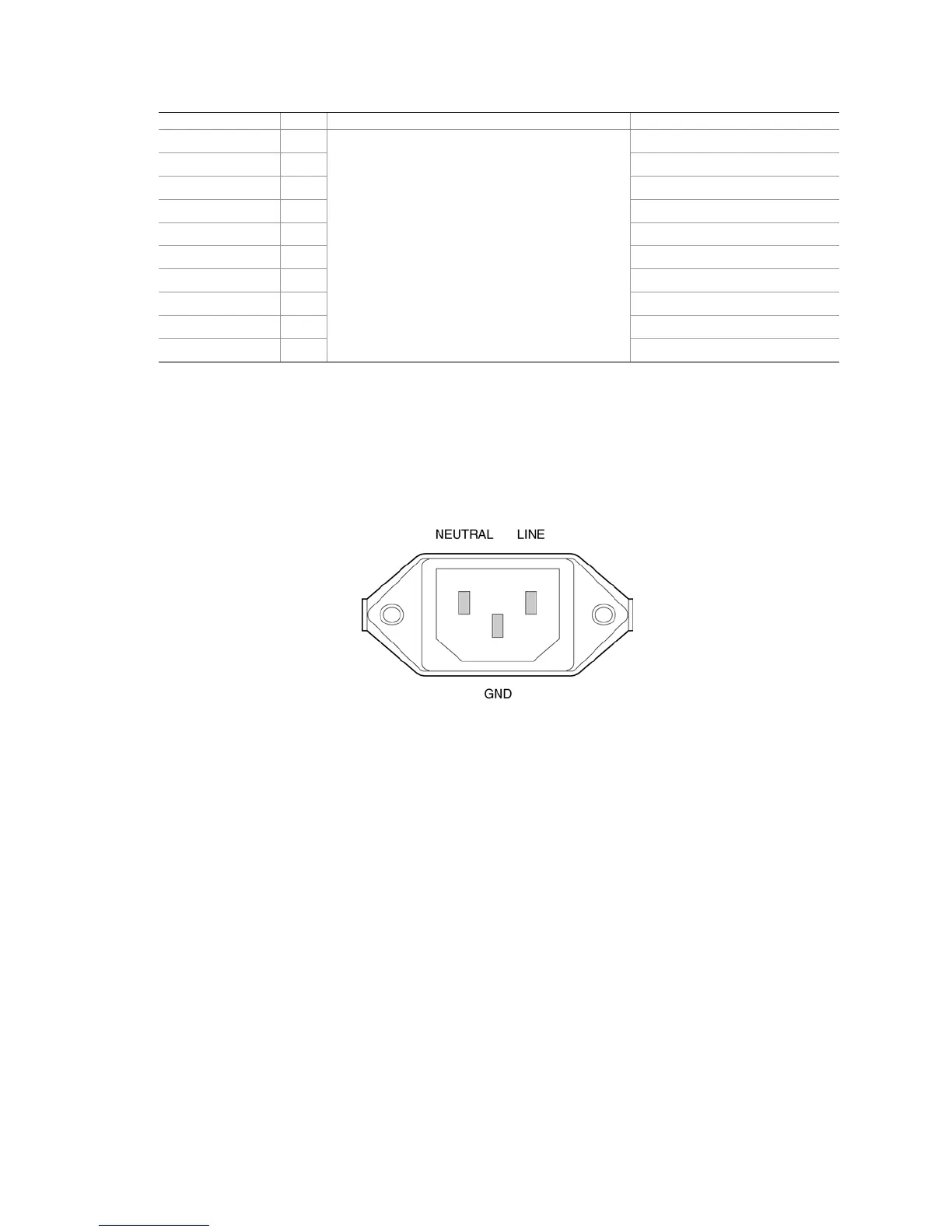

Figure 77. AC Power Input Connector
