Part 1: System Description and Configuration
1 System Description
The system is a compact, high-density, rack mount server system with support for one to two Intel
®
Itanium
®
2 processors and 16-GB DDR SDRAM memory. The scaleable architecture of the system
supports Symmetric Multiprocessing (SMP) and a variety of operating systems.
The server system supports several high availability features, such as hot-swap and redundant
power supply modules, hot-swap and redundant fans for cooling, and hot-swap hard drives.
Serviceability features include LED indicators for system, reset, hard drive and LAN status and
system identification. Additional features include video connector and dual USB ports accessible
from the front panel. Color-coded parts differentiate hot-swap and non-hot-swap serviceable
components.

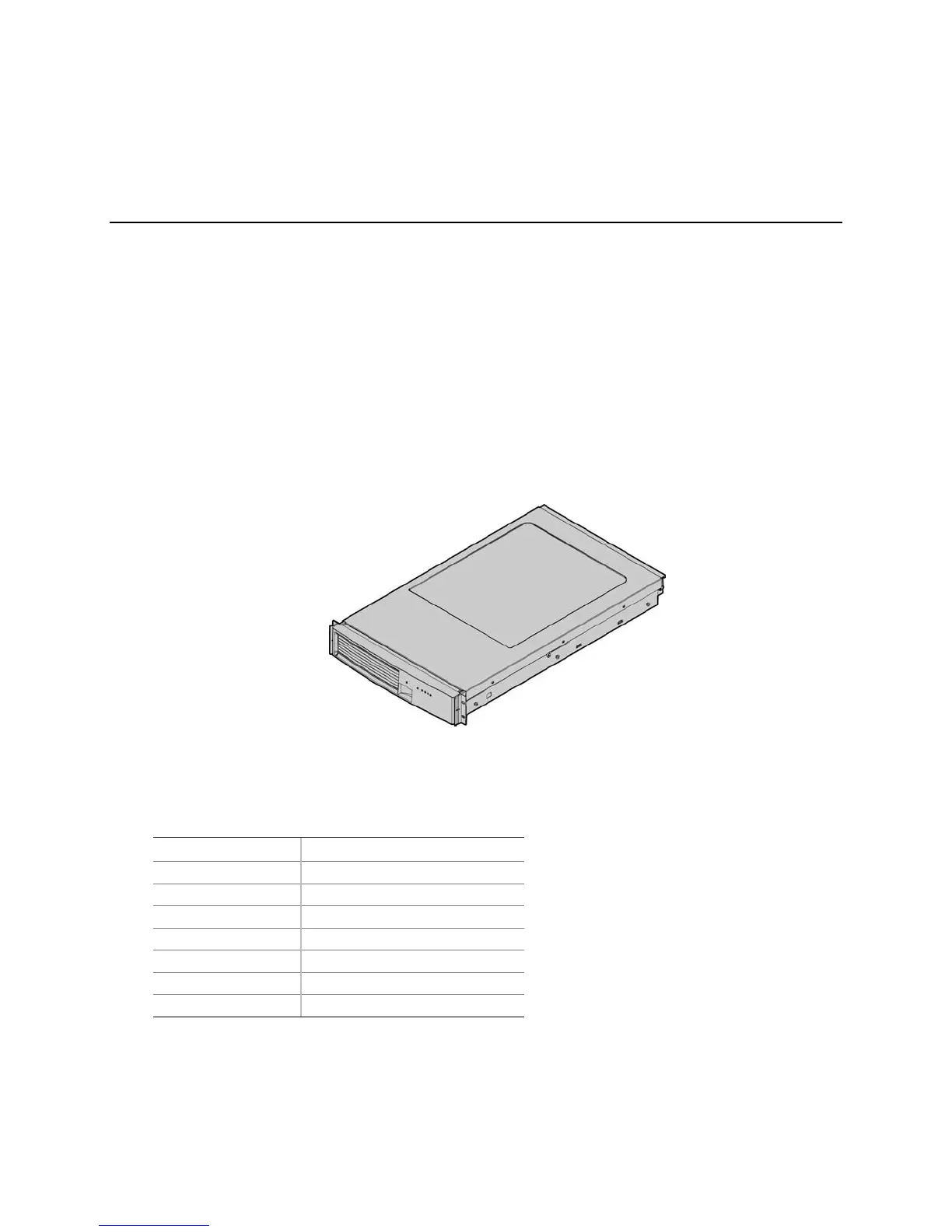

Figure 1 provides a diagram of the front and top of the server system, with the chassis cover in place.
Figure 1. Server System Front
Table 2 provides the system dimensions and weight.
Table 1. Physical Specifications
Specification Value
Height 3.4 inches (87 mm)
Width 17.7 inches (449 mm)
Depth 29.4 inches (747 mm)
Front clearance 3 inches (76 mm)
Side clearance 1 inch (25 mm)
Rear clearance 6 inches (152 mm)
Weight (note 1) 65 lbs (30 kg)
Note 1. The system weight listed above is an estimate for a fully configured system and will vary depending on the number
of peripheral devices and add-in cards as well as the number of processors and DIMMs installed in the system.
Table 2 provides a list and brief description of the features of the server system.
