FrameMaker Ver.5.5E(PC) DIS/REASSEMBLY, ADJUSTMENT FOR Di152/Di183
01.09.03
D-26

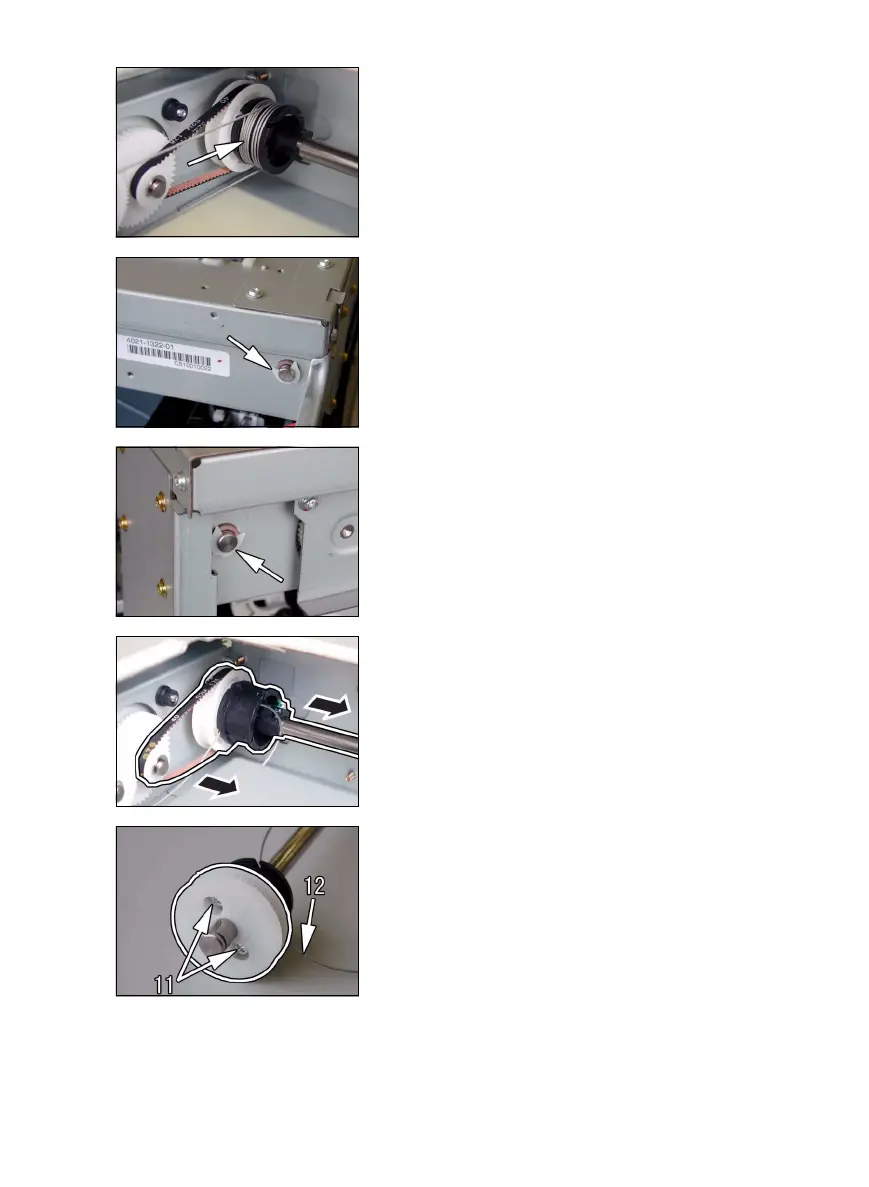

7. Remove the rear cable from the cable pulley.
8. Snap off one C-ring from the front side of the pul-
ley assy.
9. Snap off one C-ring from the rear side of the pul-
ley assy.
10. Remove the belt and the pulley assy.
11. Remove two screws and the pulley.
12. Remove the rear cable.
To Next Page
