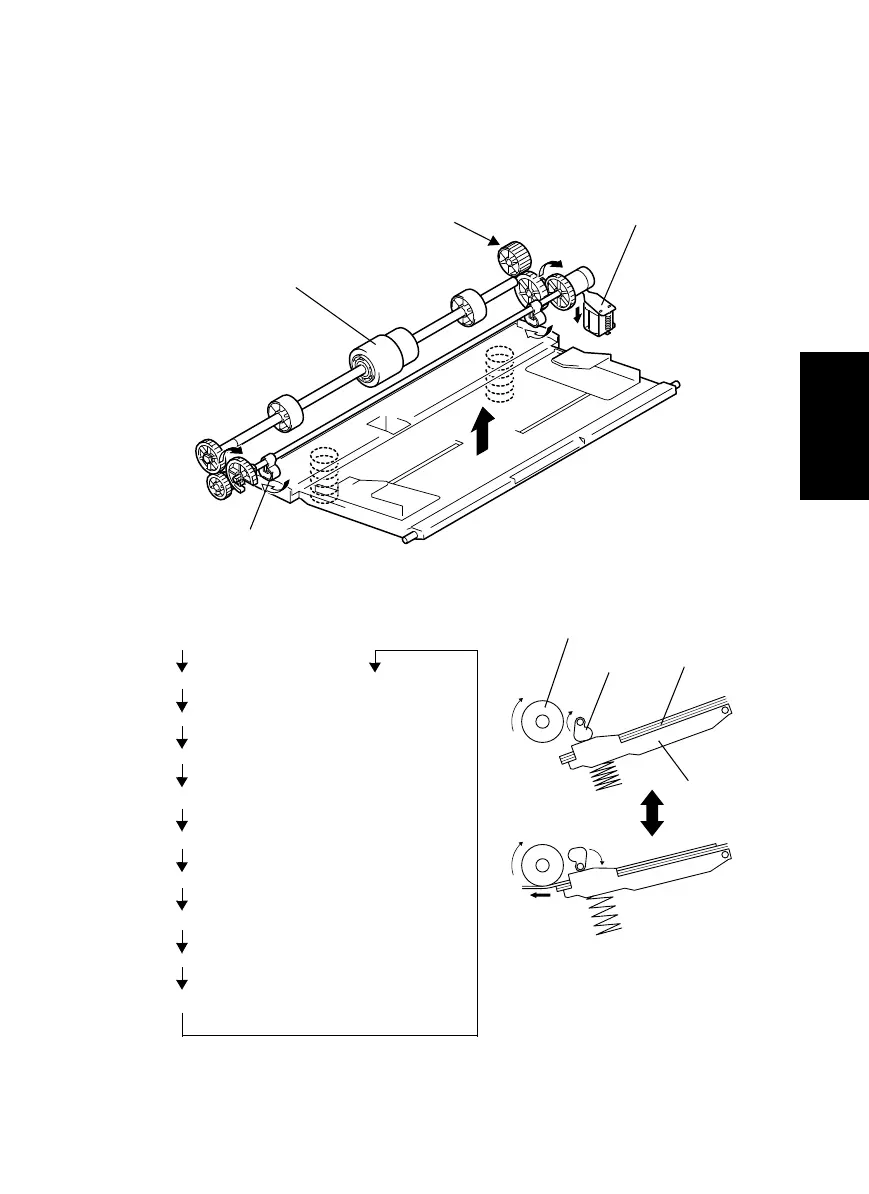

15-2. Paper Take-Up Mechanism
• The Paper Lifting Plate is raised to press the paper stack on the tray up against the Paper
Take-Up Roll.
• The Paper Lifting Plate is raised and lowered in time with a paper take-up sequence.
• The ascent and descent motion of the Paper Lifting Plate is accomplished when the drive
from the motor is transmitted to the cam through a solenoid to rotate the cam.
4021M033AA
Drive from Main Motor
Paper Take-Up Roll
Multiple Bypass Solenoid SL21
Cam
<Ascent/Descent Motion>
Main Motor (M1) is energized.
Paper Take-Up Roll is turned.
Multiple Bypass Solenoid (SL21): Energized
Cam: Rotates
Tray: Raised
Multiple Bypass Solenoid (SL21): Deenergized
Paper take-up
Multiple Bypass Solenoid (SL21): Energized
Cam: Rotates
Tray: Lowered
Multiple Bypass Solenoid (SL21): Deenergized
4021M059AA
Cam
Paper Take-Up Roll
Paper
Tray
To Next Page
