9. PC DRUM CHARGING SECTION

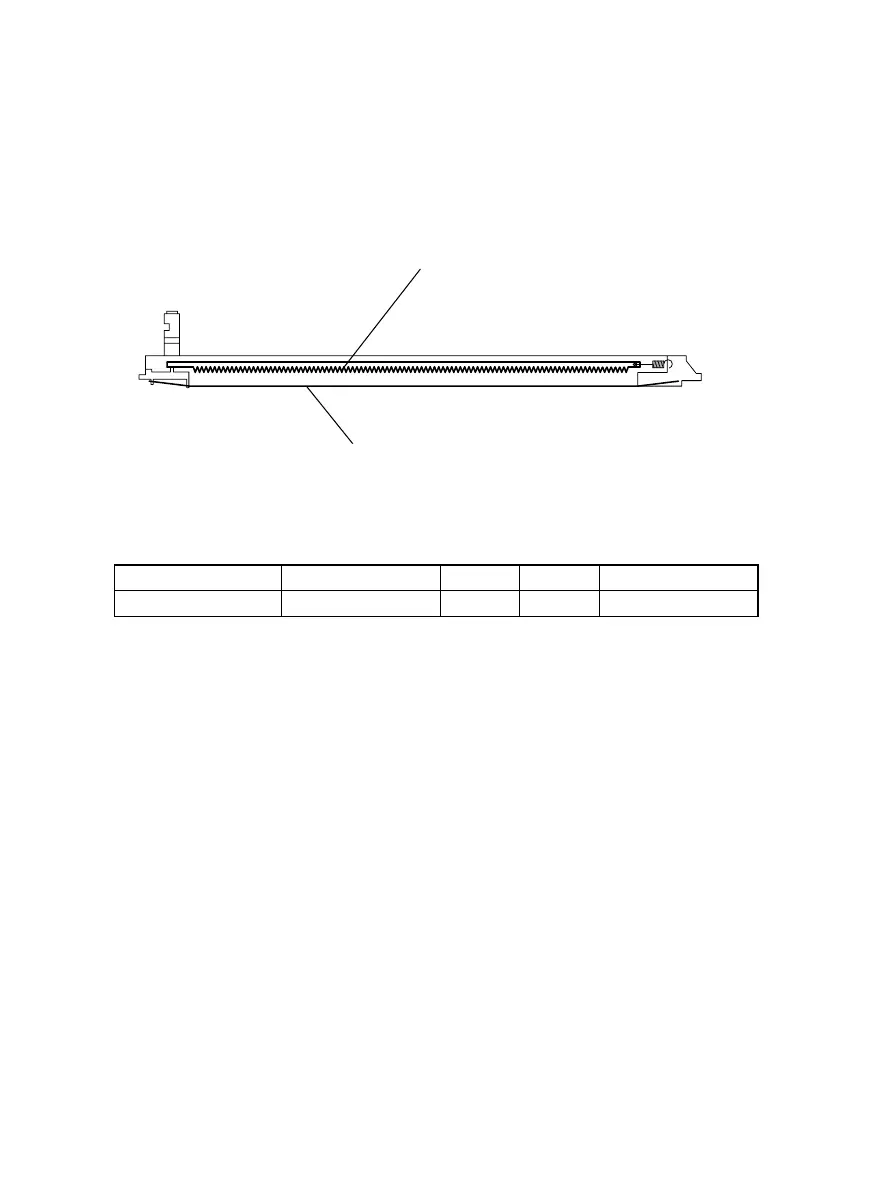

• The PC Drum Charge Corona has a scorotron grid to deposit a charge evenly across the
surface of the PC Drum.
• The corona unit has a comb electrode that discharges only toward the grid mesh, thus
minimizing the amount of ozone produced.
Elevtrical Component Control Signal ON OFF Wiring Diagram
HV1 PWB-A PJ8A-8 L H 5-C
4021M011AA
Comb Electrobe
Grid Mesh
