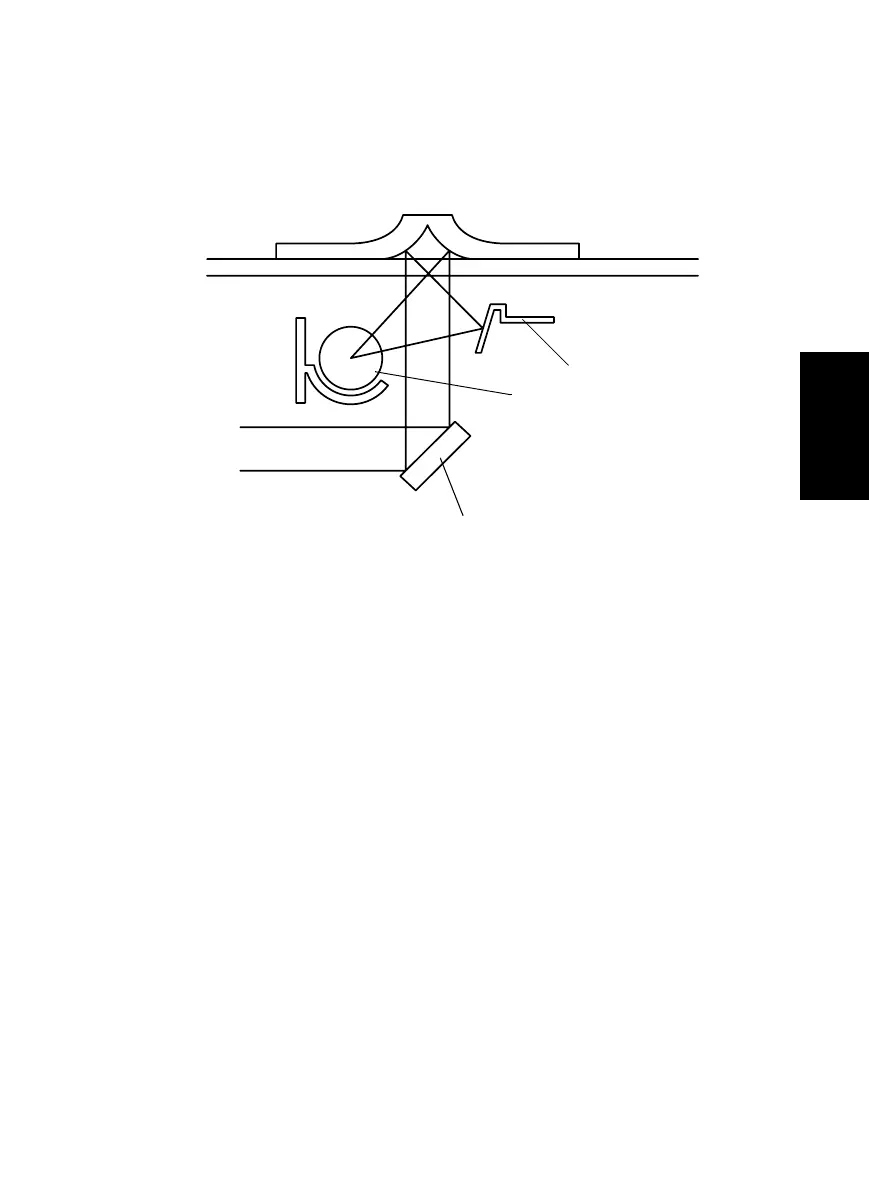

10-2. Exposure Components Section
1. Auxiliary Reflector
When a book or other bound original is copied, the paper in the area near the binding
generally fails to come flush against the glass, so that the copy of these areas is gener-
ally too dark. The Auxiliary Reflector reduces this problem by reflecting light from the
Exposure Lamp onto these areas of the original.
2. Exposure Lamp LA2
A fluorescent lamp is used to illuminate the original.
3. 1st Mirror
Directs the light reflected off the original to the 2nd Mirror.
4021M013AA
3
1
2
