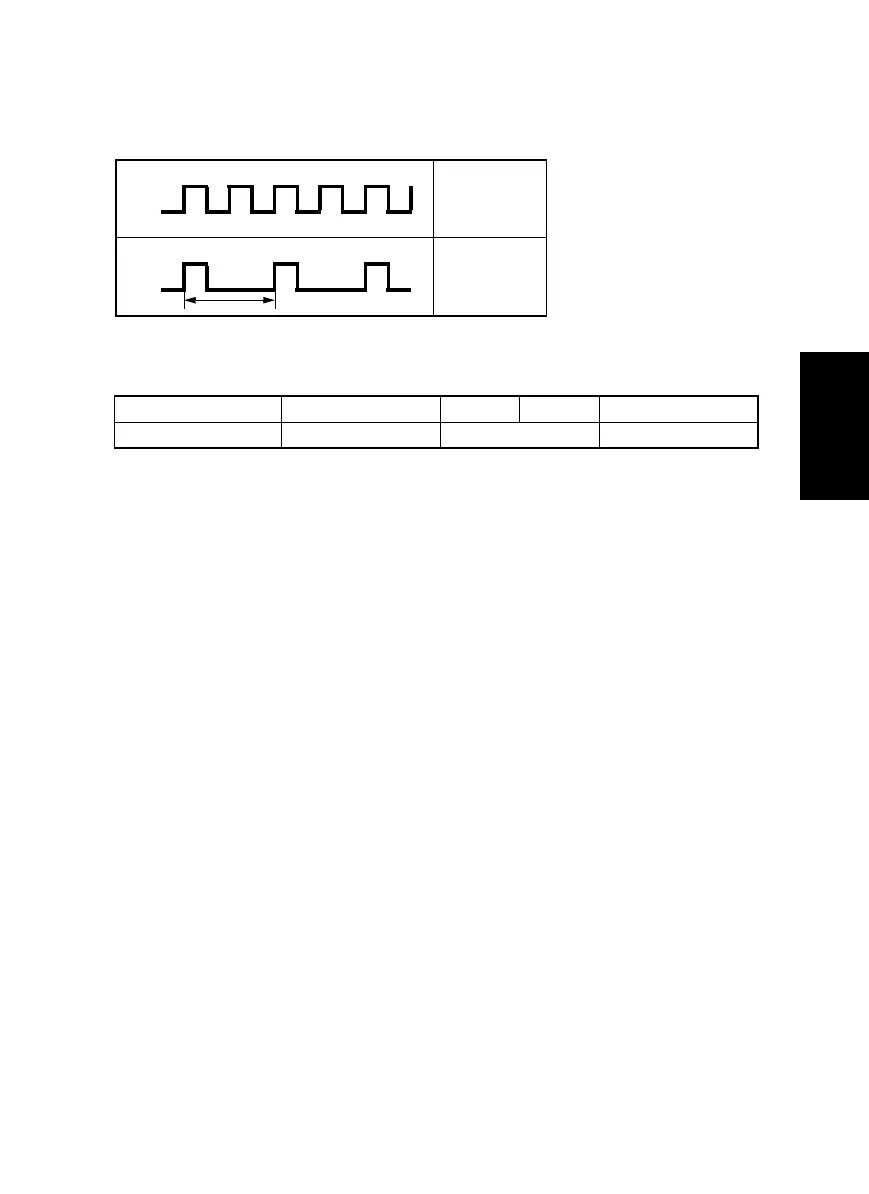

10-4. Scanner Motor Drive Control
• The speed at which the Scanner is moved is controlled by varying the period of the motor
drive pulse that is timed with the reference clock.
• The distance over which the Scanner travels is controlled by the number of motor drive
pulses that correspond to each paper size and zoom ratio.
Elevtrical Component Control Signal ON OFF Wiring Diagram
M5 PWB-C JP5C-1 to 4 Pulse output 11-B
High Speed
Low Speed
Period
To Next Page
