Develop D 1531iD - 8 Pc Drum Section; PC Drum Drive Mechanism

FrameMaker Ver5.5E(PC) Di152/Di183 MECHANICAL/ELECTRICAL
01.09.05
M-10

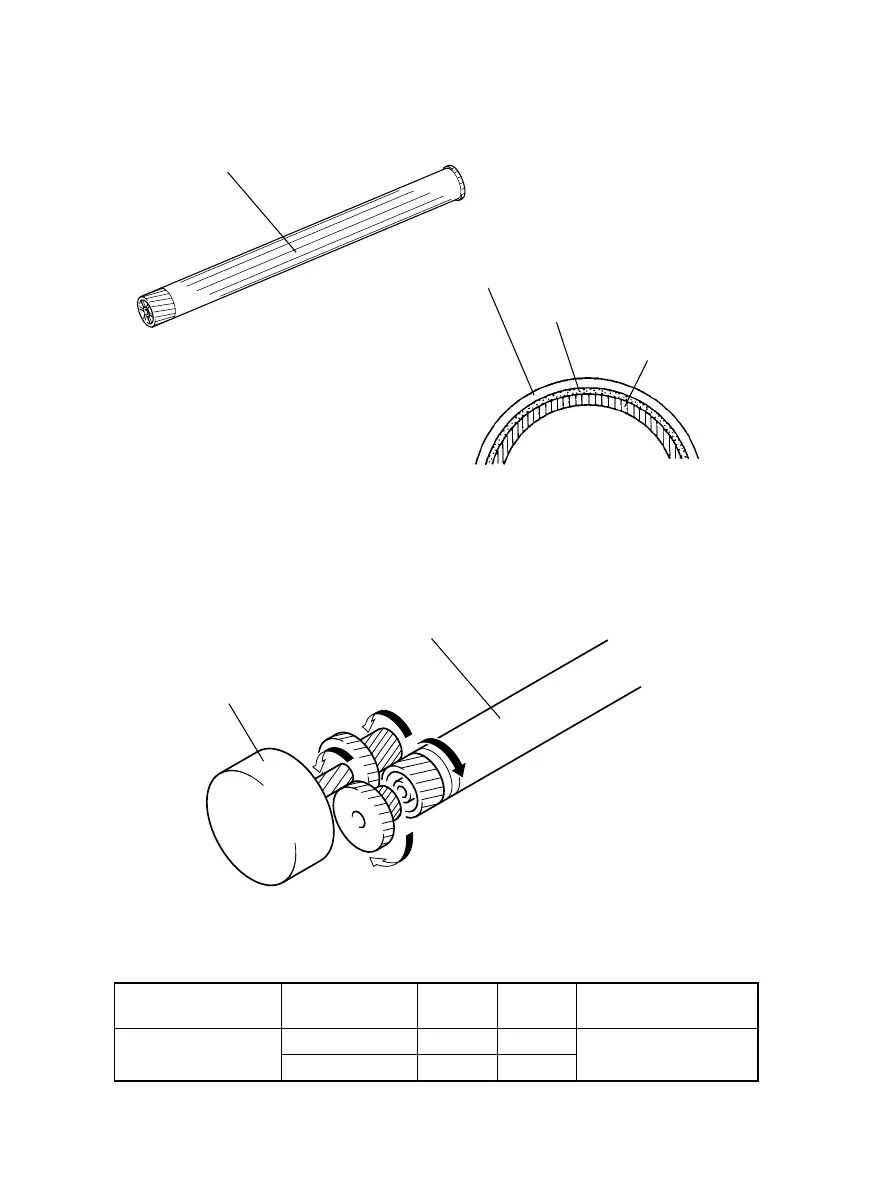

8. PC DRUM SECTION
• The PC Drum consists of layers of semiconductive materials placed on an aluminum
alloy base, on which an electrostatic latent image is formed.
8-1. PC Drum Drive Mechanism
• The PC Drum is rotated by drive from a motor.
Elevtrical Component Control Signal
Forward
Rotation
OFF Wiring Diagram
M1
PWB-A PJ7A-5 L H
17-G
PWB-A PJ7A-7 H H
1139M007AA
PC Drum
Aluminum Base
Charge Generation Layer
Charge Transport Layer
(PC Drum Cross-Section)
1167M007AA
Main Motor M1
4021M009AA
PC Drum
