FrameMaker Ver5.5E(PC) Di152/Di183 MECHANICAL/ELECTRICAL
01.09.05
M-27

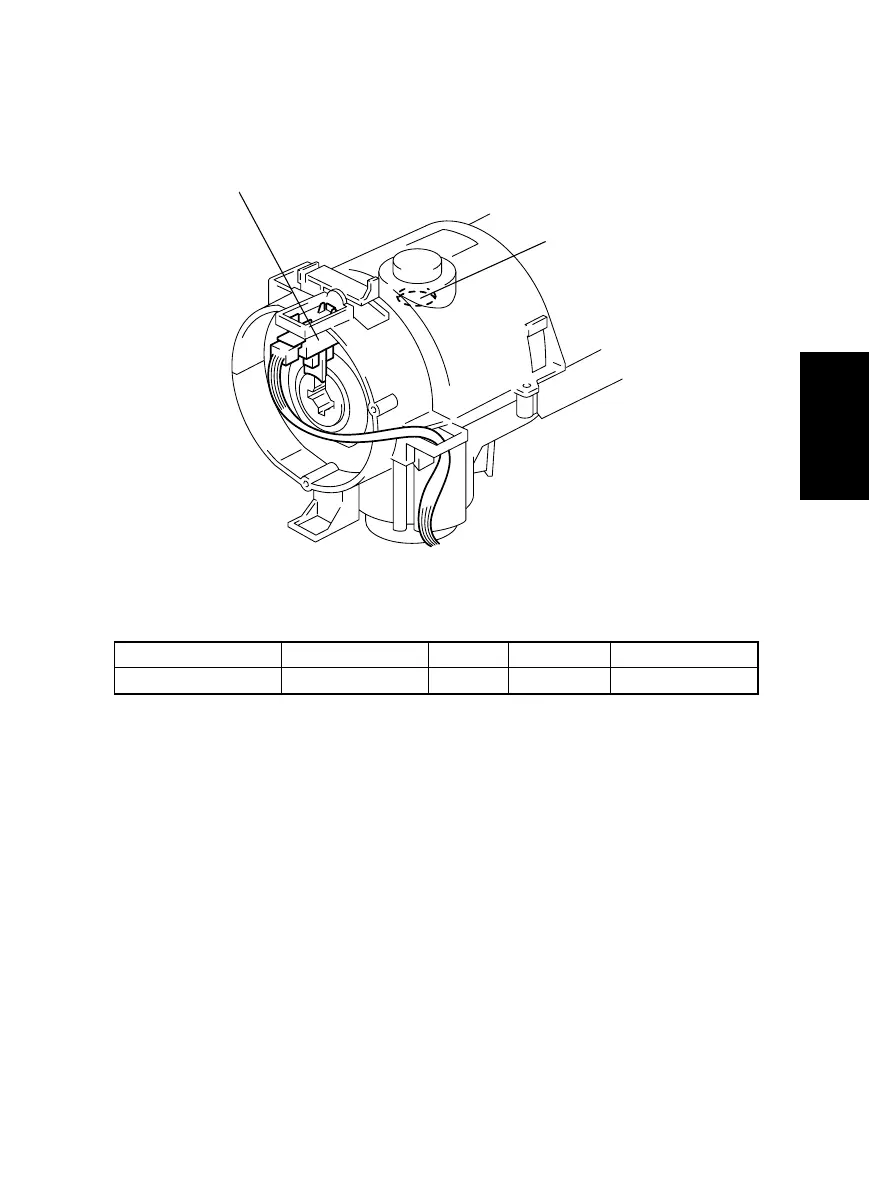

12-8. Toner Bottle Home Position Detection Mechanism
• The Toner Bottle is at its home position (where it remains stationary) when its Toner Sup-
ply Port faces up. This position is detected by a sensor.
Elevtrical Component Control Signal Activated Deactivated Wiring Diagram
PC7 PWB-A PJ19A-10 L H 4-B
4021M024AA
Toner Supply Port
Toner Bottle Home Position Sensor PC7
To Next Page
