15. MULTIPLE BYPASS SECTION

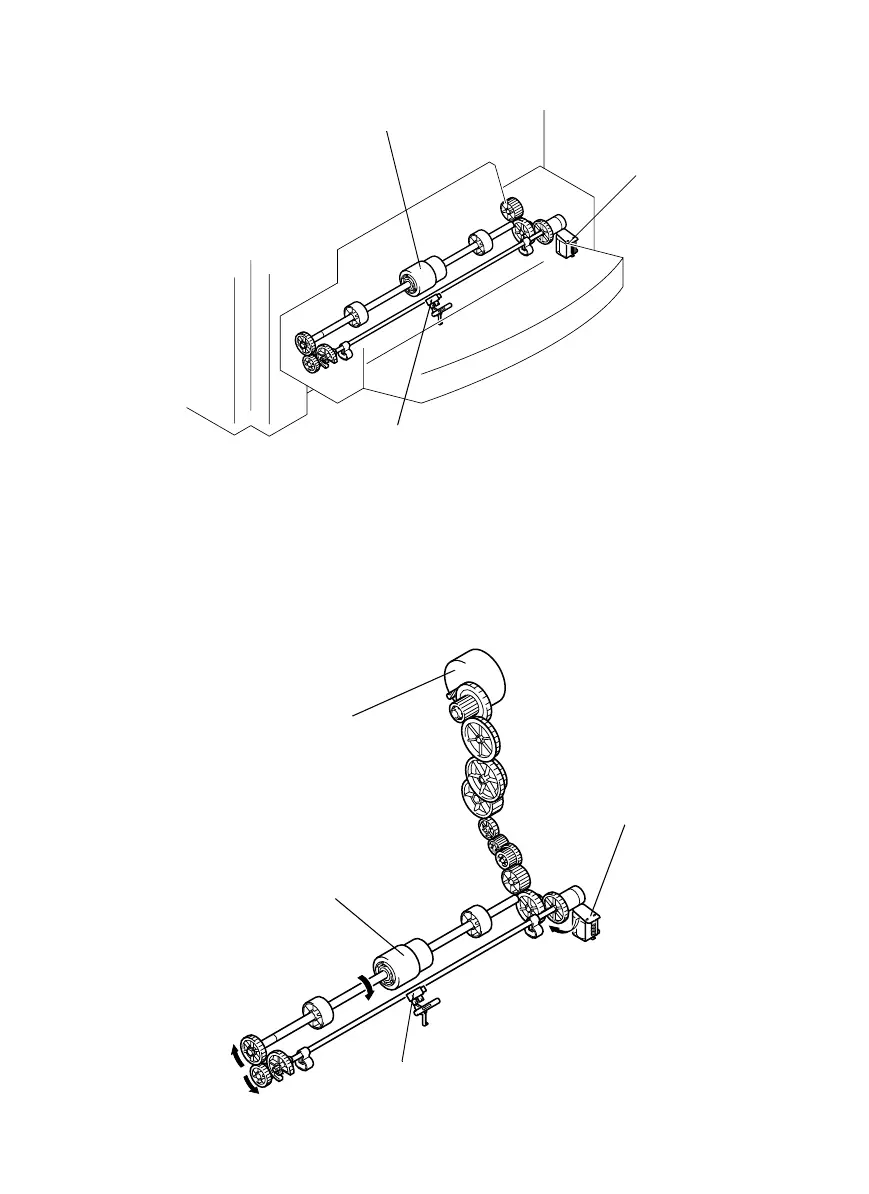

15-1. Paper Take Up Drive Mechanism
• Drive for paper take-up from the Multiple Bypass is transmitted from a motor via the Sole-
noid.
1. Paper Take-Up Roll
2. Multiple Bypass Solenoid SL21
3. Multiple Bypass Paper Empty Sensor
PC21
4021M031AA
1
3
2
4021M032AA
Main Motor M1
Paper Take-Up Roll
Multiple Bypass Solenoid SL21
Multiple Bypass Paper Empty Sensor PC21
