2. SERVICE INSTRUCTIONS

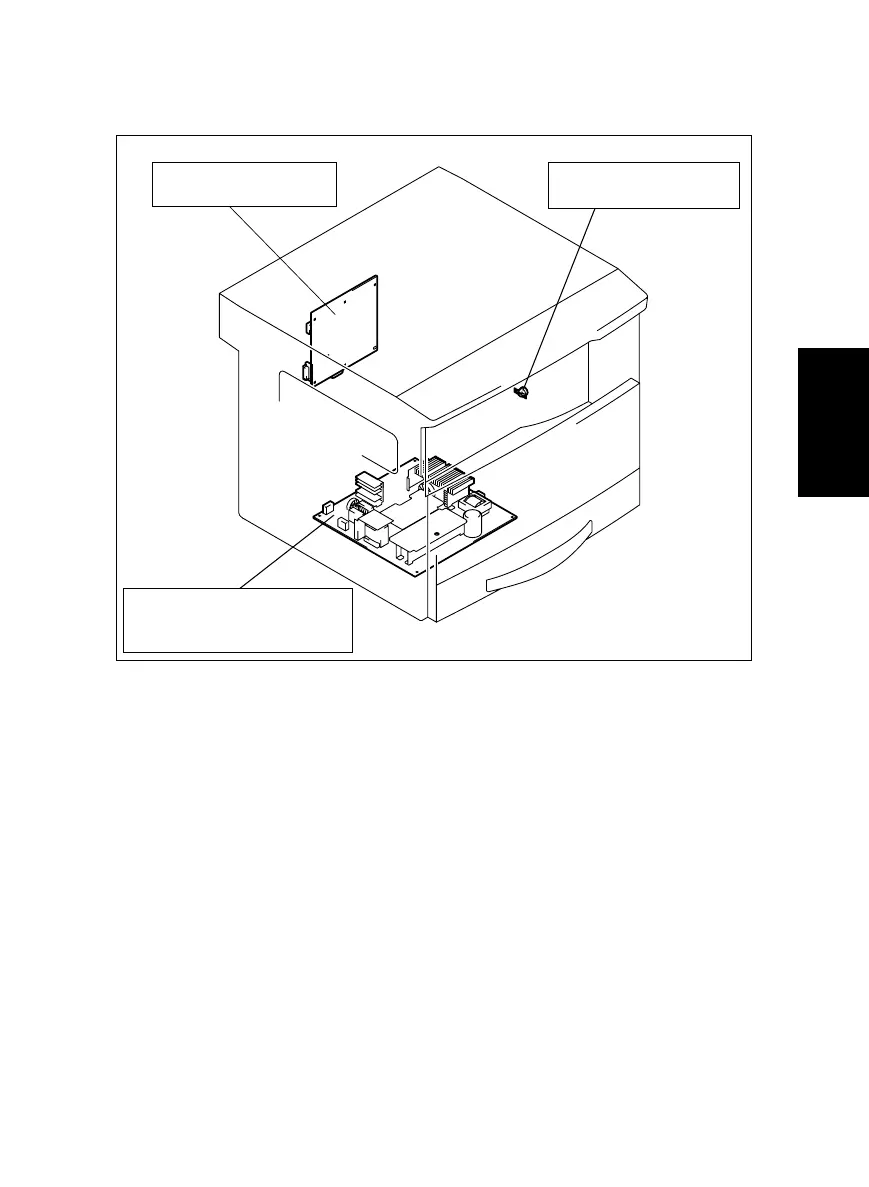

2-1. IDENTIFICATION OF FUSES AND CIRCUIT BREAKERS
Control Board (PWB-C)
125 V 3 A
DC Power Supply (PU1)
100 V system 125 V 15 A (F2)
200 V system 250 V 6.3 A (F2)
4022D028AA
Thermoswitch 1 (TS1)
250 V 7.5 A/125 V 15 A
