4-5. OTHER ADJUSTMENTS
(1) Adjustment of the Position of the Scanner and 2nd/3rd Mirrors Carriage

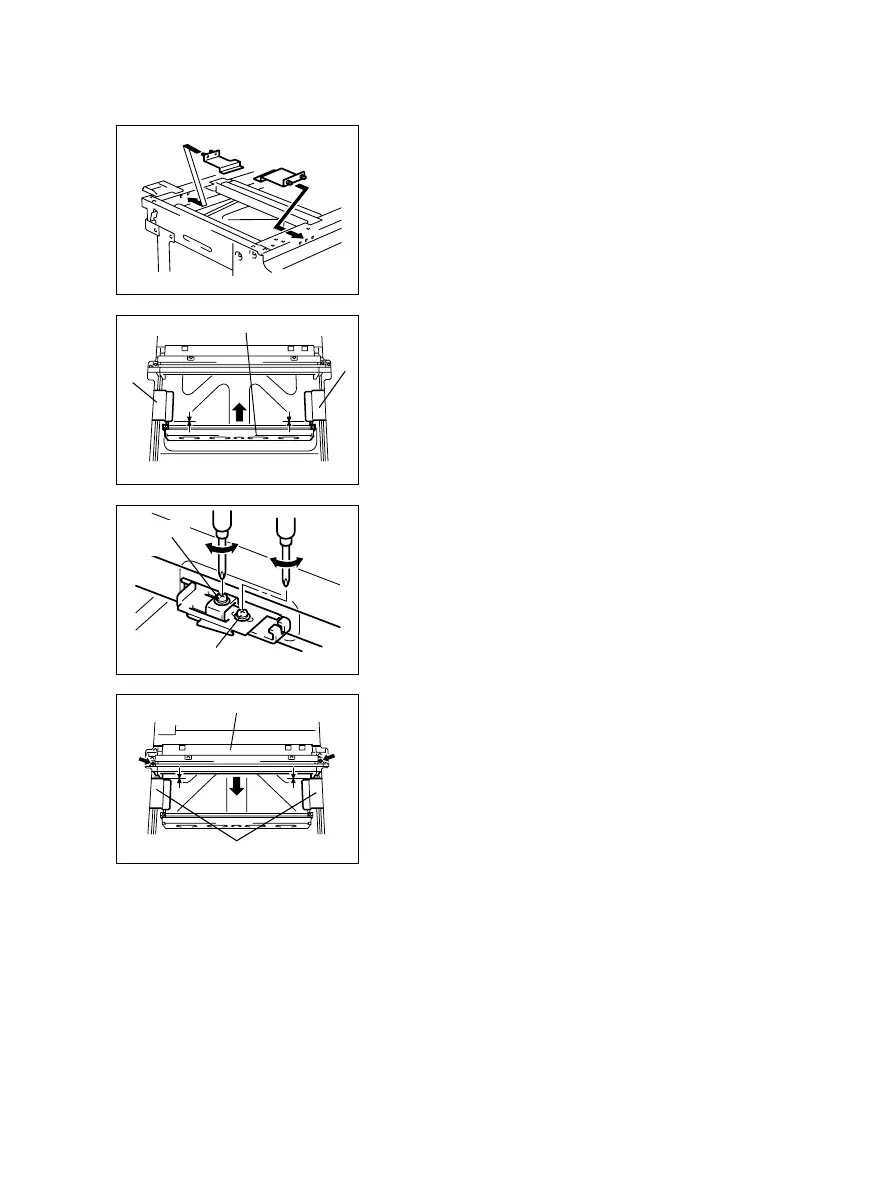

1. Fit the Scanner/Mirrors Carriage Positioning Jigs
in the space between the Scanner and the 2nd/
3rd Mirrors Carriage.
4022D013AA
Rear
2. Press the 2nd/3rd Mirrors Carriage tightly up
against the jigs.
4022D014AA
Rear
2nd/3rd Mirrors Carriage
Jig
Jig
3. Loosen the set screw of the cable holding plate
and turn the adjusting screw as necessary to
eliminate clearance between the 2nd/3rd Mirrors
Carriage and the Scanner/Mirrors Carriage Posi-
tioning Jigs.
4022D015AB
Adjusting
Screw
Fixing Screw
4. Press the Scanner tightly up against the jigs and
tighten the set screw of the cable holding plate to
the specified torque.
4022D016AA
Scanner
Jigs
