20-2. Tray-Full Detecting Mechanism
• Tray-full detection is valid only when paper is fed into the Job Tray (Job Tray in the low-
ered position).
• A tray-full condition is detected when the sensor is blocked for a continuous given period
of time (approx. 20 sec.).
20-3. Job Tray Paper Detecting Mechanism
• If paper is fed into the Job Tray when the machine is in a mode in which paper is fed into
the Exit Tray (Job Tray in the raise position), the indicator lamp on the Paper Detecting
Board lights to warn the user that there is paper in the Job Tray.
• A sensor is provided for detecting paper in the Job Tray.
Elevtrical Component Control Signal Activated Deactivated Wiring Diagram
PC34 PWB-A PJ4A-9 L H 16-C
Elevtrical Component Control Signal Activated Deactivated Wiring Diagram
PC35 PWB-A PJ3A-3 L H 18-A
4021M049AA

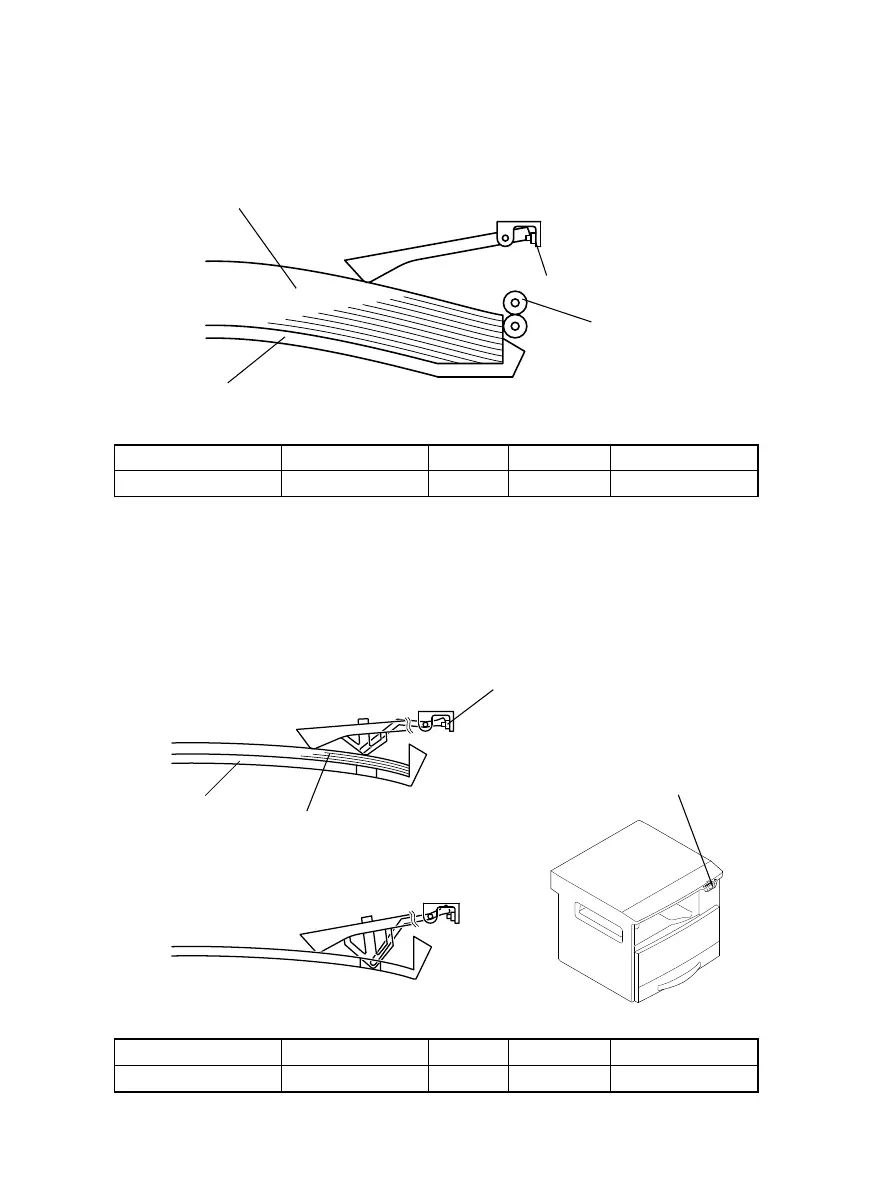

Exit Roller
Job Tray
Paper
Full Detecting Sensor PC34
4021M051AA
4021M050AA
4021M052AA
Paper Detecting
Board PWB-B
Paper Empty Sensor PC35
Job Tray
Paper
<When Paper is not Present>
<When Paper is Present>
