14. MANUAL BYPASS SECTION
14-1. Paper Take Up Drive Mechanism
• Drive for paper take-up from the Manual Bypass is transmitted from a motor via the Sole-
noid.
14-2. Paper Detection Mechanism
• The Sensor detects a sheet of paper on the Manual Bypass.

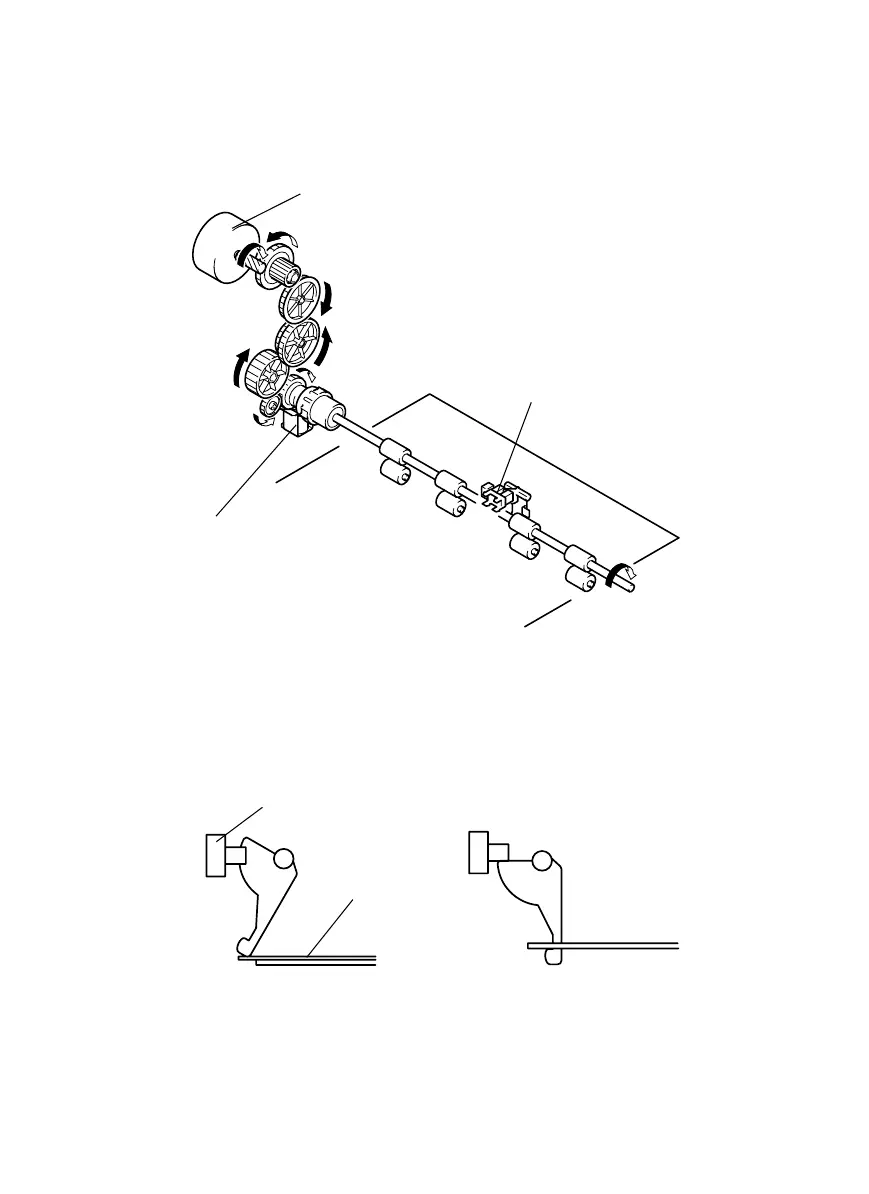

4021M028AA
Main Motor M1
Manual Bypass Solenoid SL2
Manual Feed Paper Sensor PC2
4021M029AA4021M061AA
<When Paper is not Present><When Paper is Present>
Manual Feed Paper Sensor PC2
Paper
