Develop D 1531iD - Mechanical and Electrical Systems; Copy Process and System Overview

FrameMaker Ver5.5E(PC) Di152/Di183 MECHANICAL/ELECTRICAL
01.09.05
M-1

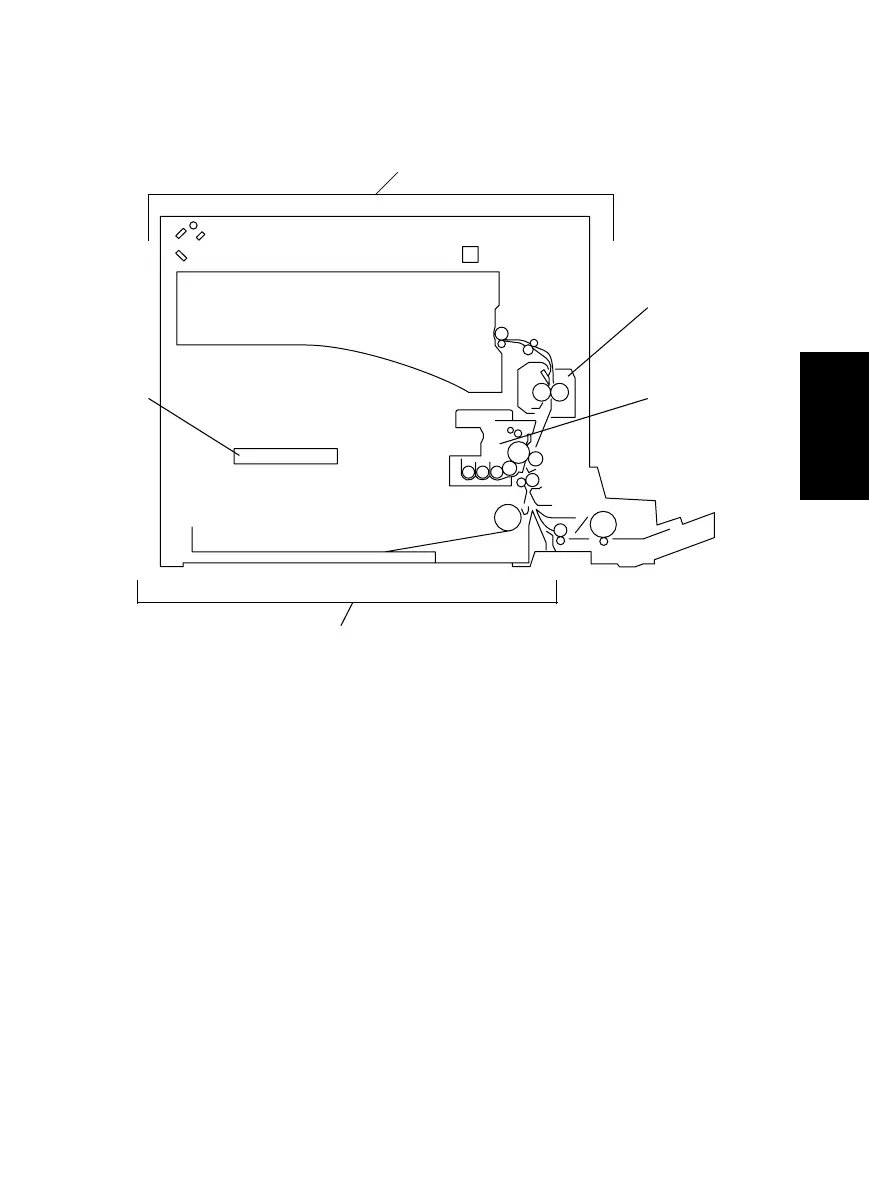

1. CROSS SECTIONAL VIEW
1. IR Section
2. Fusing Unit
3. Imaging Unit
4. Paper Take-Up/Feed Section
5. PH Section
2
1
3
4
5
