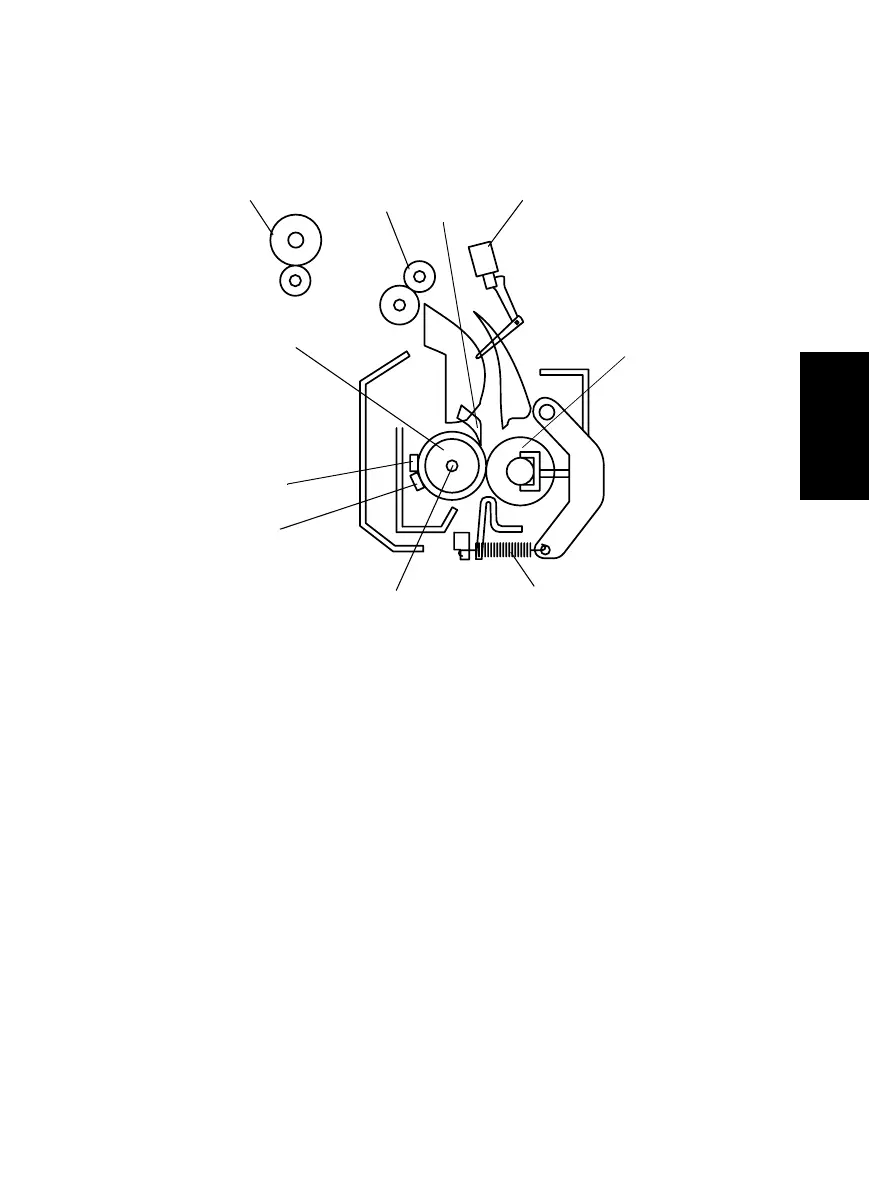

19. FUSING UNIT SECTION
• The Fusing Unit fixes permanently the developed image to the paper by applying heat
and pressure to the toner and paper.
1. Paper Exit Roller
2. Transport Roller
3. Fusing Paper Separator Finger
4. Exit Paper Sensor PC3
5. Right Fusing Roller
6. Pressure Spring
7. Fusing Heater Lamp H1
8. Thermistor TH1
9. Thermoswitch TS1
10. Left Fusing Roller
4021M041AD
2
4
1
3
5
10
9
8
7
6
