M-29

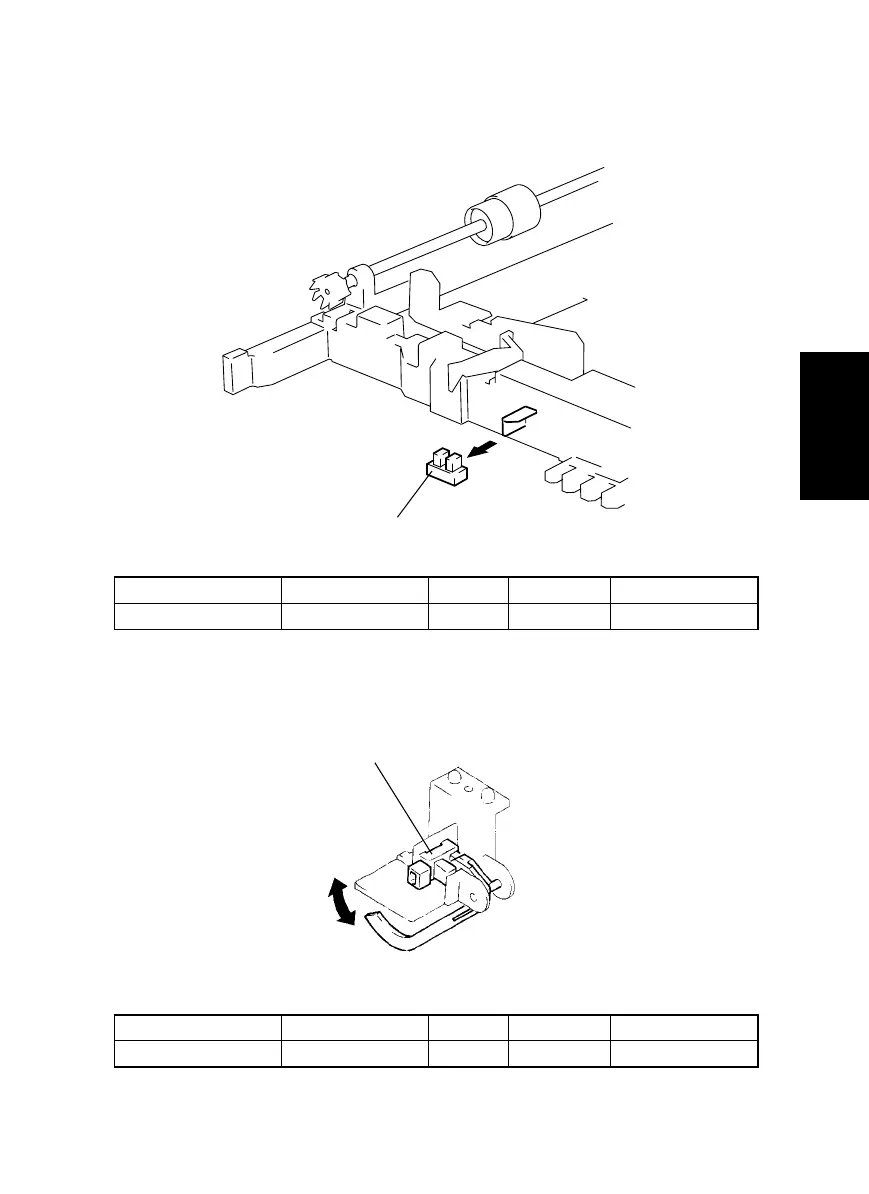

13-1. Drawer In Position Detection
• When the drawer is slid into the copier, the light blocking plate blocks the Set Sensor. The
copier then knows that the drawer has been slid in position.
13-2. Paper Empty Detection Mechanism
• The Paper Empty Sensor detects a paper-empty condition in the drawer.
Elevtrical Component Control Signal Activated Deactivated Wiring Diagram
PC5 PWB-A PJ15A-10 L H 1-I
Elevtrical Component Control Signal Activated Deactivated Wiring Diagram
PC4 PWB-A PJ6A-6 L H 1-I
4021M026AA
Drawer Set Sensor PC5
1167M073AD
Paper Empty Sensor PC4
